- Codice Macchina
- CA152
- Manufacturer
- PRIMPLAST
- Year
- 1999
- Numero di strati
- 3
- Struttura film
- ABC
- Materiali
- Stretch film LLDPE
- Larghezza film (mm)
- 2000
- Velocità (m/m)
- 550
- Rif strati estrusore 1:
- A
- Screw diam 1
- 120mm
- Description 1
- 30D . AC motor 400Kw mounted in axis. Screw extractor. 1 cartridge filter .Doteco gravimetric dosing system
- Rif strati estrusore 2:
- B
- Screw diam 2
- 120mm
- Description 2
- 30D . AC motor 200Kw.1 cartridge filter .Doteco gravimetric dosing system
- Rif strati estrusore 3:
- C
- Screw diam 3
- 90mm
- Description 3
- 30D . AC motor 110Kw mounted in axis. 1 cartridge filter.Doteco gravimetric dosing system
- Die width (mm)
- 2480mm . Feedblock Cloeren. Flat die with 7+1 thermoregulating zones with 87 points for flexible lip regulation. Lip flex range 1mm. Fumes suction unit
- Unità chill roll
- max speed 550 m/min
- Rewinder max reel diameter (mm)
- 600mm
- Descrizione avvolgitore

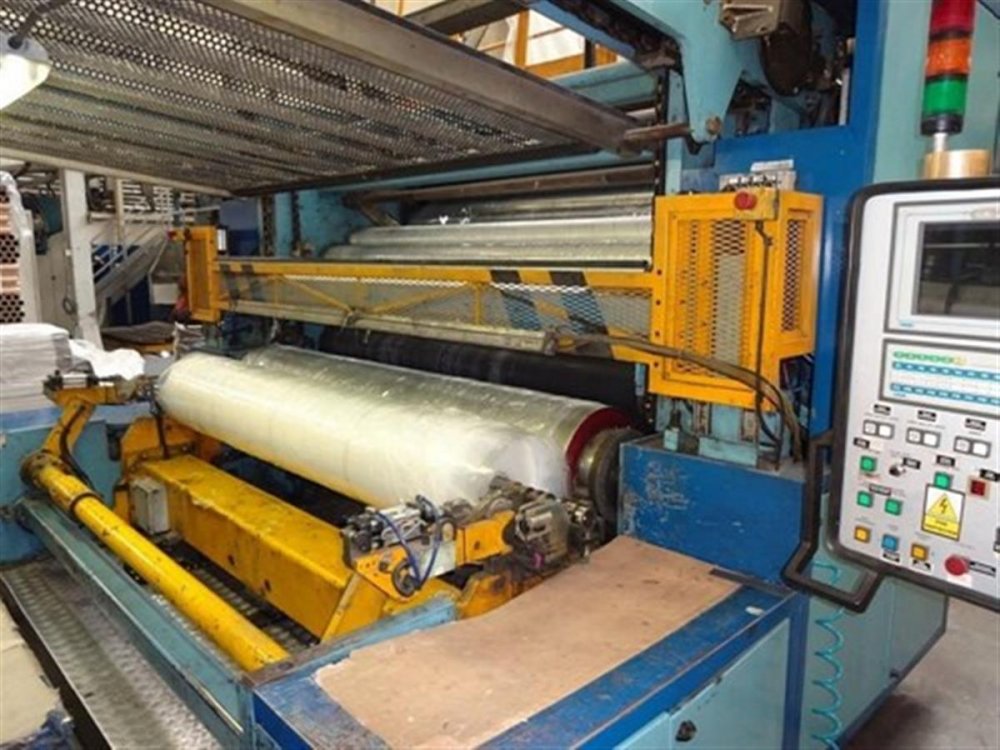

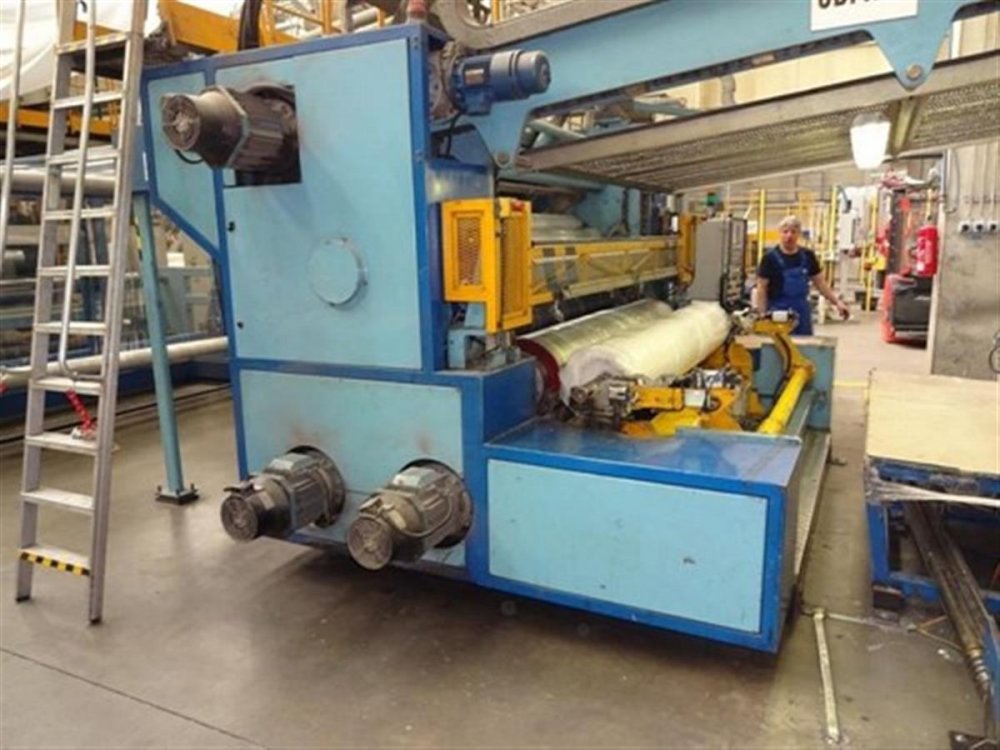

- Automatic winder mod. AVP 2.000-B .N 04+1 (spare) pneumatic shafts for cardboard cores int. diam. 76 mm with autocentering.Rolls unloading section — Automatic shafts loading/unloading.
- Ulteriori informazioni
- Inline scraps recovery extruder R120mm. Max suction speed 550m/min.AC motor 47 kw mounted in axis.Doteco gravimetric dosing system Set of pick-up manifolds and conveying pipes. Scraps grinder and air scraps separation unit with deadening jacket. Electro-aspirator unit with silencer and deadening box. Centrifugal separator for ground material. Electric fan for ground material conveyance. Deviating shutter for ground material discharge to the bags. 1 Air suction blade mod. PRIMPLAST (Vacuum box) • Plate steel body assembled on extrusion die. e Pipe set for blade/manifold connection. Motorized rear chamber adjustment Smoke collecting manifold with suction control shutter. N 0 2 electro-aspirator and connecting pipes to the manifold. N O 1 Single electroaspirator suitable for the suction on the extreme edge of the chambers. Edge keeping electrostatic device Positioning device with three axis adjustments Independent power supply with adjustment. X rays emission based thickness measurement system (SOTER]SCAN-TECH) Cooling System : Diam. 1.350 mm chill roll, equipped with a special water circulation system that guarantees a uniform surface temperature . Rubber coated roll with pneumatic control that allows the cleaning of the chill roll from extrusion fumes. Take-off complete with chromed/rubber coated roll 2 holders for thickness control unit. 1 a.c. motor reducer for chill roll driving. 1 a.c. motor reducer for take-off. Emergency push button set and accident prevention guards. Oscillating frame:2 aluminium rolls, one of which is treated. Max oscillation amplitude 100 mm on either sides.
| Codice Macchina | CA152 |
| Manufacturer | PRIMPLAST |
| Year | 1999 |
| Numero di strati | 3 |
| Struttura film | ABC |
| Materiali | Stretch film LLDPE |
| Larghezza film (mm) | 2000 |
| Velocità (m/m) | 550 |
| Rif strati estrusore 1: | A |
| Screw diam 1 | 120mm |
| Description 1 | 30D . AC motor 400Kw mounted in axis. Screw extractor. 1 cartridge filter .Doteco gravimetric dosing system |
| Rif strati estrusore 2: | B |
| Screw diam 2 | 120mm |
| Description 2 | 30D . AC motor 200Kw.1 cartridge filter .Doteco gravimetric dosing system |
| Rif strati estrusore 3: | C |
| Screw diam 3 | 90mm |
| Description 3 | 30D . AC motor 110Kw mounted in axis. 1 cartridge filter.Doteco gravimetric dosing system |
| Die width (mm) | 2480mm . Feedblock Cloeren. Flat die with 7+1 thermoregulating zones with 87 points for flexible lip regulation. Lip flex range 1mm. Fumes suction unit |
| Unità chill roll | max speed 550 m/min |
| Rewinder max reel diameter (mm) | 600mm |
| Descrizione avvolgitore | Automatic winder mod. AVP 2.000-B .N 04+1 (spare) pneumatic shafts for cardboard cores int. diam. 76 mm with autocentering.Rolls unloading section — Automatic shafts loading/unloading. |
| Ulteriori informazioni | Inline scraps recovery extruder R120mm. Max suction speed 550m/min.AC motor 47 kw mounted in axis.Doteco gravimetric dosing system Set of pick-up manifolds and conveying pipes. Scraps grinder and air scraps separation unit with deadening jacket. Electro-aspirator unit with silencer and deadening box. Centrifugal separator for ground material. Electric fan for ground material conveyance. Deviating shutter for ground material discharge to the bags. 1 Air suction blade mod. PRIMPLAST (Vacuum box) • Plate steel body assembled on extrusion die. e Pipe set for blade/manifold connection. Motorized rear chamber adjustment Smoke collecting manifold with suction control shutter. N 0 2 electro-aspirator and connecting pipes to the manifold. N O 1 Single electroaspirator suitable for the suction on the extreme edge of the chambers. Edge keeping electrostatic device Positioning device with three axis adjustments Independent power supply with adjustment. X rays emission based thickness measurement system (SOTER]SCAN-TECH) Cooling System : Diam. 1.350 mm chill roll, equipped with a special water circulation system that guarantees a uniform surface temperature . Rubber coated roll with pneumatic control that allows the cleaning of the chill roll from extrusion fumes. Take-off complete with chromed/rubber coated roll 2 holders for thickness control unit. 1 a.c. motor reducer for chill roll driving. 1 a.c. motor reducer for take-off. Emergency push button set and accident prevention guards. Oscillating frame:2 aluminium rolls, one of which is treated. Max oscillation amplitude 100 mm on either sides. |
