- Codice Macchina
- CA155
- Manufacturer
- SML
- Year
- 2015
- Numero di strati
- 5
- Struttura film
- ABCBD
- Materiali
- Stretch film LLDPE
- Larghezza film (mm)
- 2000
- Velocità (m/m)
- 600
- Output (Kg/h)
- 1200

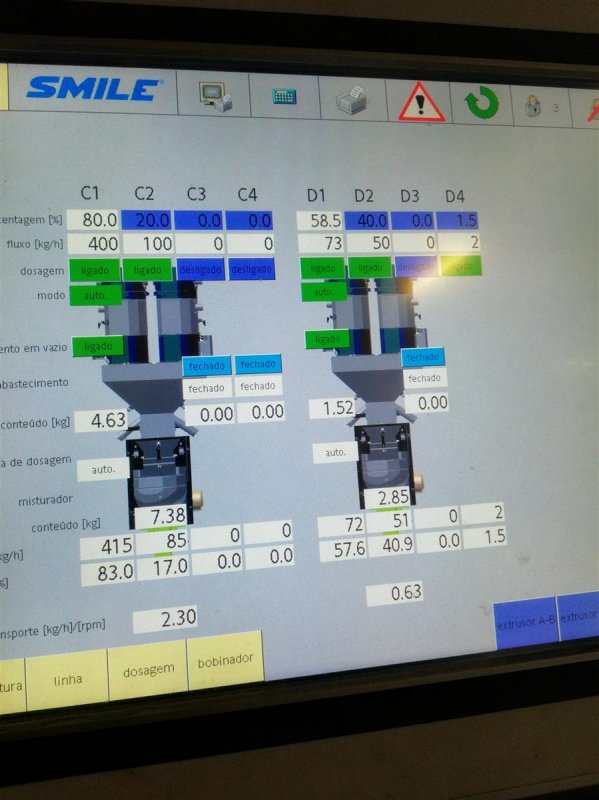

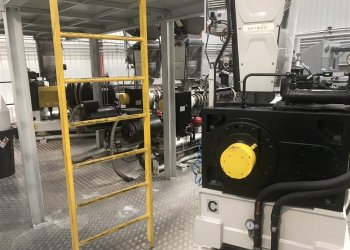

- Rif strati estrusore 1:
- A
- Screw diam 1
- 60
- Description 1
- L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer
- Rif strati estrusore 2:
- B
- Screw diam 2
- 90
- Description 2
- L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer

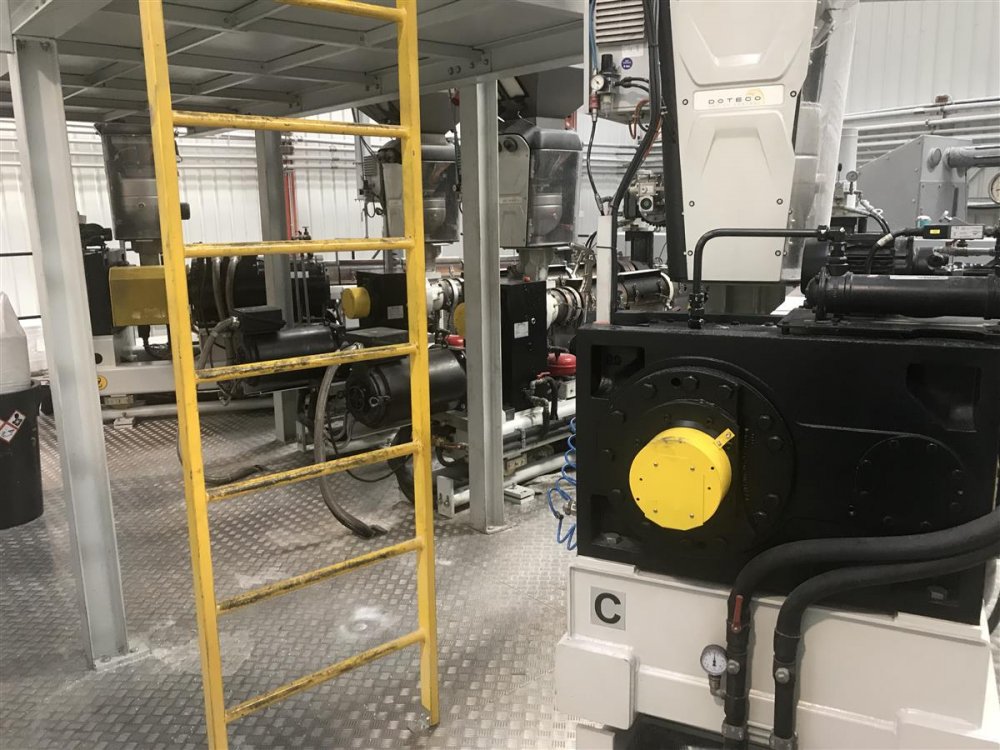

- Rif strati estrusore 3:
- C
- Screw diam 3
- 90
- Description 3
- L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer
- Rif strati estrusore 4:
- D
- Screw diam 4
- 60
- Description 4
- L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer

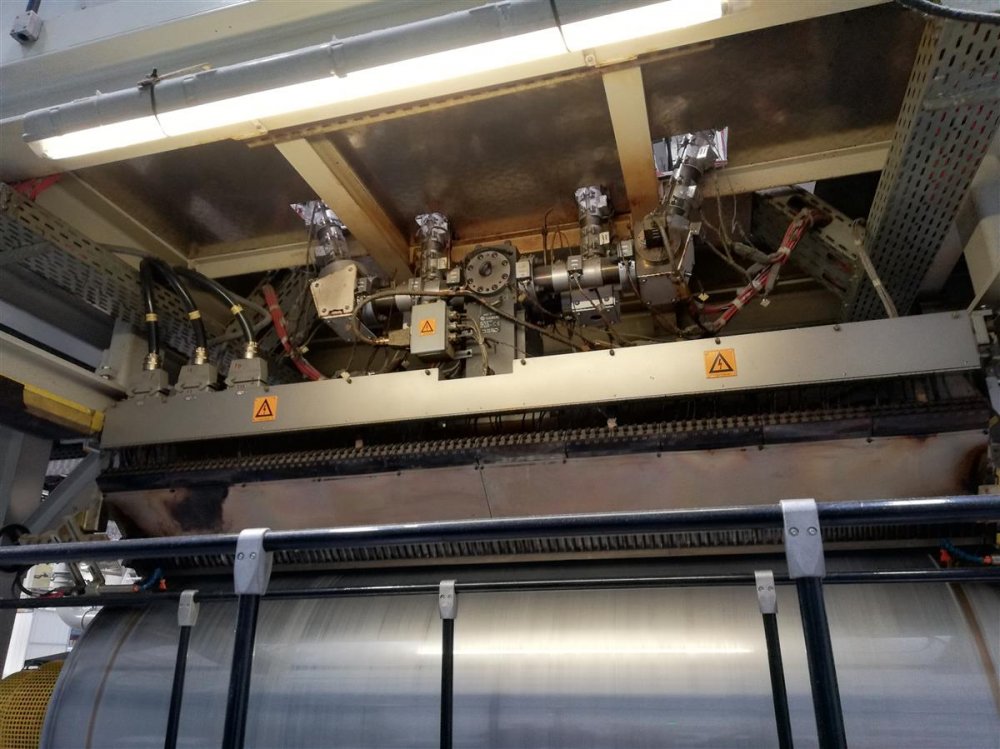

- Descrizione testa

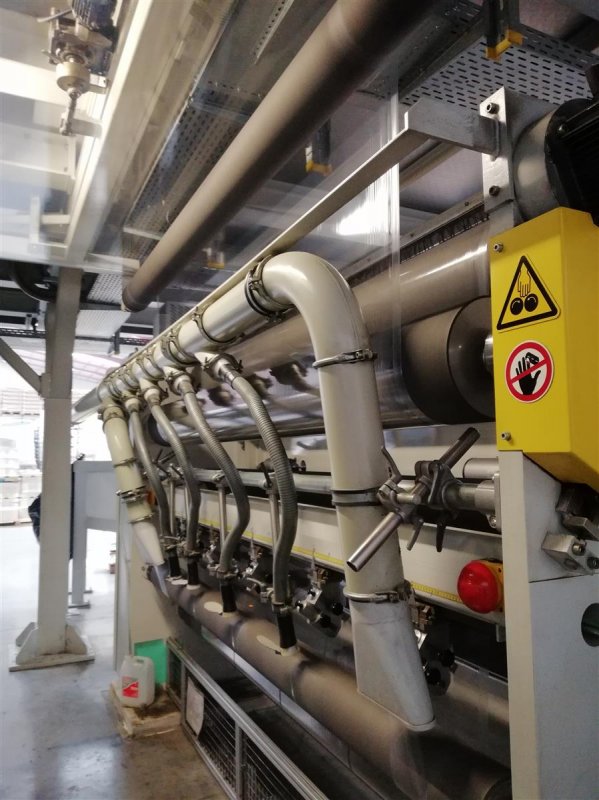

- 5 ply feedblock,Automatic die, Bivac vacuum box 2 chamber vacuum box, electrostatic edge pinning with 2 charging electrodes each with 3 fingers max 30 KV , pneumatic edge cooling
- Die width (mm)
- 2550

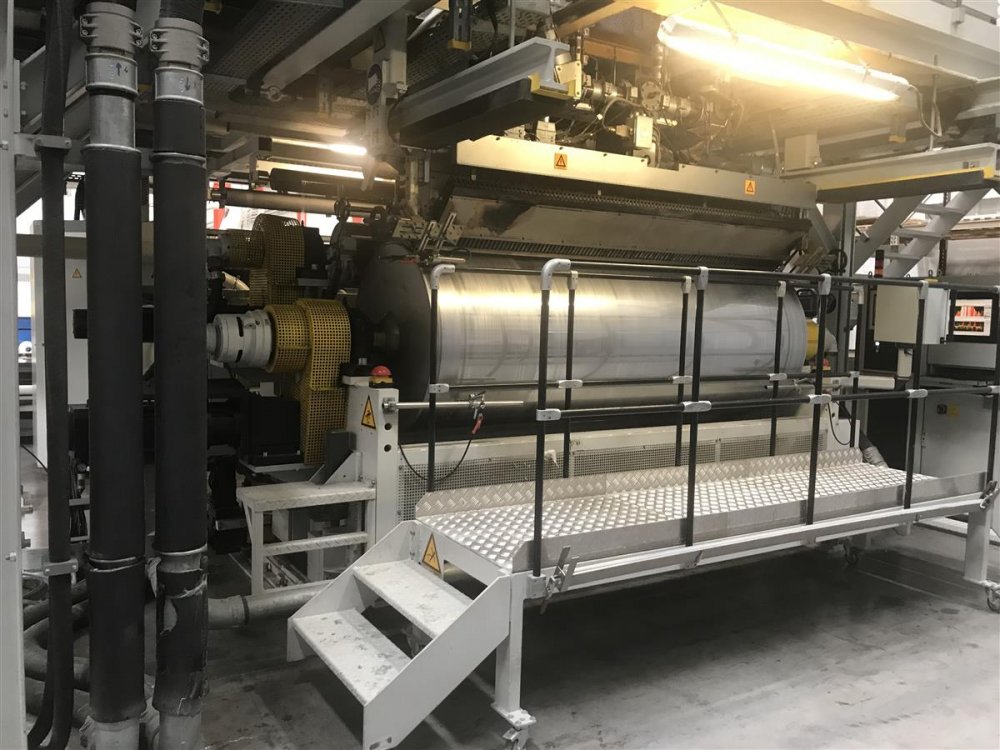

- Unità chill roll
- Chill roll unit model 1000/400; diam first chill roll 1000mm; diam second chill roll 400mm; contact lenght first chill roll 240 deg, Nip roller on second chill, antistatic bar, chill rollers drived by independent servodrives; reel width 2700mm
- Controllo di spessore
- Automatic, Die with flex lip automatic control through theral expansion bolts, distance between bolts 25,4mm, Thickness gauge Electronic

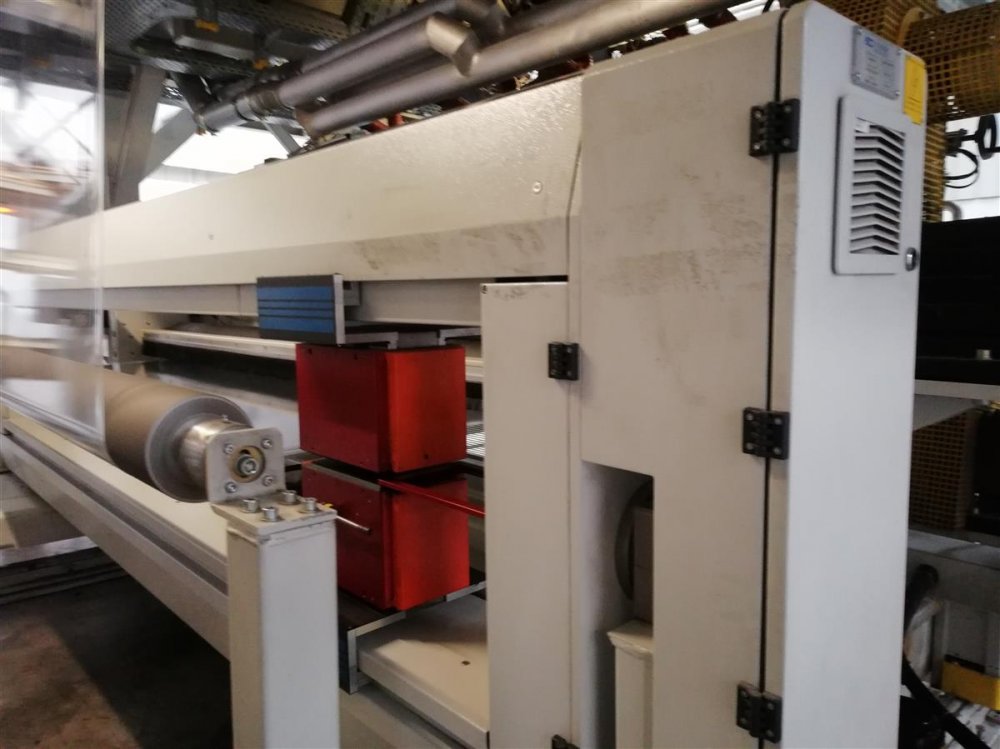

- Guida film
- Oscillating frame OF2700

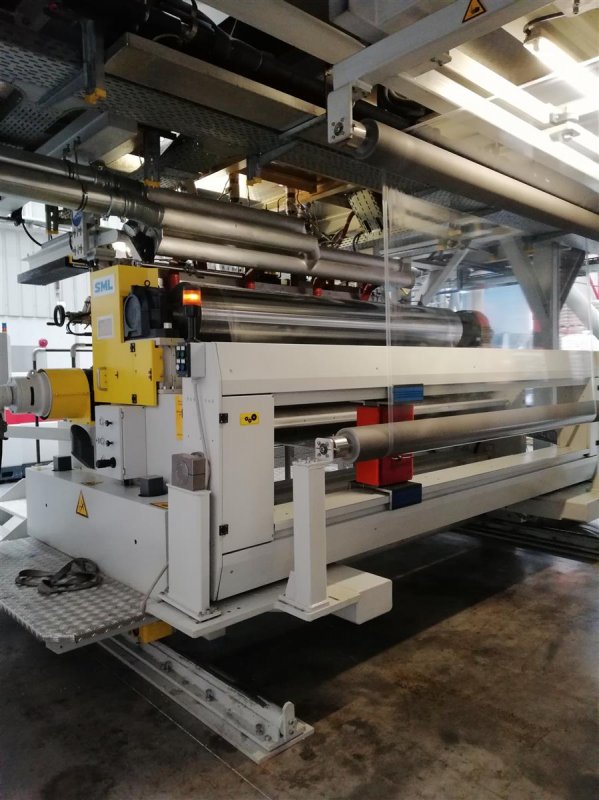

- Descrizione avvolgitore

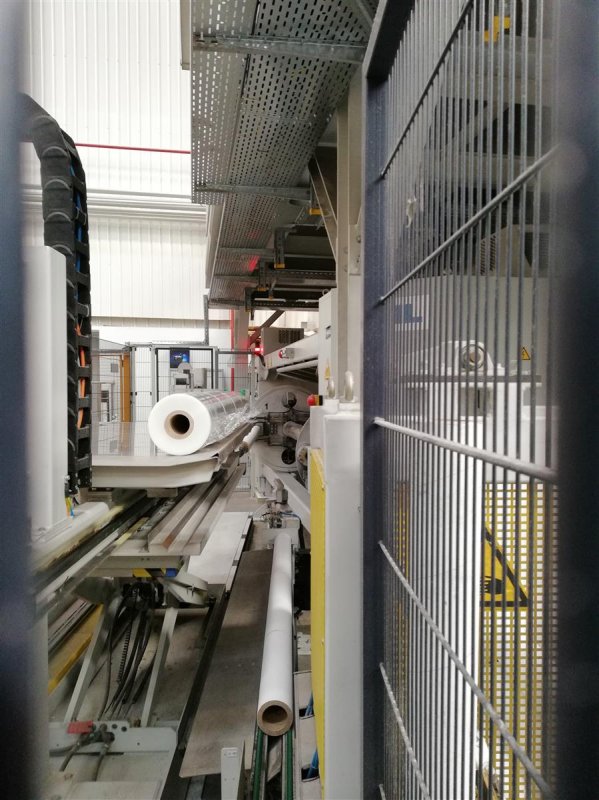

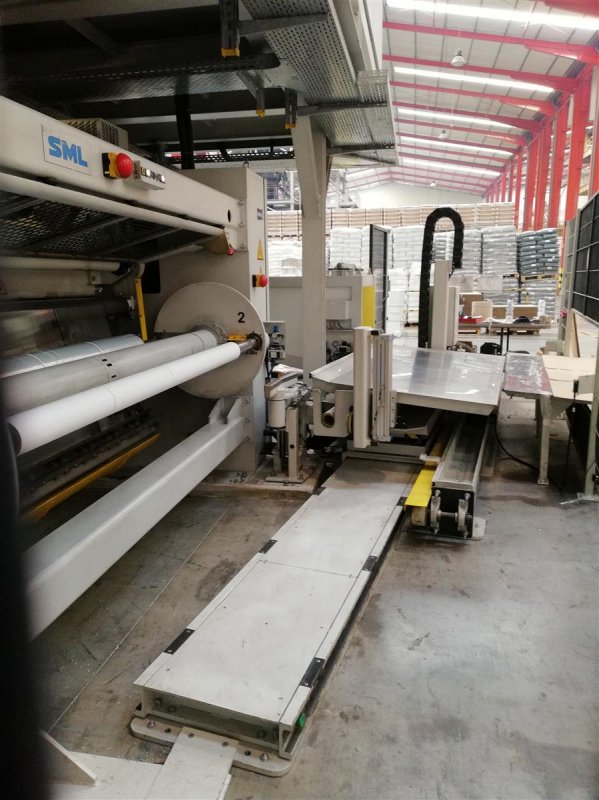

- For machine reels and jumbo reels, Turret automatic winder type W4000/Stretch/3"/6up/650, automatic reels extraction and cores loading, ultra light driven CFP contact roller, TC technology: package to enable core with thin wall thickness(3"cores 3mm and 350 grams)
- Ulteriori informazioni

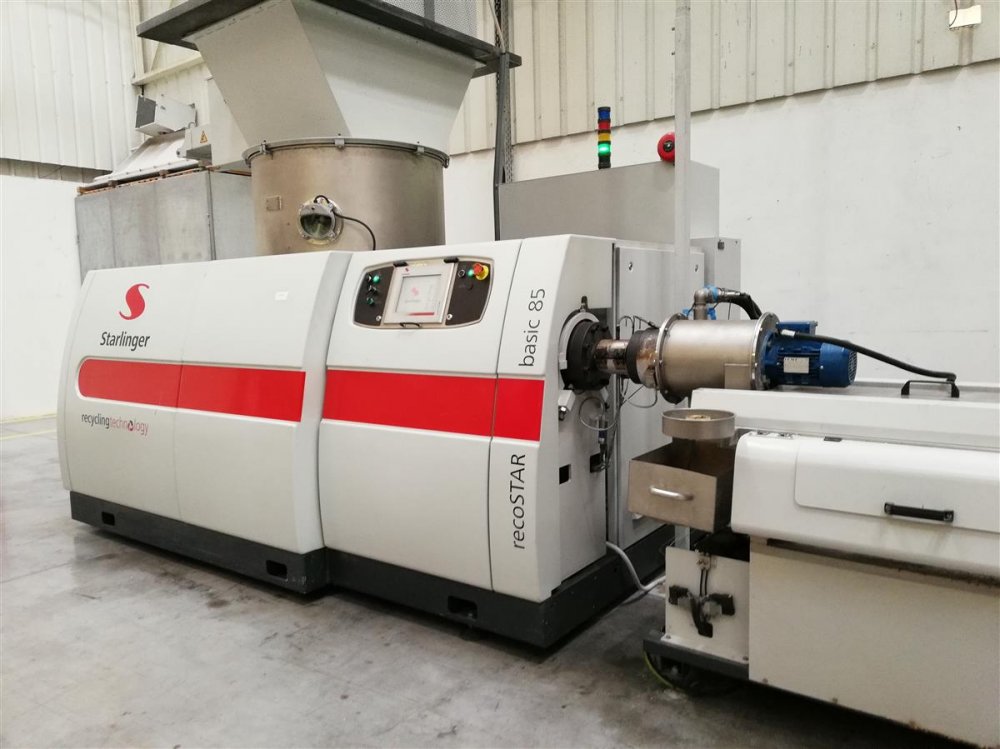

- Stretch film thicknesses from 8 my up. Complete recycling plant Make starlinger for inline recycling of edges and offline recyling of startups. Output 150-450Kg/h, bimetall barrel and nitrurated screw; water ring system for cuuling and transport; drying centrifuge, reel feeder Winder for jumbo, machine reels
| Codice Macchina | CA155 |
| Manufacturer | SML |
| Year | 2015 |
| Numero di strati | 5 |
| Struttura film | ABCBD |
| Materiali | Stretch film LLDPE |
| Larghezza film (mm) | 2000 |
| Velocità (m/m) | 600 |
| Output (Kg/h) | 1200 |
| Rif strati estrusore 1: | A |
| Screw diam 1 | 60 |
| Description 1 | L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Rif strati estrusore 2: | B |
| Screw diam 2 | 90 |
| Description 2 | L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Rif strati estrusore 3: | C |
| Screw diam 3 | 90 |
| Description 3 | L/D 33,output 600 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Rif strati estrusore 4: | D |
| Screw diam 4 | 60 |
| Description 4 | L/D 28,output 190 KG/H, water cooled AC motor, 3 components gravimetric dosing unit, hydraulic screen changer |
| Descrizione testa | 5 ply feedblock,Automatic die, Bivac vacuum box 2 chamber vacuum box, electrostatic edge pinning with 2 charging electrodes each with 3 fingers max 30 KV , pneumatic edge cooling |
| Die width (mm) | 2550 |
| Unità chill roll | Chill roll unit model 1000/400; diam first chill roll 1000mm; diam second chill roll 400mm; contact lenght first chill roll 240 deg, Nip roller on second chill, antistatic bar, chill rollers drived by independent servodrives; reel width 2700mm |
| Controllo di spessore | Automatic, Die with flex lip automatic control through theral expansion bolts, distance between bolts 25,4mm, Thickness gauge Electronic |
| Guida film | Oscillating frame OF2700 |
| Descrizione avvolgitore | For machine reels and jumbo reels, Turret automatic winder type W4000/Stretch/3"/6up/650, automatic reels extraction and cores loading, ultra light driven CFP contact roller, TC technology: package to enable core with thin wall thickness(3"cores 3mm and 350 grams) |
| Ulteriori informazioni | Stretch film thicknesses from 8 my up. Complete recycling plant Make starlinger for inline recycling of edges and offline recyling of startups. Output 150-450Kg/h, bimetall barrel and nitrurated screw; water ring system for cuuling and transport; drying centrifuge, reel feeder Winder for jumbo, machine reels |
