- Codice Macchina
- LAB259
- Manufacturer
- KPG
- Modello

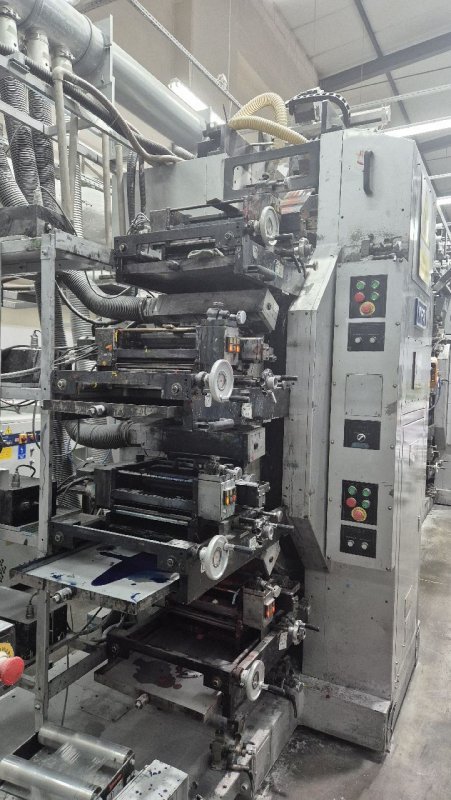

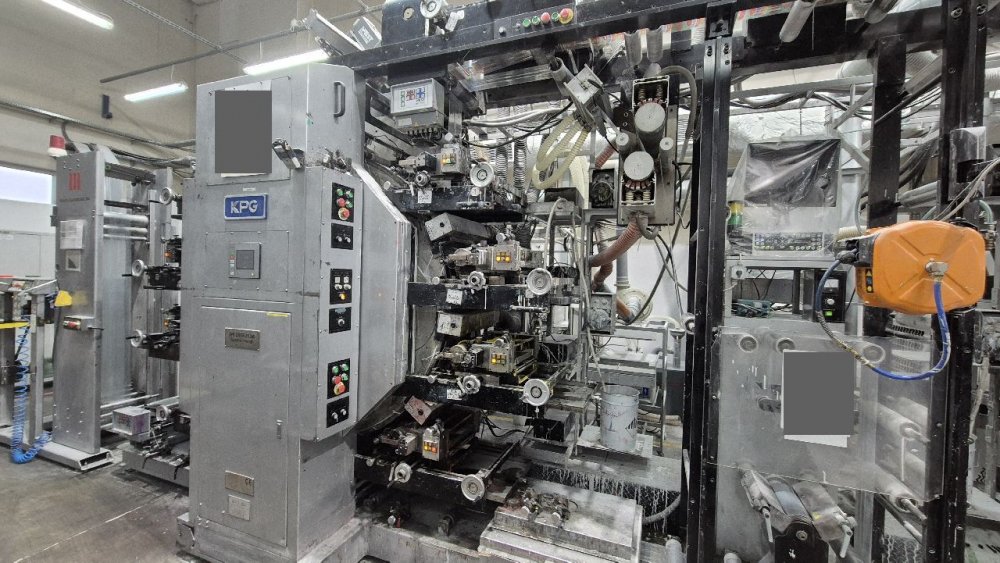

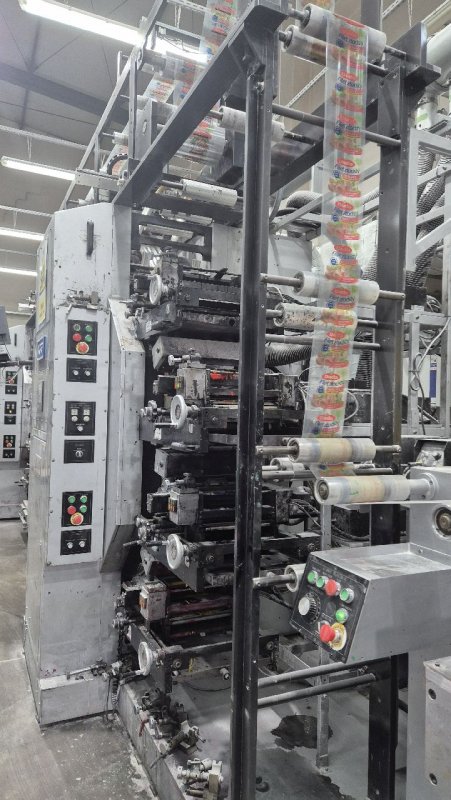

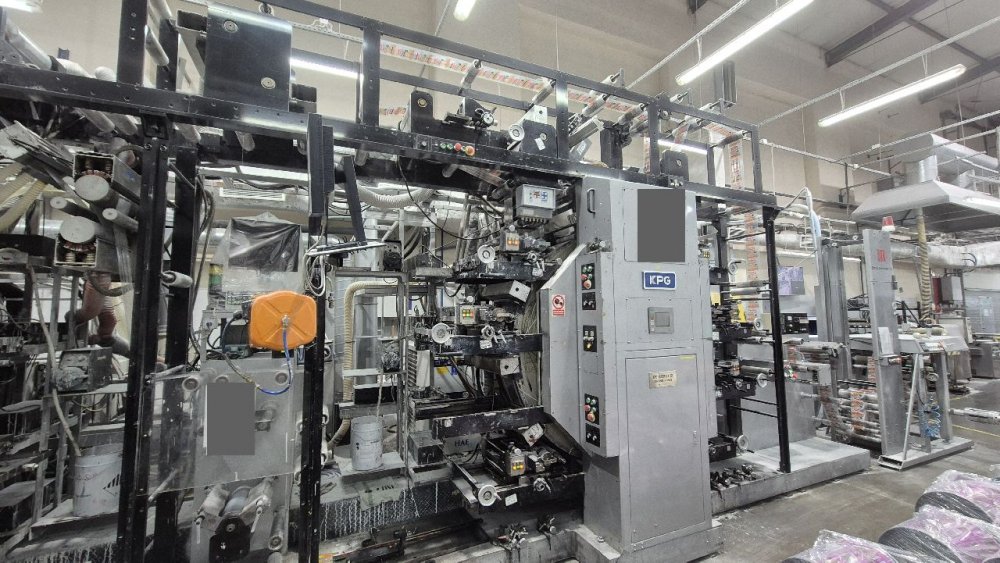

- Euroflex 250 Casing Press
- Year
- 2008
- Numero di colori
- 16
- Larghezza nastro (mm)
- 255
- Larghezza stampa (mm)
- 255
- Formato stampa (mm)
- min.260mm, max.420mm
- Essiccazione
- Drying between inks. UV lamp drying after each printing unit (GEW engineering)
- Svolgitore
- Double rotary arms equipped with pneumatic clamping cores by Martin Automatic - allows non-stop printing (automatic roll change). Adapted to sleeves with internal dimensions of 78mm and 152mm • Clamping length: 250mm Roll weight max. 60kg
- Avvolgitore
- Double rotary arms equipped with pneumatic clamping cores by Martin Automatic - allows non-stop printing (automatic roll change). Adapted to sleeves with internal dimensions of 78mm and 152mm • Clamping length: 250mm Roll weight max. 60kg
- Ulteriori informazioni
- UV Flexo 16 Colour + 2V + press Max. speed: 100 m/min Single-sided printing: Max. 15 colours + 2 varnish sets Material width: 30 mm to 255 mm Print width: max. 255 mm Double-sided printing: Max. 16 colours + 2 varnish sets Material width: 30 mm to 255 mm Print width: max. 255 mm Printing capabilities: Inks used: UV inks Doctor blade system: Open chamber doctor blade system with peristaltic pumps for ink supply. Included: 19 doctor blade chambers, 10 peristaltic pumps for inks Material types: Polyamide casings, fibrus casings, collagen casings, shrink sleeves, foil Machine equipped with the following format sleeves: 260, 280, 290, 300, 310, 320, 330, 340, 360, 380, 400, 420 Video inspection system: 2 BST cameras + BST Super Handy Scan 3000 control 15” color monitor Web pre-treatment: Double corona discharge device SOFTAL ELECTRONIC (one control unit not working)
| Codice Macchina | LAB259 |
| Manufacturer | KPG |
| Modello | Euroflex 250 Casing Press |
| Year | 2008 |
| Numero di colori | 16 |
| Larghezza nastro (mm) | 255 |
| Larghezza stampa (mm) | 255 |
| Formato stampa (mm) | min.260mm, max.420mm |
| Essiccazione | Drying between inks. UV lamp drying after each printing unit (GEW engineering) |
| Svolgitore | Double rotary arms equipped with pneumatic clamping cores by Martin Automatic - allows non-stop printing (automatic roll change). Adapted to sleeves with internal dimensions of 78mm and 152mm • Clamping length: 250mm Roll weight max. 60kg |
| Avvolgitore | Double rotary arms equipped with pneumatic clamping cores by Martin Automatic - allows non-stop printing (automatic roll change). Adapted to sleeves with internal dimensions of 78mm and 152mm • Clamping length: 250mm Roll weight max. 60kg |
| Ulteriori informazioni | UV Flexo 16 Colour + 2V + press Max. speed: 100 m/min Single-sided printing: Max. 15 colours + 2 varnish sets Material width: 30 mm to 255 mm Print width: max. 255 mm Double-sided printing: Max. 16 colours + 2 varnish sets Material width: 30 mm to 255 mm Print width: max. 255 mm Printing capabilities: Inks used: UV inks Doctor blade system: Open chamber doctor blade system with peristaltic pumps for ink supply. Included: 19 doctor blade chambers, 10 peristaltic pumps for inks Material types: Polyamide casings, fibrus casings, collagen casings, shrink sleeves, foil Machine equipped with the following format sleeves: 260, 280, 290, 300, 310, 320, 330, 340, 360, 380, 400, 420 Video inspection system: 2 BST cameras + BST Super Handy Scan 3000 control 15” color monitor Web pre-treatment: Double corona discharge device SOFTAL ELECTRONIC (one control unit not working) |
