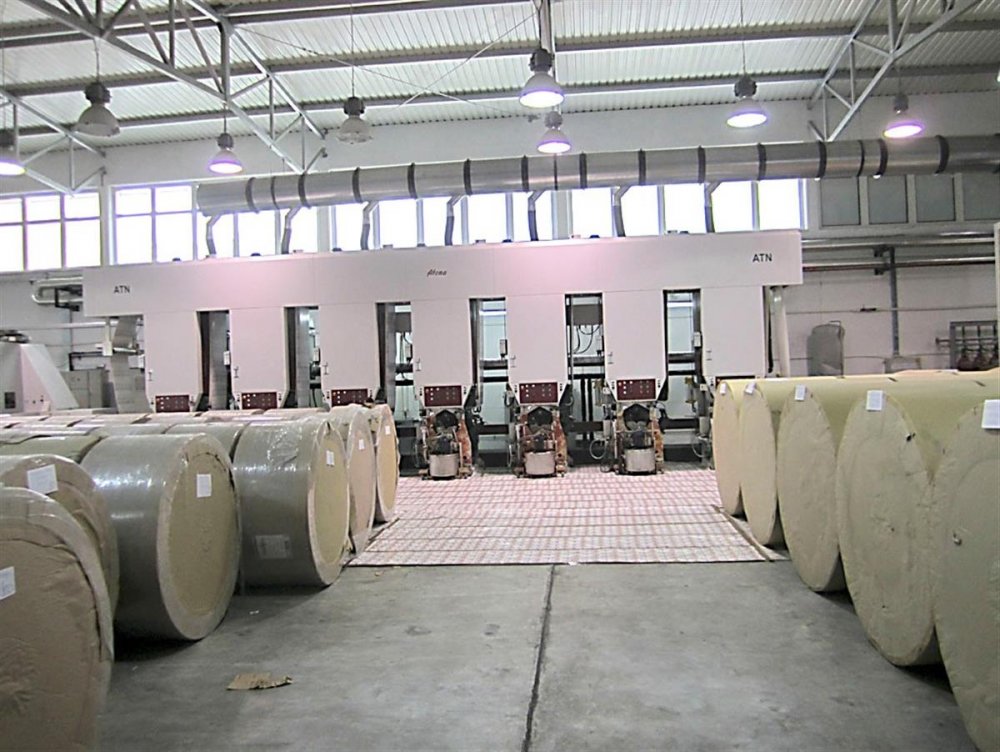

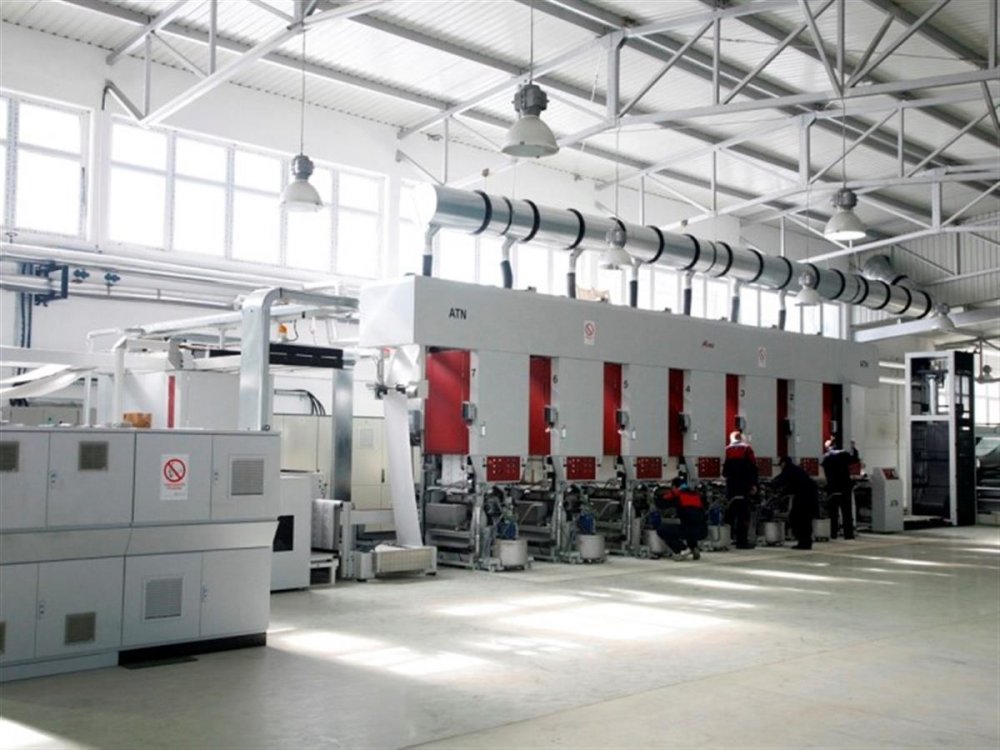

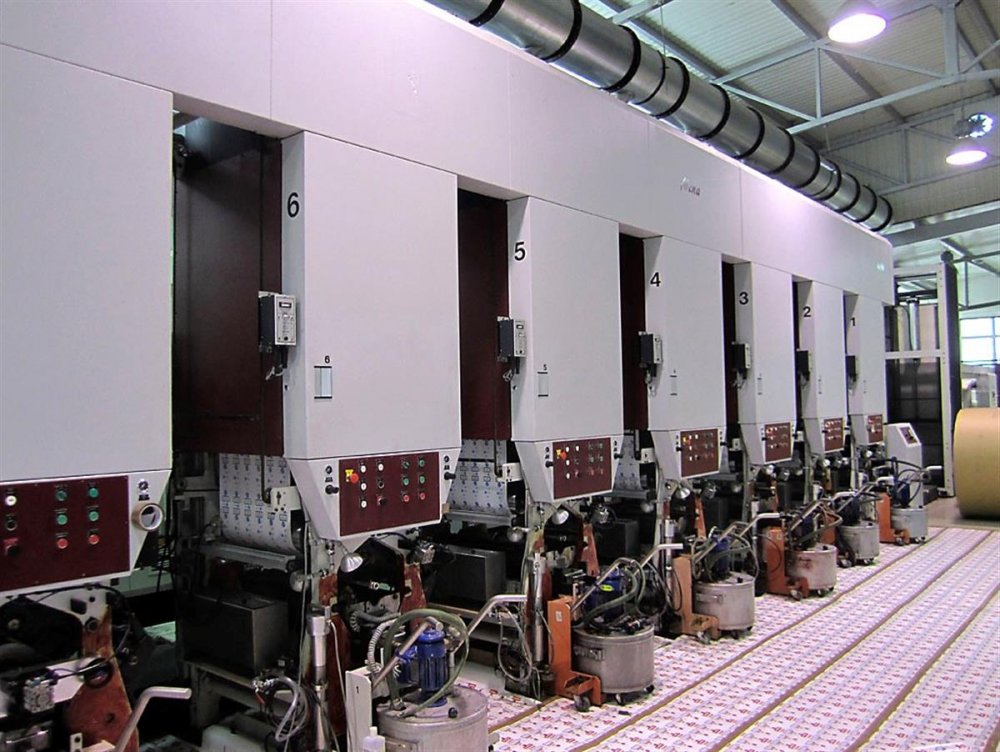

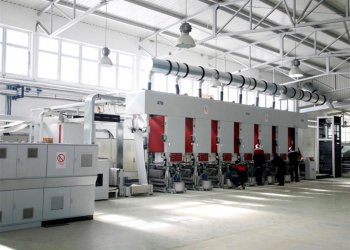

DCM ATENA Macchina da stampa rotocalco 7 colori // Rotogravure // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Codice Macchina: RO150
Manufacturer: DCM
Modello: ATENA
Year: 2007
Numero di colori: 7
Motorizzazione: Electronic shaft
Trolley system: Yes
Larghezza nastro (mm): 660
Larghezza stampa (mm): 640
Formato stampa (mm): 360-760 mm
Drying specifications: The low temperature high efficiency dryer insure an air circulation and heating. The circulating air in the dryer has a velocity of 40 m/s with an adjustable fan and blower 7000 m3/hour and heated by thermo-oil installation and with temperature regulation. Very precisely controlled air recirculation allows an efficient dryer at a low temperature, saving thus energy and substrate quality
Drying heat surce: thermo-oil instalation

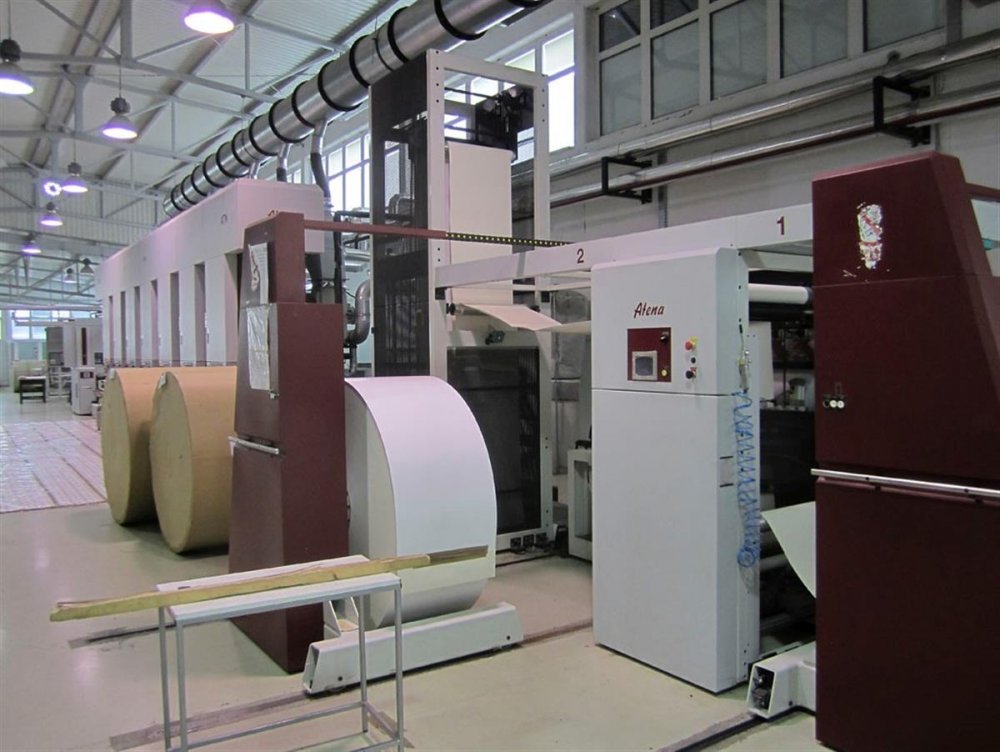

Unwinder type: Automatic
Diametro massimo svolgitore (mm): 1800
Rewinder type: Single Shaft
Max reel diameter rewinder (mm): 1300
Videocamera: BST Handyscan
Controllo di registro: DGC 650 from Eltromat
Vyscosity control: Viscosity control equipment with solvent reservoir enables to measure and adjust viscosity of solvent inks (Opticolor Junior)
Cilindri stampa: 67 printing cylinders (13 steel base only and 54 copper covered) ;3 sets of cutting + creasing tools
Ulteriori informazioni: SUBSTRATE: PAPER/CARDBOARD SUBSTRATE WEIGHT: 60-300 gsm Production of cigaretes packaging, paper labels and cardboard packaging Register control DGC 650 from Eltromat Splicing device AIR VOLUME : 7000 m3/h AIR VELOCITY : 40 m/s MAXIMUM REEL DIAMETER 1800 mm MAXIMUM WEB WIDTH 660 mm MAXIMUM PRINTING WIDTH 640 mm MAXIMUM PRINTING REPEAT 760 mm MINIMUM PRINTING REPEAT 360 mm MAXIMUM ROTARY DIE CUTTING WIDTH 660 mm MAXIMUM ROTARY DIE CUTTING REPEAT 800 mm MINIMUM ROTARY DIE CUTTING REPEAT 535 mm ELECTRICAL SPECIFICATIONS 400 V, 3 phases, 50 Hz PRODUCTION SPEED up to 200 m/min 3 stage rotary die cutting unit RDC10 in-line – embossing, creasing and cutting/stripping cassettes Production: roll to roll, roll to sheet, roll to die-cut product Drying: thermo-oil installation Register control: DGC 650 from Eltromat REGISTER ACCURACY PRINT TO PRINT : +/- 0.10 mm PRINT TO CUT : +/- 0.15 mm Additional equipment included in price – 67 printing cylinders (13 steel base only and 54 copper covered) – 3 sets of cutting + creasing tools (buyer can’t use the whole tool, only original ATN cassettes in which the tools are packed)

Codice Macchina	RO150
Manufacturer	DCM
Modello	ATENA
Year	2007
Numero di colori	7
Motorizzazione	Electronic shaft
Trolley system	Yes
Larghezza nastro (mm)	660
Larghezza stampa (mm)	640
Formato stampa (mm)	360-760 mm
Drying specifications	The low temperature high efficiency dryer insure an air circulation and heating. The circulating air in the dryer has a velocity of 40 m/s with an adjustable fan and blower 7000 m3/hour and heated by thermo-oil installation and with temperature regulation. Very precisely controlled air recirculation allows an efficient dryer at a low temperature, saving thus energy and substrate quality
Drying heat surce	thermo-oil instalation
Unwinder type	Automatic
Diametro massimo svolgitore (mm)	1800
Rewinder type	Single Shaft
Max reel diameter rewinder (mm)	1300
Videocamera	BST Handyscan
Controllo di registro	DGC 650 from Eltromat
Vyscosity control	Viscosity control equipment with solvent reservoir enables to measure and adjust viscosity of solvent inks (Opticolor Junior)
Cilindri stampa	67 printing cylinders (13 steel base only and 54 copper covered) ;3 sets of cutting + creasing tools
Ulteriori informazioni	SUBSTRATE: PAPER/CARDBOARD SUBSTRATE WEIGHT: 60-300 gsm Production of cigaretes packaging, paper labels and cardboard packaging Register control DGC 650 from Eltromat Splicing device AIR VOLUME : 7000 m3/h AIR VELOCITY : 40 m/s MAXIMUM REEL DIAMETER 1800 mm MAXIMUM WEB WIDTH 660 mm MAXIMUM PRINTING WIDTH 640 mm MAXIMUM PRINTING REPEAT 760 mm MINIMUM PRINTING REPEAT 360 mm MAXIMUM ROTARY DIE CUTTING WIDTH 660 mm MAXIMUM ROTARY DIE CUTTING REPEAT 800 mm MINIMUM ROTARY DIE CUTTING REPEAT 535 mm ELECTRICAL SPECIFICATIONS 400 V, 3 phases, 50 Hz PRODUCTION SPEED up to 200 m/min 3 stage rotary die cutting unit RDC10 in-line – embossing, creasing and cutting/stripping cassettes Production: roll to roll, roll to sheet, roll to die-cut product Drying: thermo-oil installation Register control: DGC 650 from Eltromat REGISTER ACCURACY PRINT TO PRINT : +/- 0.10 mm PRINT TO CUT : +/- 0.15 mm Additional equipment included in price – 67 printing cylinders (13 steel base only and 54 copper covered) – 3 sets of cutting + creasing tools (buyer can’t use the whole tool, only original ATN cassettes in which the tools are packed)
