- Codice Macchina
- FL1095
- Manufacturer
- COMEXI
- Modello
- FW2110
- Year
- 2008
- Numero di colori
- 10
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 920
- Larghezza stampa (mm)
- 870
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Single Shaftless,core size : 76.2mm
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Single Shaftless, core size : 76.2mm
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione

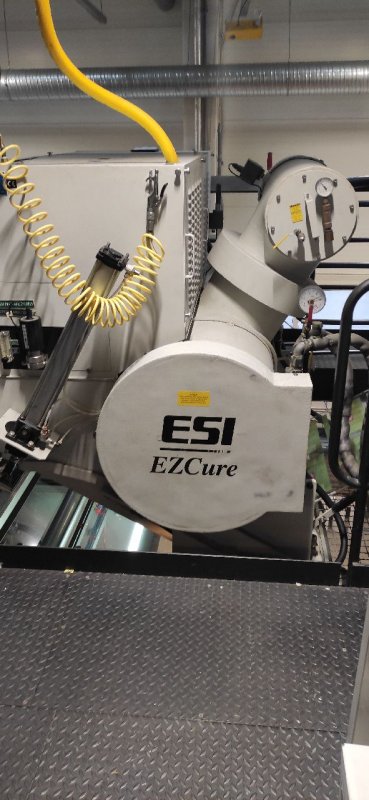

- ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm
- Videocamera

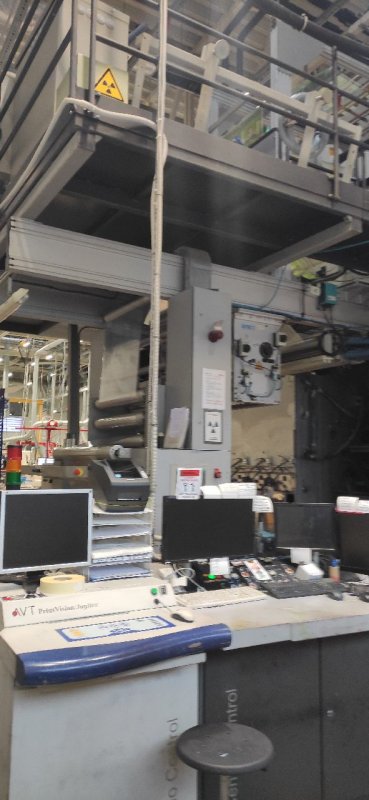

- AVT PRINT VISION JUPITER
- Trattamento Corona
- SOFTAL corona treating one 5 Kw generator
- Guida film
- Yes, before printing and before rewinding
- Ulteriori informazioni
- Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator
| Codice Macchina | FL1095 |
| Manufacturer | COMEXI |
| Modello | FW2110 |
| Year | 2008 |
| Numero di colori | 10 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 920 |
| Larghezza stampa (mm) | 870 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single Shaftless,core size : 76.2mm |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Single Shaftless, core size : 76.2mm |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm |
| Videocamera | AVT PRINT VISION JUPITER |
| Trattamento Corona | SOFTAL corona treating one 5 Kw generator |
| Guida film | Yes, before printing and before rewinding |
| Ulteriori informazioni | Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator |
