- Código Máquina
- FL1095
- Constructor
- COMEXI
- Modello
- FW2110
- Año
- 2008
- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 920
- Print width (mm)
- 870
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Single Shaftless,core size : 76.2mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Single Shaftless, core size : 76.2mm
- Max reel diameter rewinder (mm)
- 1000
- Drying

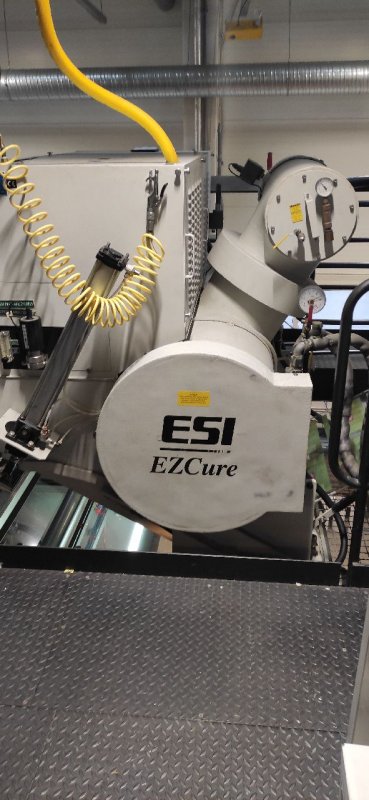

- ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm
- Videocamera

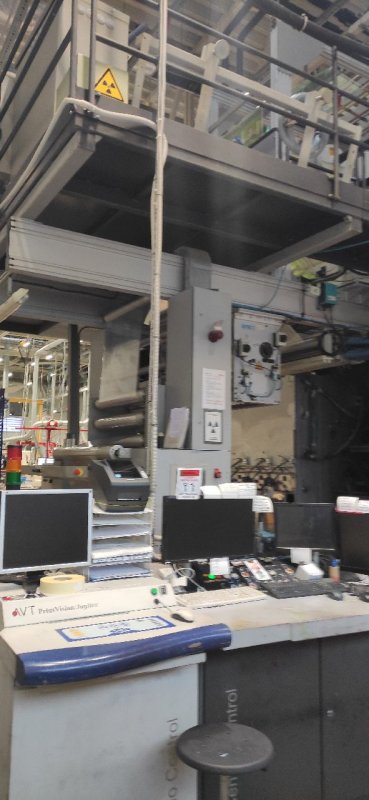

- AVT PRINT VISION JUPITER
- Corona treatment
- SOFTAL corona treating one 5 Kw generator
- Web guides
- Yes, before printing and before rewinding
- Note
- Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator
| Código Máquina | FL1095 |
| Constructor | COMEXI |
| Modello | FW2110 |
| Año | 2008 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 920 |
| Print width (mm) | 870 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single Shaftless,core size : 76.2mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Single Shaftless, core size : 76.2mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm |
| Videocamera | AVT PRINT VISION JUPITER |
| Corona treatment | SOFTAL corona treating one 5 Kw generator |
| Web guides | Yes, before printing and before rewinding |
| Note | Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator |
UTECO EMERALD 825 MOD 120
-
Código Máquina: FL0662
-
Año: 1999
-
Web width (mm): 1250
Schiavi Alpha 8C
-
Código Máquina: FL1070
-
Año: 2000
-
Web width (mm):
WINDMÖLLER & HÖLSCHER ASTRAFLEX
-
Código Máquina: FL0737
-
Año: 2004
-
Web width (mm): 1650
SCHIAVI EF4020
-
Código Máquina: FL0503
-
Año: 2004
-
Web width (mm): 1250
UTECO TOPAZ 808 GL
-
Código Máquina: FL1006
-
Año: 2014
-
Web width (mm): 650
COMEXI OFFSET CI 8
-
Código Máquina: FL1057
-
Año: 2014
-
Web width (mm): 1120
