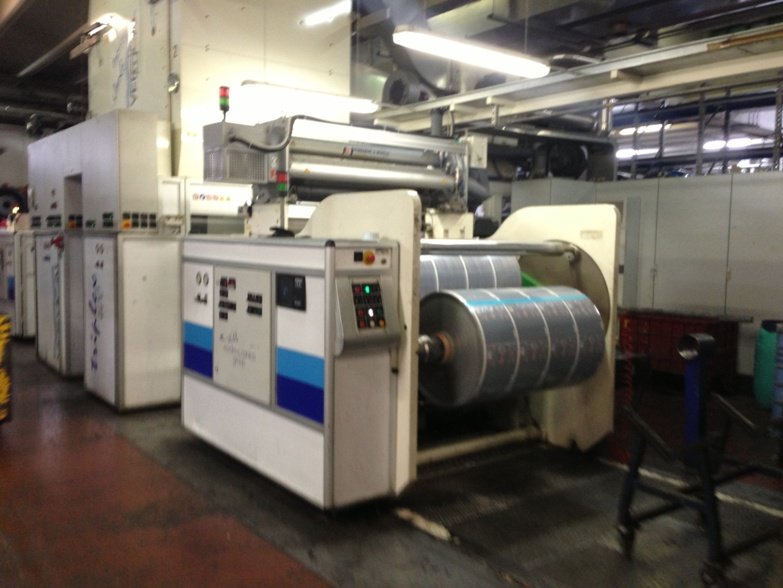

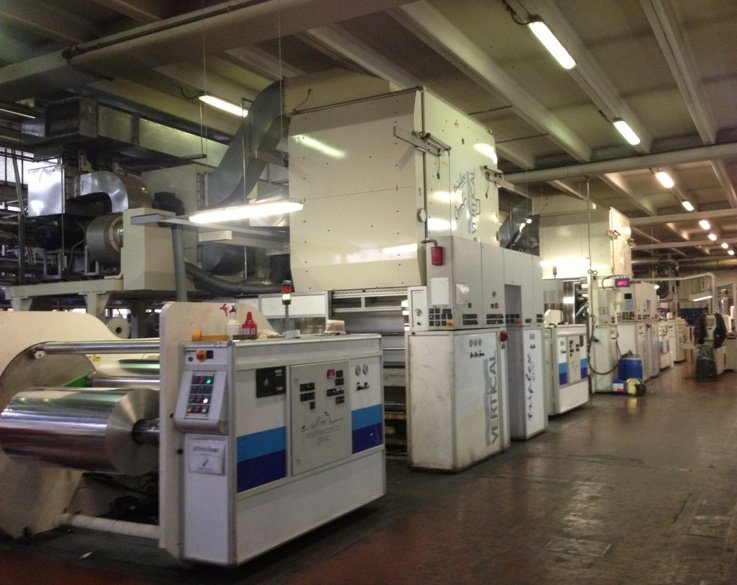

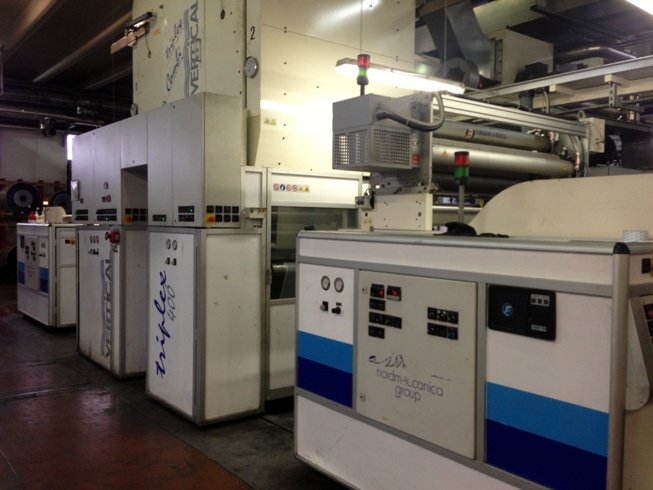

NORDMECCANICA TRIPLEX COMBI Complexeuse COMBI / INTECHANGEABLE TROLLEY

Code Machine
LA175
Fabricant
NORDMECCANICA
Modello
TRIPLEX COMBI
Année
2006
Application
Triplex lamination
Type of lamination/coating
COMBI / INTECHANGEABLE TROLLEY
Working width (mm)
1300
Materials
all plastic film and paper , alu foil
Speed
400 mpm
First unwinder type
Turret automatic
Max diameter reel unwinder
1000
Secondary unwinder type
Turret automatic
Max diameter reel unwinder
1000
Third unwinder type
Turret automatic
Max diameter reel unwinder
1000
Rewinder type
Turret automatic
Max diameter reel rewinder
1000
Coating unit
solvent based trolley
Second Coating unitr
solvent based, solventless, cold seal coating
Drying
2 coating sections each one two drying zones , three fans 7,5 mt driers , thermo oil heaters, automatic recirculation wih LEL control by NIRA
Register controll
yes on second coating unit for cold seal
pumping mixing unit
World mix
Corona treatment
2 corona treaters Ferrarini Benelli complete with ozone exhaust and treatment
Note
Viscosity control for solvent based adhesive. 4 heating units for solventless trolley. 2 chillers Frigosystem
Code Machine LA175
Fabricant NORDMECCANICA
Modello TRIPLEX COMBI
Année 2006
Application Triplex lamination
Type of lamination/coating COMBI / INTECHANGEABLE TROLLEY
Working width (mm) 1300
Materials all plastic film and paper , alu foil
Speed 400 mpm
First unwinder type Turret automatic
Max diameter reel unwinder 1000
Secondary unwinder type Turret automatic
Max diameter reel unwinder 1000
Third unwinder type Turret automatic
Max diameter reel unwinder 1000
Rewinder type Turret automatic
Max diameter reel rewinder 1000
Coating unit solvent based trolley
Second Coating unitr solvent based, solventless, cold seal coating
Drying 2 coating sections each one two drying zones , three fans 7,5 mt driers , thermo oil heaters, automatic recirculation wih LEL control by NIRA
Register controll yes on second coating unit for cold seal
pumping mixing unit World mix
Corona treatment 2 corona treaters Ferrarini Benelli complete with ozone exhaust and treatment
Note Viscosity control for solvent based adhesive. 4 heating units for solventless trolley. 2 chillers Frigosystem
