- Code Machine
- BO80
- Fabricant
- BRUCKNER - DORNIER
- Année
- 1994
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- design speed 350 m/min. Extruder's melting capacity 4800 kg/h Produced in past approx 23 ktons/y . Actual output depends on specific product mix and uptime
- Width (mm)
- 8400
- Extruder 1 Description
- Mitsubishi, cascade extruder. 250mm diam. Feeding and mixing system. 5 large hoppers
- Extruder 2 Description
- Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser
- Extruder 3 Description
- Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser
- Head description
- EDI Autoflex IV
- Die width
- 1168
- Thickness controll system
- 2 thickness gauges, one afetr chill roll, one on pull roll unit. Make FAG, source: Strontium 90. Automatic thickness profile controll on die head.

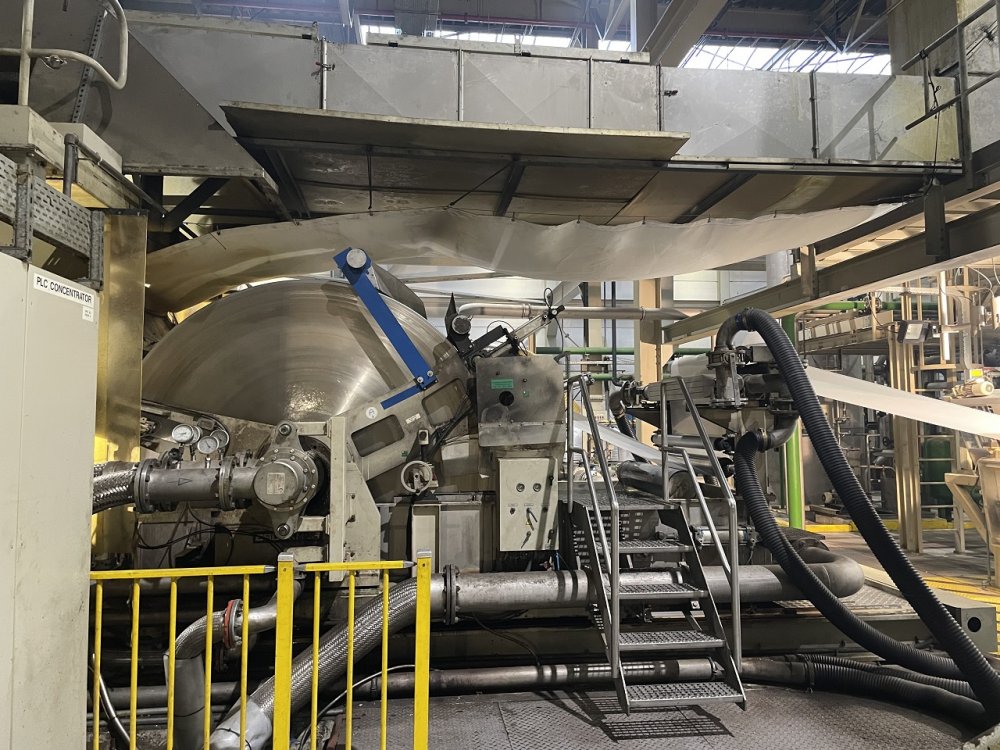

- Chill roll unit
- Bruckner. 2600mm diam in water bath with water degassification system
- MDO description
- Bruckner. Pre heating 16 cylinders. 4 stretching nips, 4 roller anealing

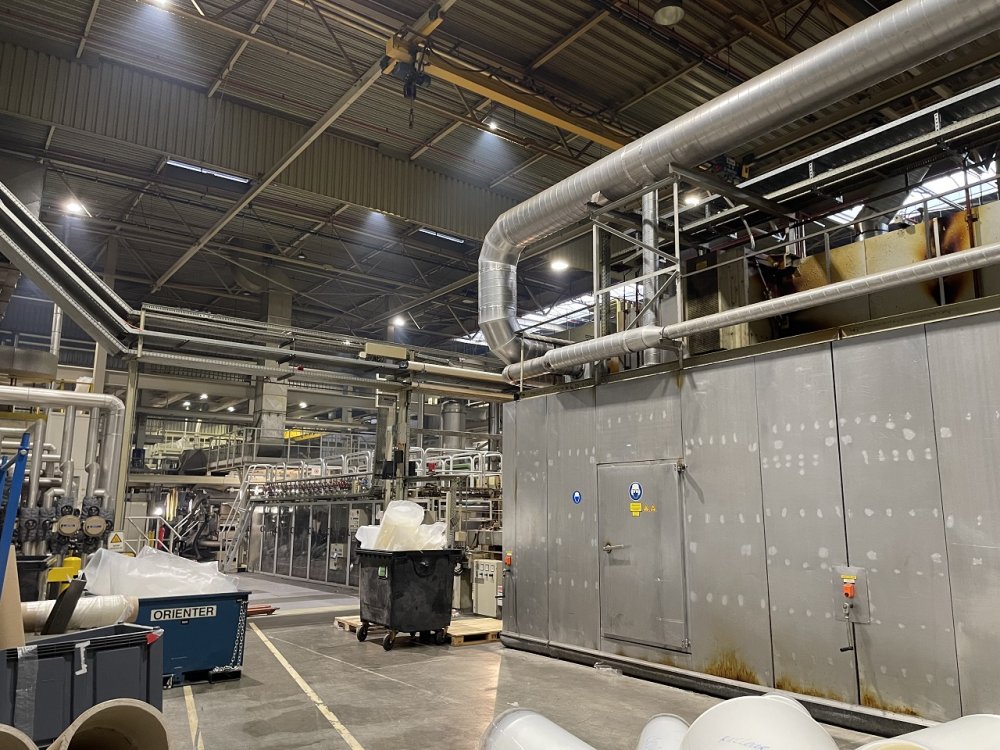

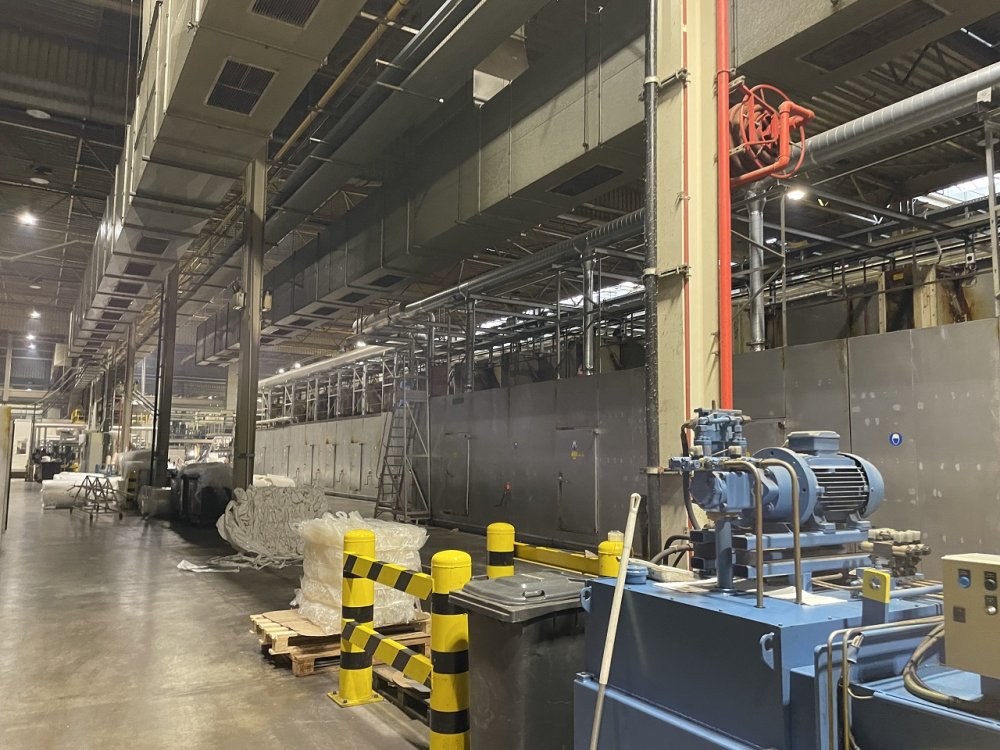

- TDO description
- Dornier 9-roller HS-clips with roller bearings. ventilation of TDO renovated in 2020 with new ac motors and inverters
- Corona treatment
- bottom corona treatment
- Flame treatment
- Top and bottom flame treatment. Make Esseci
- Rewinder width
- 8300

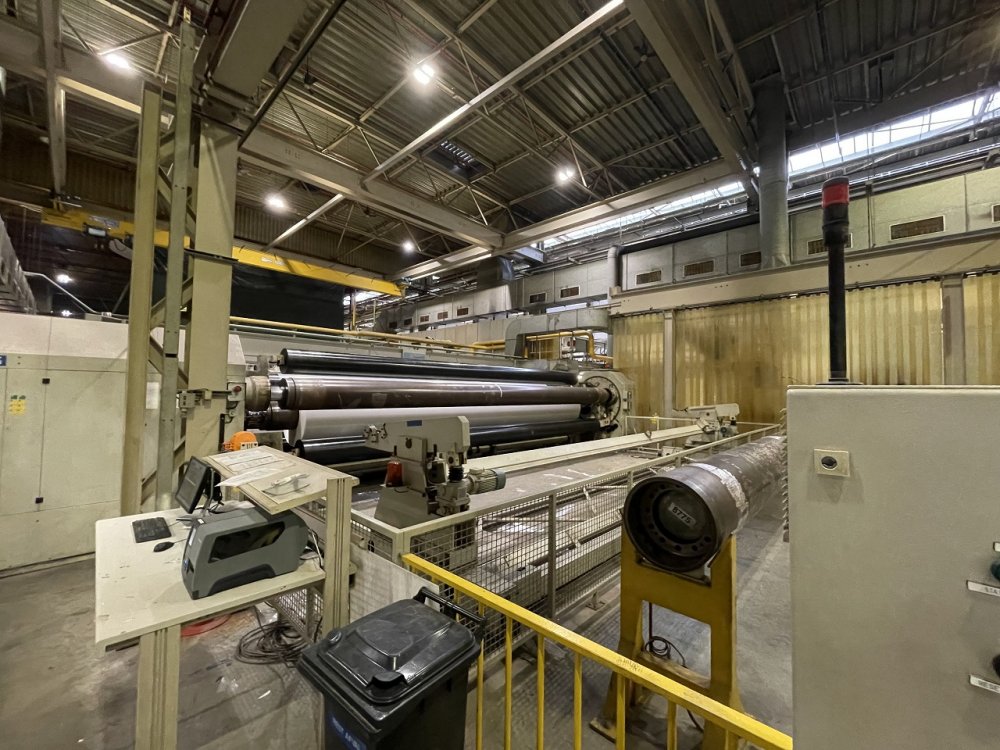

- Rewinder description
- Kampf turret winder with automatic reel unloading system
- Slitter
- Goebel Monslit. Max width 8400mm. Max input reel daim: 1200mm. Rewinder with independent winding stations, center driven, max winding width 2300mm, 14 winding arms
- Note
- -Silos - Oil oven - Roof crane - approx 100 cres
| Code Machine | BO80 |
| Fabricant | BRUCKNER - DORNIER |
| Année | 1994 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | design speed 350 m/min. Extruder's melting capacity 4800 kg/h Produced in past approx 23 ktons/y . Actual output depends on specific product mix and uptime |
| Width (mm) | 8400 |
| Extruder 1 Description | Mitsubishi, cascade extruder. 250mm diam. Feeding and mixing system. 5 large hoppers |
| Extruder 2 Description | Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser |
| Extruder 3 Description | Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser |
| Head description | EDI Autoflex IV |
| Die width | 1168 |
| Thickness controll system | 2 thickness gauges, one afetr chill roll, one on pull roll unit. Make FAG, source: Strontium 90. Automatic thickness profile controll on die head. |
| Chill roll unit | Bruckner. 2600mm diam in water bath with water degassification system |
| MDO description | Bruckner. Pre heating 16 cylinders. 4 stretching nips, 4 roller anealing |
| TDO description | Dornier 9-roller HS-clips with roller bearings. ventilation of TDO renovated in 2020 with new ac motors and inverters |
| Corona treatment | bottom corona treatment |
| Flame treatment | Top and bottom flame treatment. Make Esseci |
| Rewinder width | 8300 |
| Rewinder description | Kampf turret winder with automatic reel unloading system |
| Slitter | Goebel Monslit. Max width 8400mm. Max input reel daim: 1200mm. Rewinder with independent winding stations, center driven, max winding width 2300mm, 14 winding arms |
| Note | -Silos - Oil oven - Roof crane - approx 100 cres |
