- Code Machine
- RO116
- Fabricant

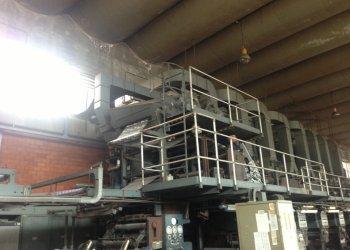

- CERUTTI
- Modello
- 38 R
- Année
- 1980
- Number of colors
- 8
- Print possibilities
- 8+0
- Web width (mm)
- 1070
- Print width (mm)
- 1020
- Print repeat range (mm)
- 440-880 mm
- Drying specifications
- double dryer c.m./h 4500 – total dryer length 3 mt
- Drying heat surce
- steam heaters
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 900
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Register controll
- yes
- Vyscosity control
- included
- Note
- In line solventless lamination unit Nordmeccanica.Print speed: 250 mt/min. 2 trolleys for cylinders.Gravure cylinders: Nr. 80 (available on option up to 200 cylinders).Cylinders shafts: 16.Pressure rollers: 8 size 1020 mm + 8 size 900 mm.6 ink pumps;
| Code Machine | RO116 |
| Fabricant | CERUTTI |
| Modello | 38 R |
| Année | 1980 |
| Number of colors | 8 |
| Print possibilities | 8+0 |
| Web width (mm) | 1070 |
| Print width (mm) | 1020 |
| Print repeat range (mm) | 440-880 mm |
| Drying specifications | double dryer c.m./h 4500 – total dryer length 3 mt |
| Drying heat surce | steam heaters |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 900 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Register controll | yes |
| Vyscosity control | included |
| Note | In line solventless lamination unit Nordmeccanica.Print speed: 250 mt/min. 2 trolleys for cylinders.Gravure cylinders: Nr. 80 (available on option up to 200 cylinders).Cylinders shafts: 16.Pressure rollers: 8 size 1020 mm + 8 size 900 mm.6 ink pumps; |
