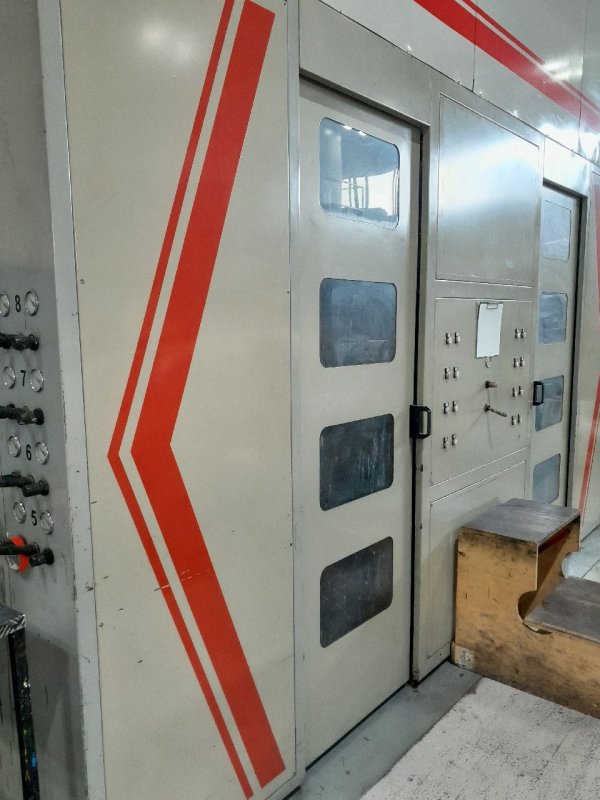

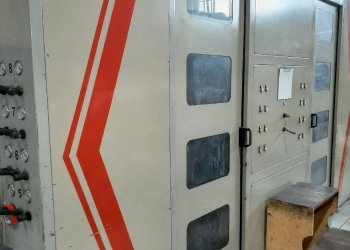

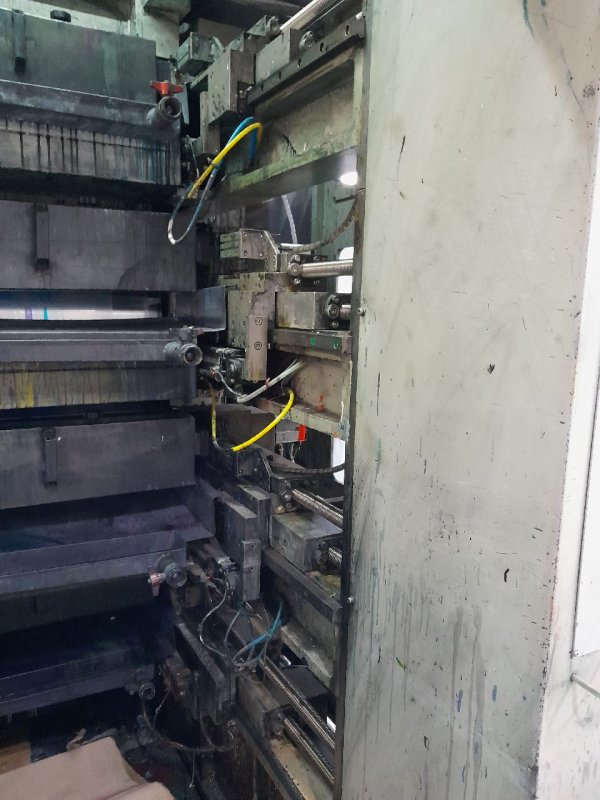

- Code Machine
- FL1098
- Fabricant
- COMIFLEX
- Modello
- CI8
- Année
- 2006
- Number of colors
- 8
- Overhaul/renovation
- mechanical and software upgrading in 2013
- Gearless
- No
- Fast sleeve change
- Yes

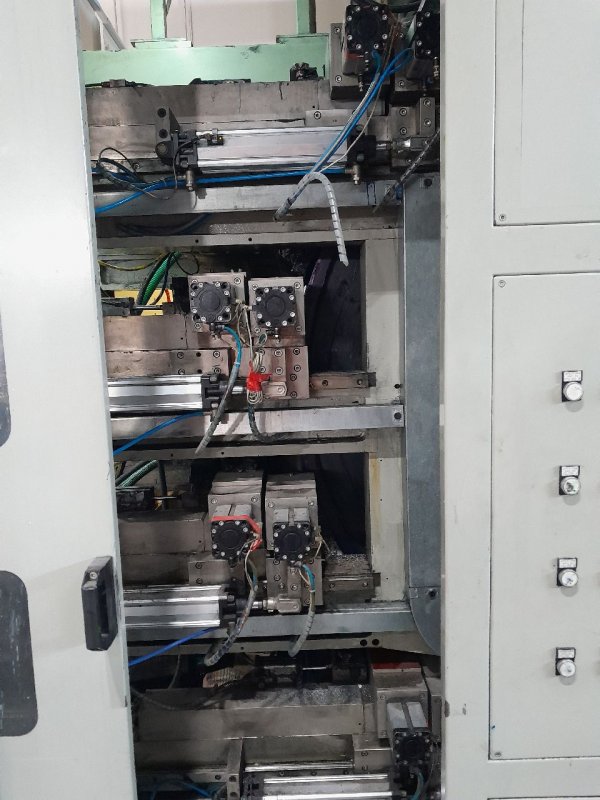

- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1280
- Print width (mm)
- 1200
- Min print repeat (mm)
- 340
- Max print repeat (mm)
- 800

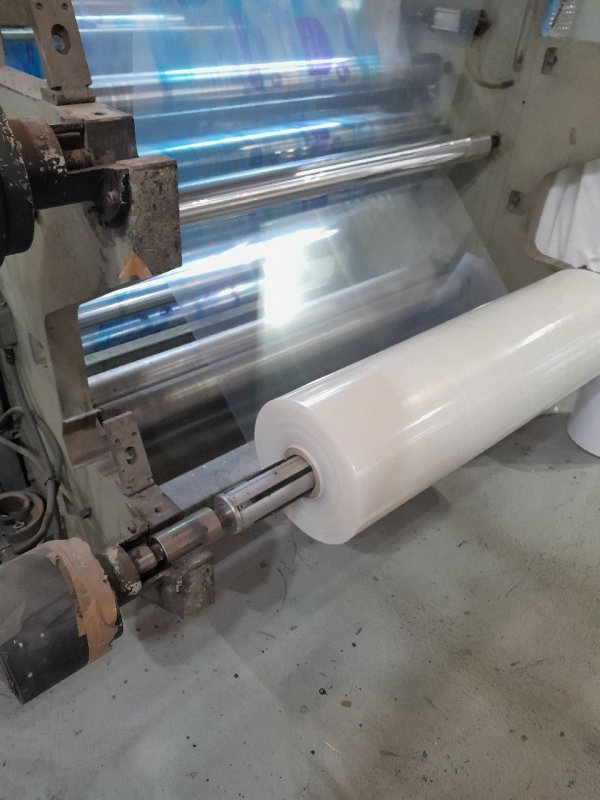

- Unwinder type
- Double bracket
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double automatic turret rewinder
- Max reel diameter rewinder (mm)
- 800
- Drying
- two separate stations for drying with electric resistance, drum and drying tube
- Videocamera
- Yes
- Web guides
- Yes, IN and OUT
- Anilox
- 15 Anilox
- Note
- mechanical speed 300m/min Cast iron frame 120mm thickness CI diam 1700mm double walls type clishe 1,14mm
| Code Machine | FL1098 |
| Fabricant | COMIFLEX |
| Modello | CI8 |
| Année | 2006 |
| Number of colors | 8 |
| Overhaul/renovation | mechanical and software upgrading in 2013 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1280 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 340 |
| Max print repeat (mm) | 800 |
| Unwinder type | Double bracket |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double automatic turret rewinder |
| Max reel diameter rewinder (mm) | 800 |
| Drying | two separate stations for drying with electric resistance, drum and drying tube |
| Videocamera | Yes |
| Web guides | Yes, IN and OUT |
| Anilox | 15 Anilox |
| Note | mechanical speed 300m/min Cast iron frame 120mm thickness CI diam 1700mm double walls type clishe 1,14mm |
