- Code Machine
- FL1094
- Fabricant
- COMIFLEX
- Année
- 2008
- Number of colors
- 6
- Print possibilityes
- 6 CI + 1 stack + UV
- Gearless
- No
- Fast sleeve change
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1580
- Print width (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1200

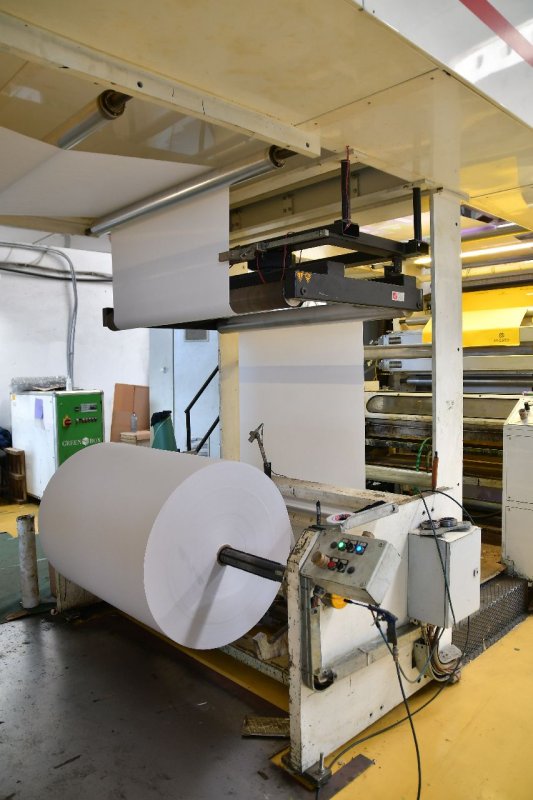

- Unwinder type
- Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
- Max reel diameter rewinder (mm)
- 1200
- Drying
- 2 zones 4 fans, 2 gas burners
- Videocamera
- Yes, L & C Graph
- Corona treatment
- No
- Web guides
- Electronic with ultrasound
- Vyscosity control
- No
- Washing system
- Automatic station
- Inking system
- Automatic station with pneumatic pumps
- Anilox
- total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20
- Print Sleeves
- Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800
- Note
- Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm )
| Code Machine | FL1094 |
| Fabricant | COMIFLEX |
| Année | 2008 |
| Number of colors | 6 |
| Print possibilityes | 6 CI + 1 stack + UV |
| Gearless | No |
| Fast sleeve change | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1580 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1200 |
| Unwinder type | Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity |
| Max reel diameter rewinder (mm) | 1200 |
| Drying | 2 zones 4 fans, 2 gas burners |
| Videocamera | Yes, L & C Graph |
| Corona treatment | No |
| Web guides | Electronic with ultrasound |
| Vyscosity control | No |
| Washing system | Automatic station |
| Inking system | Automatic station with pneumatic pumps |
| Anilox | total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20 |
| Print Sleeves | Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800 |
| Note | Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm ) |
