- Código Máquina
- SS52
- Constructor
- MILLTEX
- Año
- 2002
- Width (mm)
- 1600
- Materials
- plastic sheet paper and board
- Note

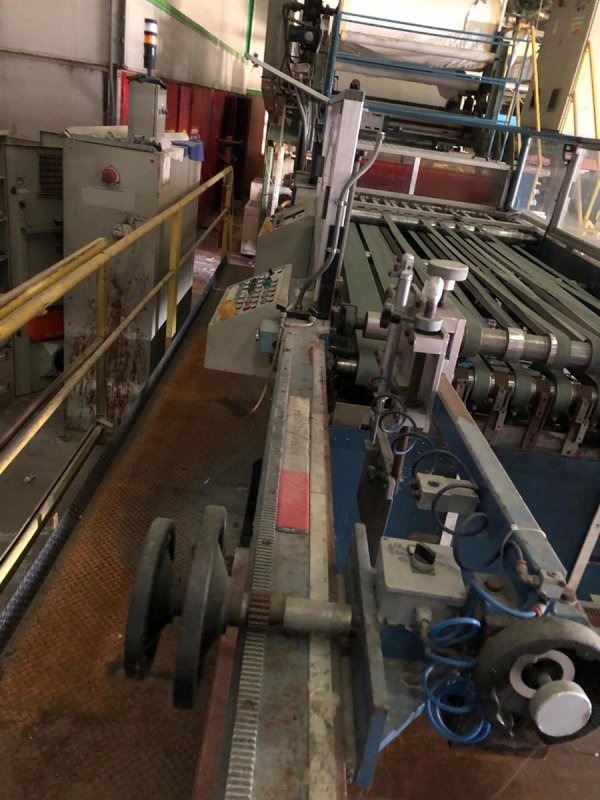

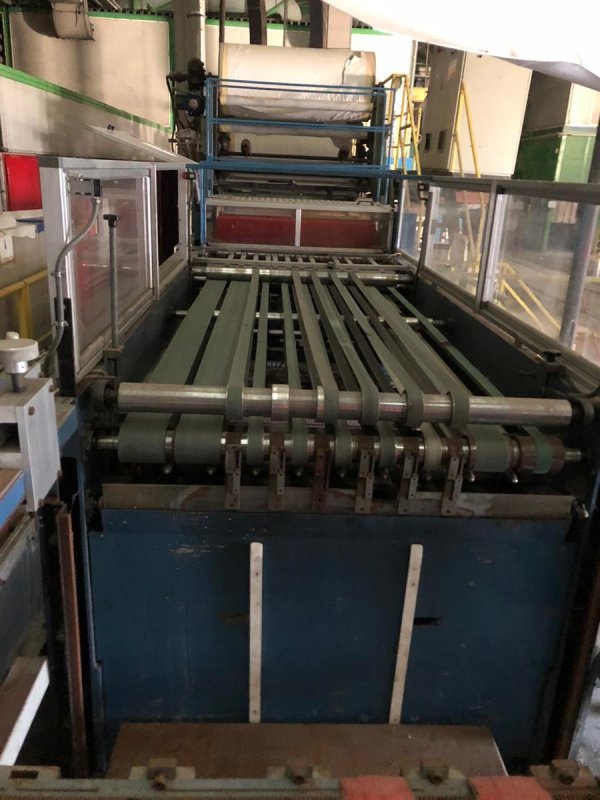

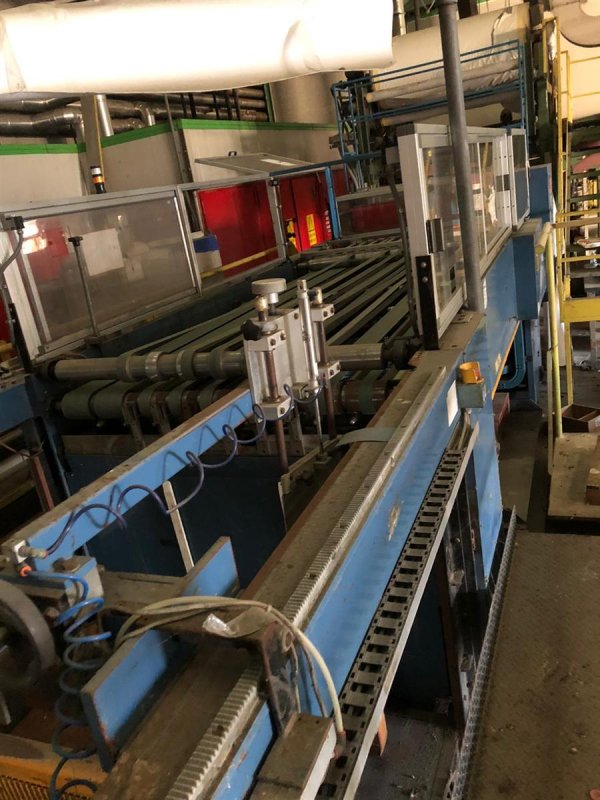

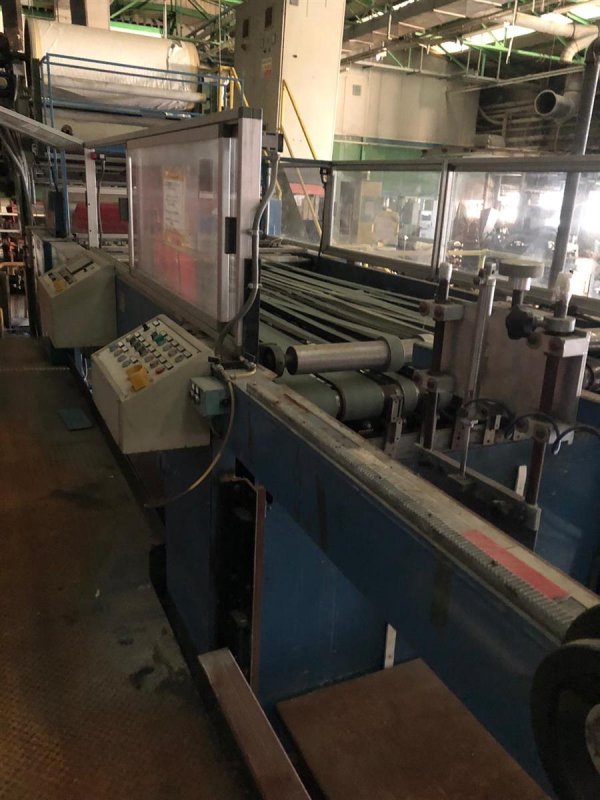

- Pair of feeding cylinders, tension regulation through load cells, cutting equipment composed of fixed lower knife and rotating upper knife, transport unit composed of tow rollers and flat belts. Stacking on pantograph, which is continuously lowered, keeping the stacking level constant. Intermediate stacking equipment when changing pallets. Evacuation equipment for collecting waste in a box. Sheets: height 1.030-1.300 mm, length 850-1.580 mm, thickness 140 - 1.000 micron
| Código Máquina | SS52 |
| Constructor | MILLTEX |
| Año | 2002 |
| Width (mm) | 1600 |
| Materials | plastic sheet paper and board |
| Note | Pair of feeding cylinders, tension regulation through load cells, cutting equipment composed of fixed lower knife and rotating upper knife, transport unit composed of tow rollers and flat belts. Stacking on pantograph, which is continuously lowered, keeping the stacking level constant. Intermediate stacking equipment when changing pallets. Evacuation equipment for collecting waste in a box. Sheets: height 1.030-1.300 mm, length 850-1.580 mm, thickness 140 - 1.000 micron |
CAVALLERI CT12
-
Código Máquina: SS68
-
Año: 1999
-
Width (mm): 1000
WINDMÖLLER & HÖLSCHER 9210
-
Código Máquina: SS77
-
Año: 1980
-
Width (mm): 830
STRACHAN & HENSHAW
-
Código Máquina: SS80
-
Año: 1985
-
Width (mm): 1300
MANZONI TCT 100
-
Código Máquina: SS70
-
Año: 1998
-
Width (mm): 1000
WINDMÖLLER & HÖLSCHER GF1005
-
Código Máquina: SS78
-
Año: 1978
-
Width (mm): 1080
