- Código Máquina
- LA348
- Constructor
- POLYTYPE
- Modello
- POLYTYPE 522
- Año
- 1982
- Application
- Coating
- Type of lamination/coating
- SOLVENTLESS
- Overhaul/renovation
- 2003
- Working width (mm)
- 1040
- Materials
- Paper, PET, PA, OPS, OPP,Aluminium
- Speed
- 300 m/min
- First unwinder type
- Single
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Single
- Max diameter reel unwinder
- 1000
- Rewinder type
- Turret
- Coating unit
- 5 roller for solventless
- Corona treatment
- 1 SOFTAL Model: 8040 de 5KVA 16A
- Note
- PLC Siemens S7: 315 2DP (315-2AF03-0AB0) Touch screen: Panel TP270 TOUCH 10” (6AV6 545-0CC10-0AX0) 6 Drivers: PARKER 590P 40 1 Driver: PARKER 690P 5,5 kw Corona Threaters: 1 SOFTAL Model: 8040 de 5KVA 16A 1 FERRARINI & BENELL1 Model: GTS10 de 26A Web aligners: 2 Aligners FIFE Model: P50 – 1F 22 TA
| Código Máquina | LA348 |
| Constructor | POLYTYPE |
| Modello | POLYTYPE 522 |
| Año | 1982 |
| Application | Coating |
| Type of lamination/coating | SOLVENTLESS |
| Overhaul/renovation | 2003 |
| Working width (mm) | 1040 |
| Materials | Paper, PET, PA, OPS, OPP,Aluminium |
| Speed | 300 m/min |
| First unwinder type | Single |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Single |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Turret |
| Coating unit | 5 roller for solventless |
| Corona treatment | 1 SOFTAL Model: 8040 de 5KVA 16A |
| Note | PLC Siemens S7: 315 2DP (315-2AF03-0AB0) Touch screen: Panel TP270 TOUCH 10” (6AV6 545-0CC10-0AX0) 6 Drivers: PARKER 590P 40 1 Driver: PARKER 690P 5,5 kw Corona Threaters: 1 SOFTAL Model: 8040 de 5KVA 16A 1 FERRARINI & BENELL1 Model: GTS10 de 26A Web aligners: 2 Aligners FIFE Model: P50 – 1F 22 TA |
SCHIAVI Eco Convert Junior
-
Código Máquina: LA470
-
Año: 1996
-
Working width (mm): 1300
NORDMECCANICA Combi Lab
-
Código Máquina: LA460
-
Año: 2000
-
Working width (mm): 440
NORDMECCANICA SUPERCOMBI 4000
-
Código Máquina: LA445
-
Año: 2018
-
Working width (mm): 1315
SIDECO
-
Código Máquina: LA159
-
Año: 1999
-
Working width (mm): 1650

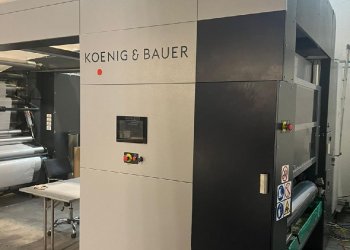

KBA FLEXOTECNICA EVO LAM
-
Código Máquina: LA416
-
Año: 2020
-
Working width (mm): 1300

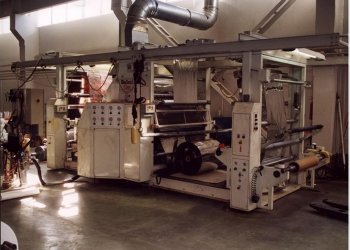

BIELLONI CLEO BIELLOFLEX
-
