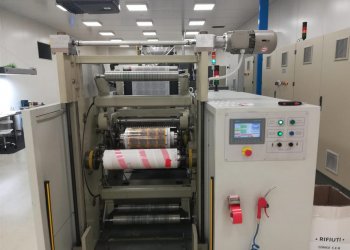

- Código Máquina
- LAB202
- Constructor
- BOBST
- Modello
- M6
- Año
- 2015
- Number of colors
- 9
- Web width (mm)
- 670
- Print width (mm)
- 660
- Print repeat range (mm)
- 304,8 - 609,6
- Drying
- 9 UV new AMS lamps
- Unwinder
- Turret non stop, max diameter 1000mm
- Rewinder
- Turret non stop, max diameter 1000mm
- Note
- Suitable for food industry white chamber conditions. 1.Min and max thickness: 12my PET films upto 250my films and 400gsm paper BST Powerscope 4000 + AVT HELIOS II 1.23 1.24 Tools Single side corona F&B Single side web cleaner 9UV flexo stations with V-Flower technology Auto pressure setting Auto sleeve change with job preparation while the machine is printing Industrial chiller Longitudinal register control 9 flexo pumps 3 web break detectors 100% quality control and inspection system AVT Helios II 9 print tutor: one smart camera on each print head for longitudinal and side register control. The same camera controls also the print pressure through AVT Helios II camera. Web Turn Bar slidable on rails Cold Foil unit, movable on rails 162 printing sleeves 24 APEX anilox rolls (some GTT for REVO) Plate mounter with video
| Código Máquina | LAB202 |
| Constructor | BOBST |
| Modello | M6 |
| Año | 2015 |
| Number of colors | 9 |
| Web width (mm) | 670 |
| Print width (mm) | 660 |
| Print repeat range (mm) | 304,8 - 609,6 |
| Drying | 9 UV new AMS lamps |
| Unwinder | Turret non stop, max diameter 1000mm |
| Rewinder | Turret non stop, max diameter 1000mm |
| Note | Suitable for food industry white chamber conditions. 1.Min and max thickness: 12my PET films upto 250my films and 400gsm paper BST Powerscope 4000 + AVT HELIOS II 1.23 1.24 Tools Single side corona F&B Single side web cleaner 9UV flexo stations with V-Flower technology Auto pressure setting Auto sleeve change with job preparation while the machine is printing Industrial chiller Longitudinal register control 9 flexo pumps 3 web break detectors 100% quality control and inspection system AVT Helios II 9 print tutor: one smart camera on each print head for longitudinal and side register control. The same camera controls also the print pressure through AVT Helios II camera. Web Turn Bar slidable on rails Cold Foil unit, movable on rails 162 printing sleeves 24 APEX anilox rolls (some GTT for REVO) Plate mounter with video |
GALLUS RCS330
-
Código Máquina: LAB245
-
Año: 2016
-
Web width (mm): 345
ETI Metronome 1308
-
Código Máquina: LAB210
-
Año: 2003
-
Web width (mm): 335
ARSOMA EM410
-
Código Máquina: LAB237
-
Año: 1991
-
Web width (mm): 413
NILPETER FA3300
-
Código Máquina: LAB249
-
Año: 2002
-
Web width (mm): 333
LOMBARDI FLEXOLINE 330
-
Código Máquina: LAB241
-
Año: 2009
-
Web width (mm): 350
PCMC X 10
-
Código Máquina: LAB52
-
Año: 2003
-
Web width (mm): 267
