- Código Máquina
- FL0632
- Constructor
- FLEXOTECNICA
- Modello
- 10NG
- Año
- 2009
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1260
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 900
- Unwinder type
- turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 drying zones , 4 fans , 2 Gas burners
- Videocamera
- AVT Jupiter Dual Mode with register and defects control
- Web guides
- Fife before and after the printing unit

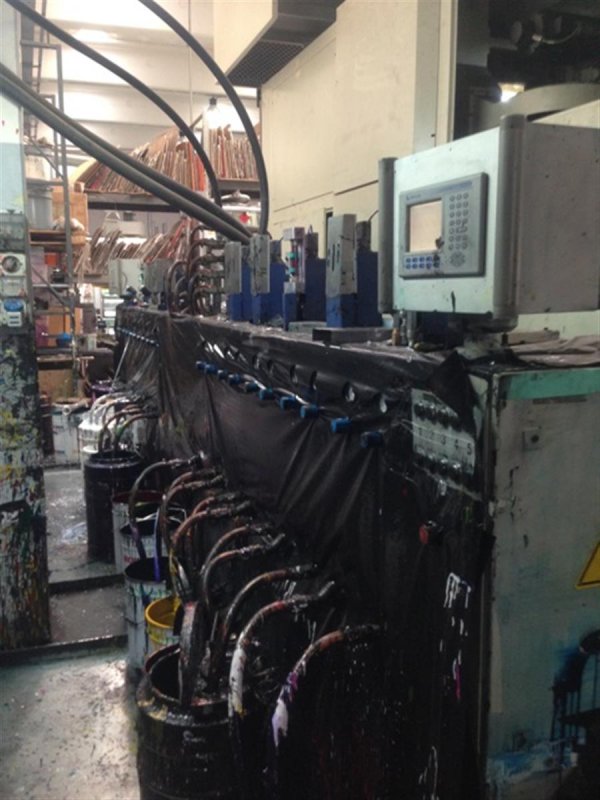

- Vyscosity control
- Gama
- Washing system
- Spedy Clean (cycle 4 min)
- Inking system
- closed chamber doctor blades
- Anilox
- Ceramic laser engraved Praxair 1x160linesV14, 1x160xV13, 1x169xV10, 1x250xV7,5, 1x280xV7, 2x 320xV6,5, 2x420xV5, 1x460xV5
- Print Sleeves
- Totally 30: 10x330mm, 10x630mm and 10x at choice
- Note
- Thickness plates 1.14mm ; Material : Film ; Ldpe; PP; PET, Nylon; Paper; metallized films
| Código Máquina | FL0632 |
| Constructor | FLEXOTECNICA |
| Modello | 10NG |
| Año | 2009 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1260 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 900 |
| Unwinder type | turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 drying zones , 4 fans , 2 Gas burners |
| Videocamera | AVT Jupiter Dual Mode with register and defects control |
| Web guides | Fife before and after the printing unit |
| Vyscosity control | Gama |
| Washing system | Spedy Clean (cycle 4 min) |
| Inking system | closed chamber doctor blades |
| Anilox | Ceramic laser engraved Praxair 1x160linesV14, 1x160xV13, 1x169xV10, 1x250xV7,5, 1x280xV7, 2x 320xV6,5, 2x420xV5, 1x460xV5 |
| Print Sleeves | Totally 30: 10x330mm, 10x630mm and 10x at choice |
| Note | Thickness plates 1.14mm ; Material : Film ; Ldpe; PP; PET, Nylon; Paper; metallized films |
