- Código Máquina
- FL854

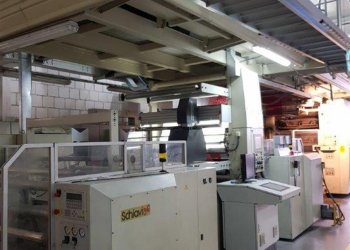

- Constructor
- SCHIAVI
- Modello
- SIGMA
- Año
- 2002
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans
- Videocamera
- BST Premius
- Web guides
- BST
- Vyscosity control
- Yes automatic New Celio
- Inking system
- Closed chamber doctor blades
- Anilox
- 26 anilox sleeves
- Print Sleeves
- 144
Código Máquina | FL854 |
Constructor | SCHIAVI |
Modello | SIGMA |
Año | 2002 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1250 |
Print width (mm) | 1200 |
Min print repeat (mm) | 300 |
Max print repeat (mm) | 760 |
Unwinder type | Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Automatic turret, non / stop with cutting and clamping delta - model 509 on 152mm ID cores |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones 4 fans |
Videocamera | BST Premius |
Web guides | BST |
Vyscosity control | Yes automatic New Celio |
Inking system | Closed chamber doctor blades |
Anilox | 26 anilox sleeves |
Print Sleeves | 144 |
