** SOLD **

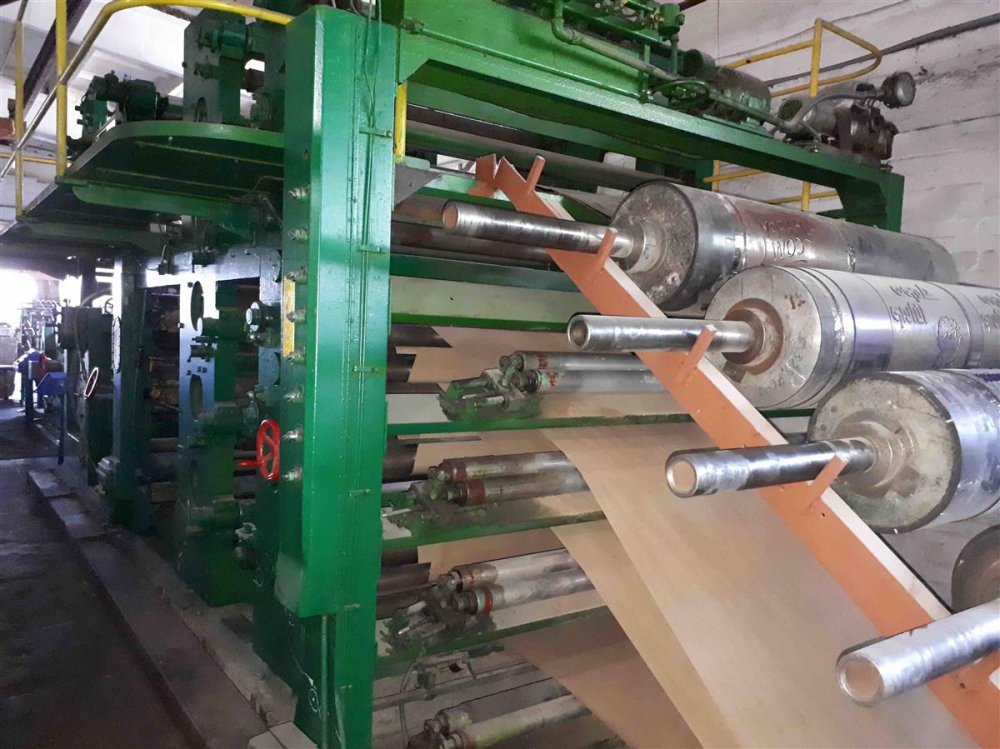

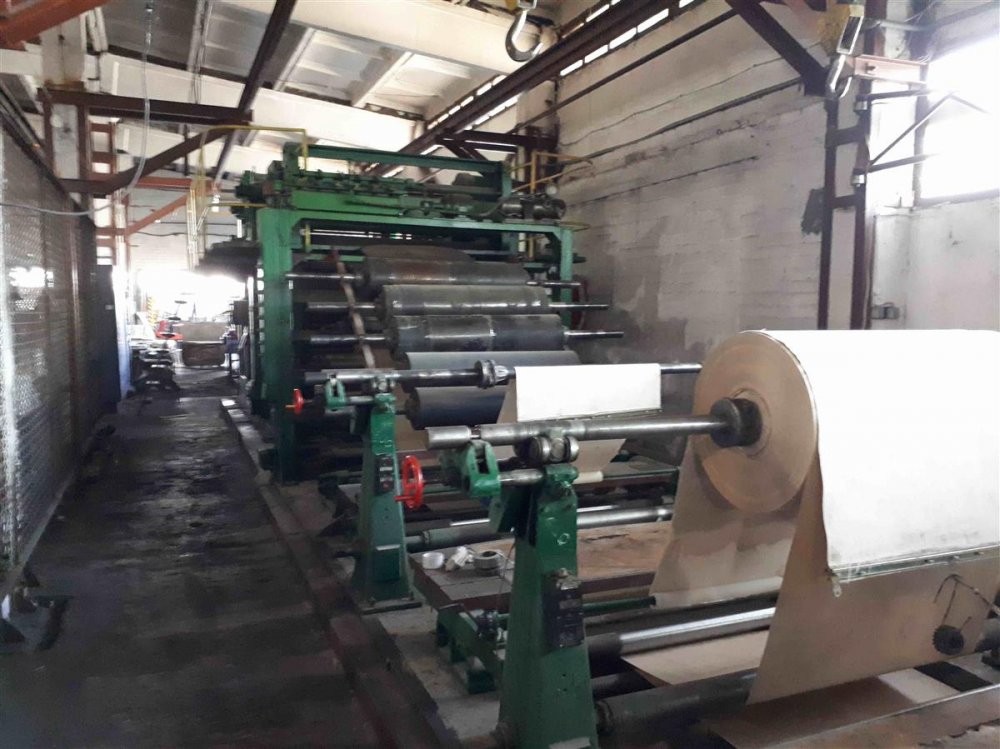

Paper sack making machines are made up from a tuber and a bottomer and are used to produce multilayer paper for industrial sacks. These are used for several applications from cement bags, to chemicals, food and seed packagings.
Ask more informations
about a similar one
- Machine Code
- SA13
- Manufacturer
- Gartemann & Hollmann
- Modello
- Tuber
- Type
- Tuber
- Note

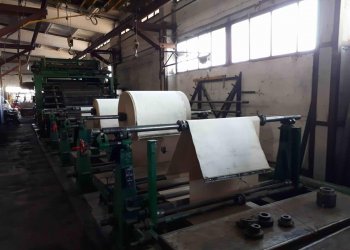

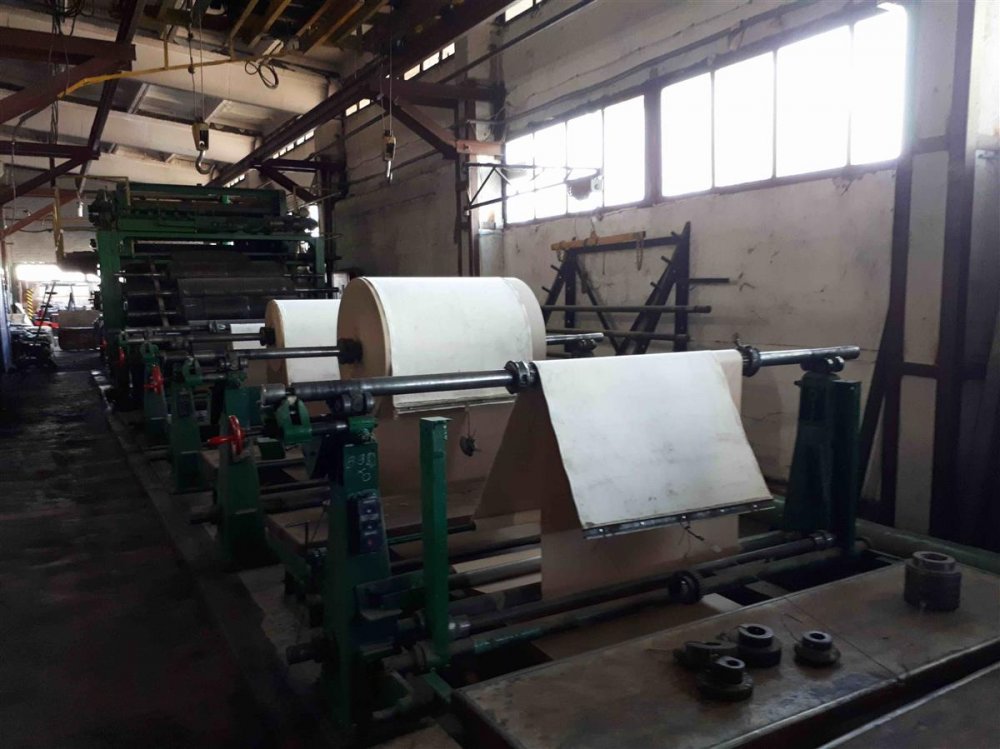

- Paper grammage: 60-120 g / m2 Tube length: 440-1360 mm. Tube width: 330-800 mm. Number of colours: 2 Number of paper plies: max. 4 Paper roll width: 400 -1540 mm. Speed: 80-250 pcs / min. in normal mode, a maximum of 300 pcs / min. (depending on the number of plies and the quality of the paper) The total power consumption is 53 kW / h. Auto-Counter system The dimensions are 2,7x2,5x3,5 m. 2-colour flexographic printing unit 4 recoiling racks for rolls up to Ø1150 mm. with axial adjustment FIFE paper web alignment system Units of preliminary pulling-tension of a paper web Units of transverse glutinous sizing up to 4 plies of paper Units of longitudinal gluing
| Machine Code | SA13 |
| Manufacturer | Gartemann & Hollmann |
| Modello | Tuber |
| Type | Tuber |
| Note | Paper grammage: 60-120 g / m2 Tube length: 440-1360 mm. Tube width: 330-800 mm. Number of colours: 2 Number of paper plies: max. 4 Paper roll width: 400 -1540 mm. Speed: 80-250 pcs / min. in normal mode, a maximum of 300 pcs / min. (depending on the number of plies and the quality of the paper) The total power consumption is 53 kW / h. Auto-Counter system The dimensions are 2,7x2,5x3,5 m. 2-colour flexographic printing unit 4 recoiling racks for rolls up to Ø1150 mm. with axial adjustment FIFE paper web alignment system Units of preliminary pulling-tension of a paper web Units of transverse glutinous sizing up to 4 plies of paper Units of longitudinal gluing |
