Film bag making machines are used to weld a web or a tubular of plastic film, typically PE or PP, into bags. Their construction and equipment may be very different depending on: the type of bags they need to produce, the type of handle they can apply and the way in which these bags are delivered.
Ask more informations
- Machine Code
- FI568
- Manufacturer
- GUR-IS
- Year
- 2005
- Type of delivery
- Conveyor table
- Type of handle
- No handle
- Type of sealing/bags
- Combi (side and bottom)
- Type of bags
- Open mouths
- Working width (mm)
- 1100
- Number of lanes
- 1
- Bag length
- min. 120mm, max.2500mm
- Cycle / min
- 140 Cycle/min
- Note

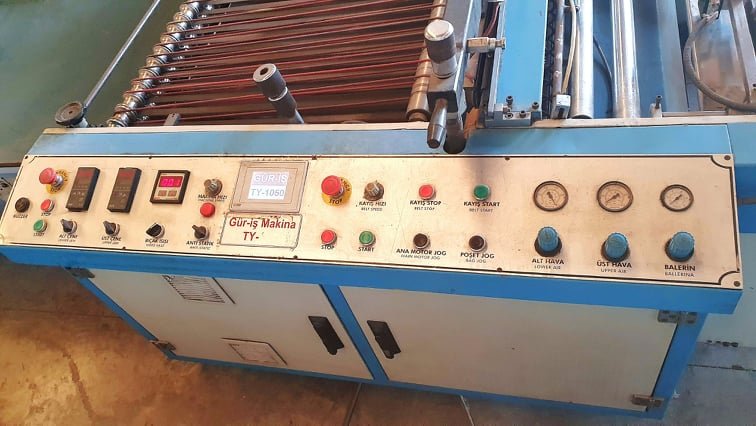

- Sealing bar Fast change of the welding bars, ideal for the production of two kind of bags. Equiped with 2 welding bars (bottom, perlada) Servo Motor Driven Punch 4 folding pleat bottom side Knife central and side System base support for 2 rolls operator panel PLC systems Complete knife belt with knife holder Photocell Antistatic bar
| Machine Code | FI568 |
| Manufacturer | GUR-IS |
| Year | 2005 |
| Type of delivery | Conveyor table |
| Type of handle | No handle |
| Type of sealing/bags | Combi (side and bottom) |
| Type of bags | Open mouths |
| Working width (mm) | 1100 |
| Number of lanes | 1 |
| Bag length | min. 120mm, max.2500mm |
| Cycle / min | 140 Cycle/min |
| Note | Sealing bar Fast change of the welding bars, ideal for the production of two kind of bags. Equiped with 2 welding bars (bottom, perlada) Servo Motor Driven Punch 4 folding pleat bottom side Knife central and side System base support for 2 rolls operator panel PLC systems Complete knife belt with knife holder Photocell Antistatic bar |
ELBA SU94E-13
-
Machine Code: FI553
-
Year: 2007
-
Working width (mm): 1200

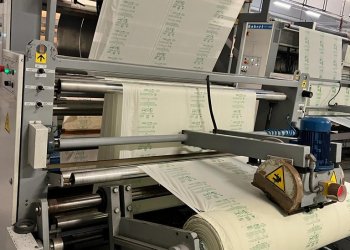

MOBERT Roller 130E 6M
-
