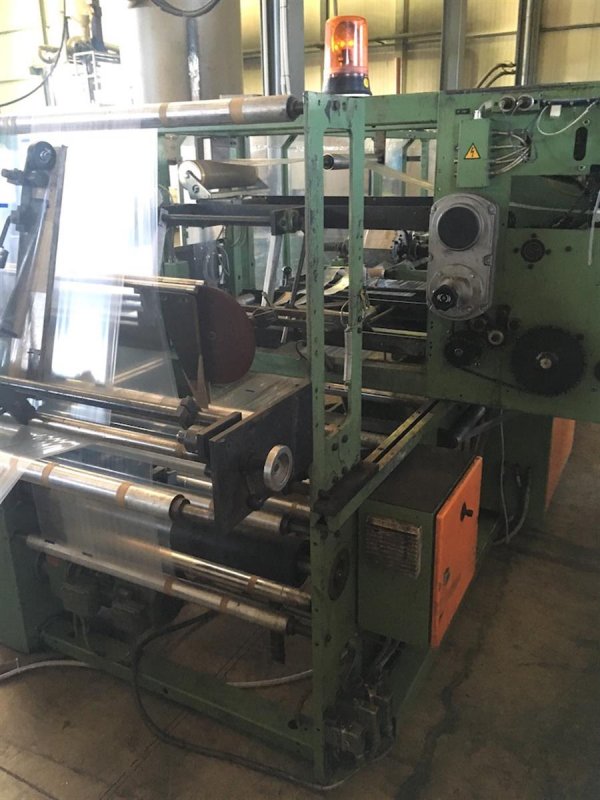

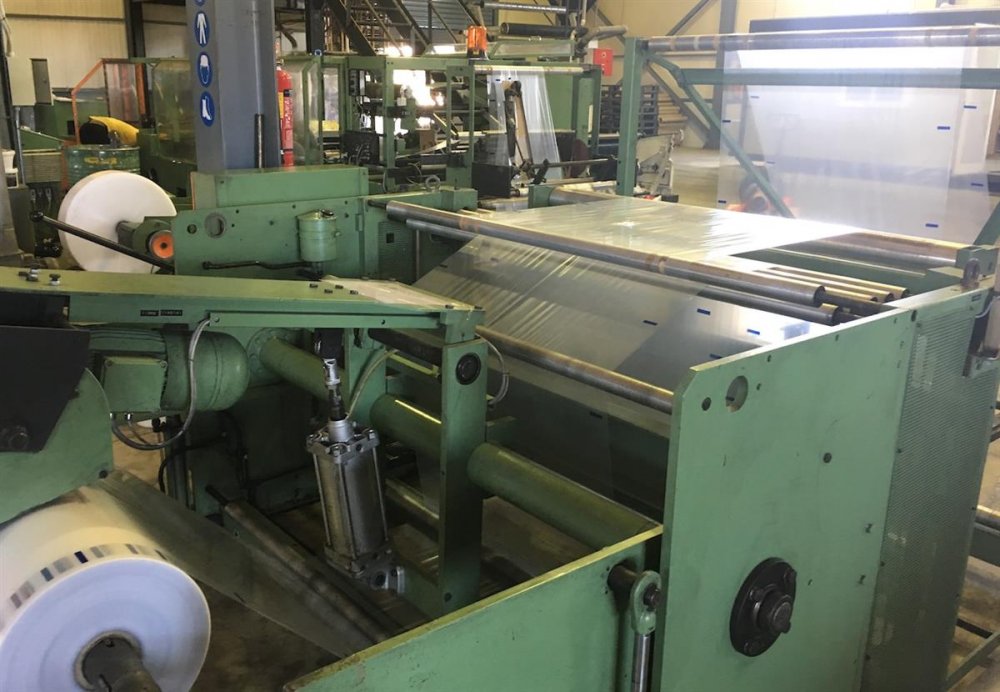

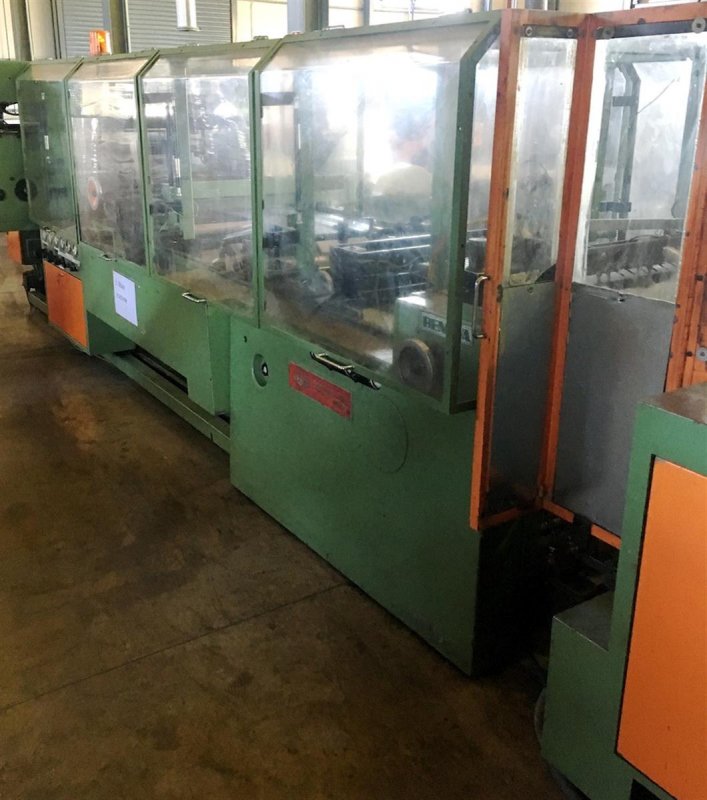

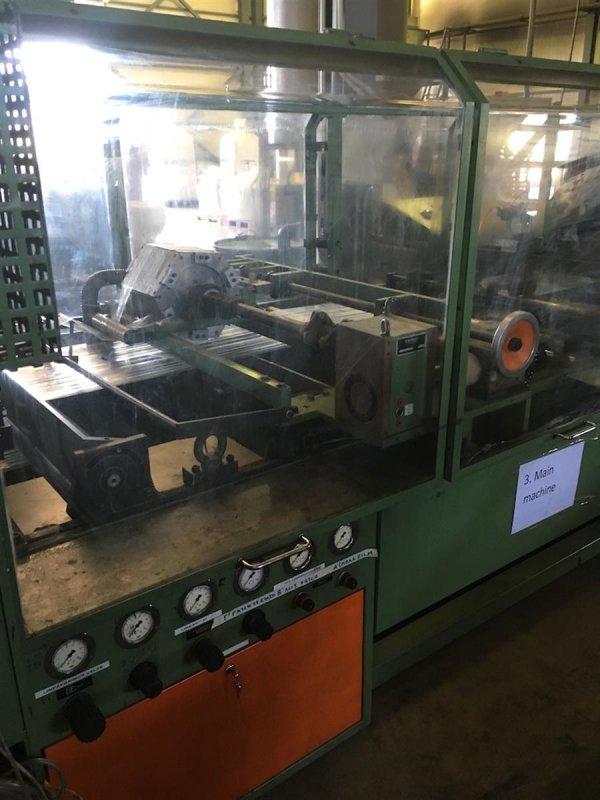

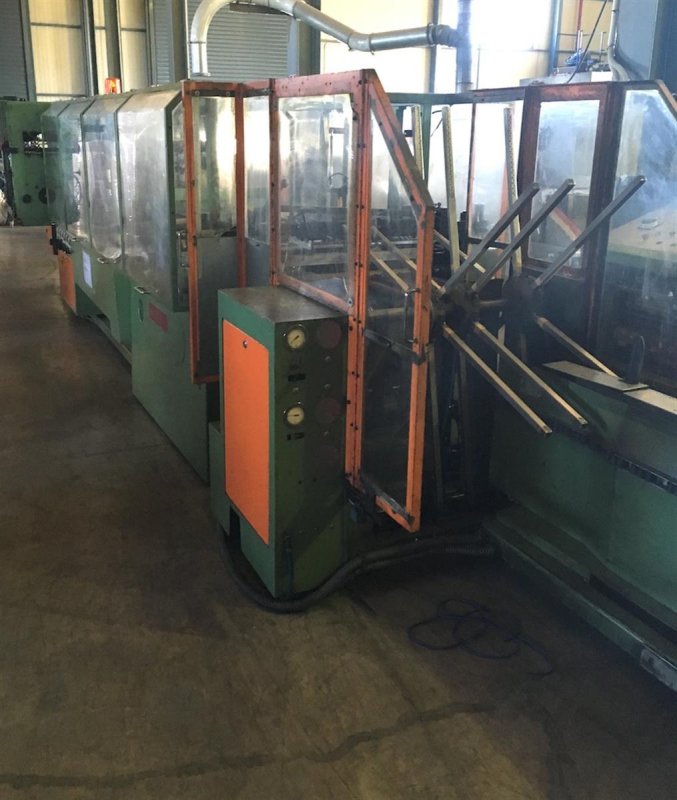

Film bag making machines are used to weld a web or a tubular of plastic film, typically PE or PP, into bags. Their construction and equipment may be very different depending on: the type of bags they need to produce, the type of handle they can apply and the way in which these bags are delivered.
Ask more informations
- Machine Code
- FI381
- Manufacturer
- LEMO
- Modello
- DKT Patch handle 850
- Year
- 1998
- Type of delivery
- Wicketer)
- Type of handle
- Patch handle
- Type of sealing/bags
- Side weld
- Type of bags
- Wicketers
- Working width (mm)
- 850
- Bag length
- 750 mm
- Bag width
- 600 mm
- Cycle / min
- max 150 pieces/min (always depending on the product)
- Unwinder
- Max. Reel diameter : max. 1000 mm
- Note
- - Type of production : Double-Strength-Handle Carrier Bag with Inside Patch as Handle Reinforcement (hot melt) - Sealing width : max. 850 mm - Draw length : min. 220 mm / max. 600 mm - Linear film speed : 60 m/min. - Unwind width : 1600 mm Print repeat control, folding triangle. It is equipped with glue hot melt system for the patch handle, not welded. The machine is with servo.
| Machine Code | FI381 |
| Manufacturer | LEMO |
| Modello | DKT Patch handle 850 |
| Year | 1998 |
| Type of delivery | Wicketer) |
| Type of handle | Patch handle |
| Type of sealing/bags | Side weld |
| Type of bags | Wicketers |
| Working width (mm) | 850 |
| Bag length | 750 mm |
| Bag width | 600 mm |
| Cycle / min | max 150 pieces/min (always depending on the product) |
| Unwinder | Max. Reel diameter : max. 1000 mm |
| Note | - Type of production : Double-Strength-Handle Carrier Bag with Inside Patch as Handle Reinforcement (hot melt) - Sealing width : max. 850 mm - Draw length : min. 220 mm / max. 600 mm - Linear film speed : 60 m/min. - Unwind width : 1600 mm Print repeat control, folding triangle. It is equipped with glue hot melt system for the patch handle, not welded. The machine is with servo. |

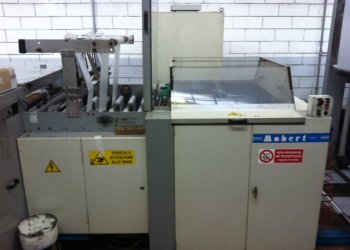

MOBERT ROLLER 110-E /SHP 2M -AUT
-
