Machines may have different constructions depending on: the type of material, its dimensions and the key performances required.
Ask more informations
- Machine Code
- SR562
- Manufacturer
- KAMPF
- Modello
- RASANTA B
- Year
- 1984
- Working width (mm)
- 1680
- Materials
- Plastic/ cardboard
- Speed
- 500

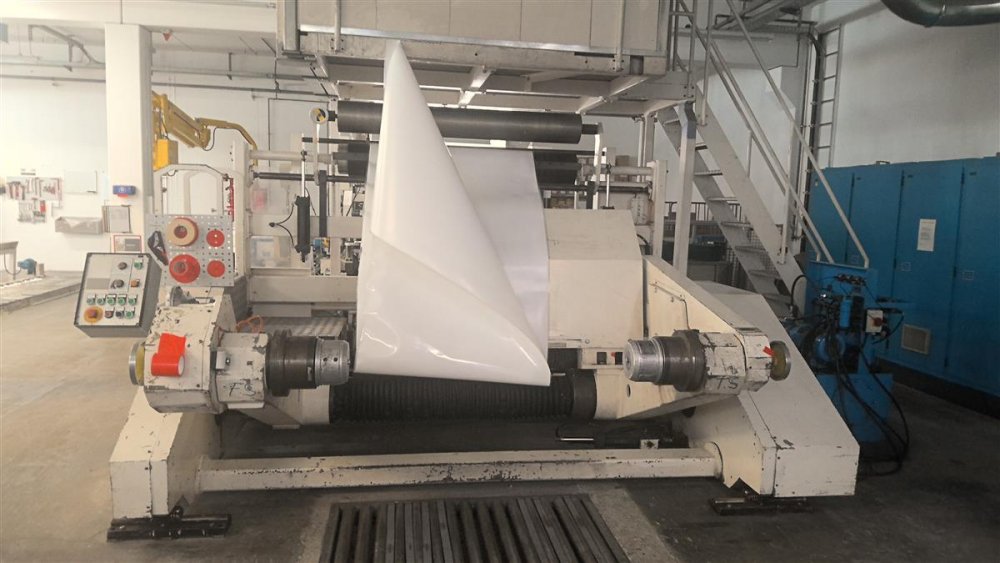

- Unwinder type
- Shaftless
- Max diameter reel unwinder
- 1580
- Rewinder type
- Center driven with independent arms
- Max diameter reel rewinder
- 1150
- Rewinder description
- Single
- Min slit width
- 150mm

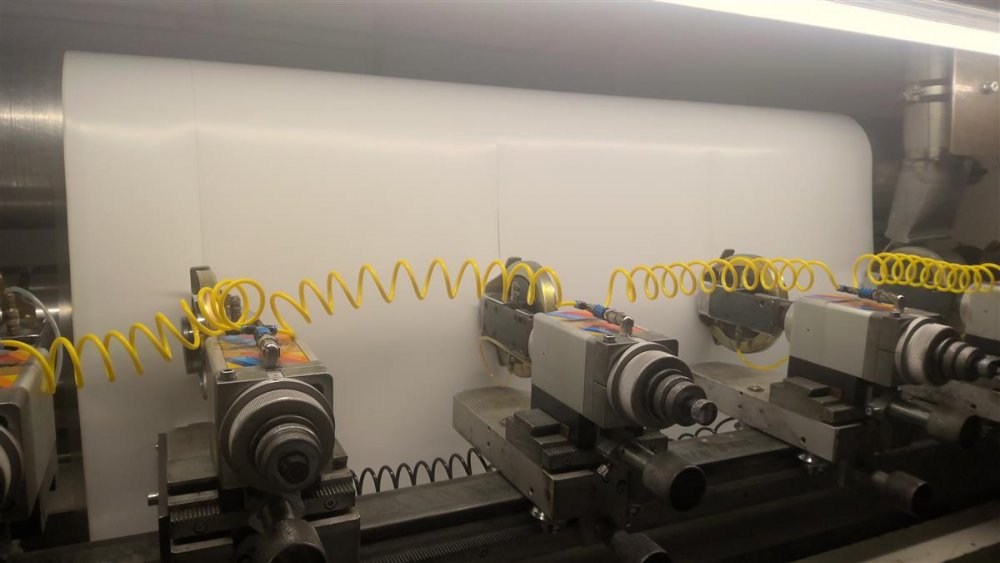

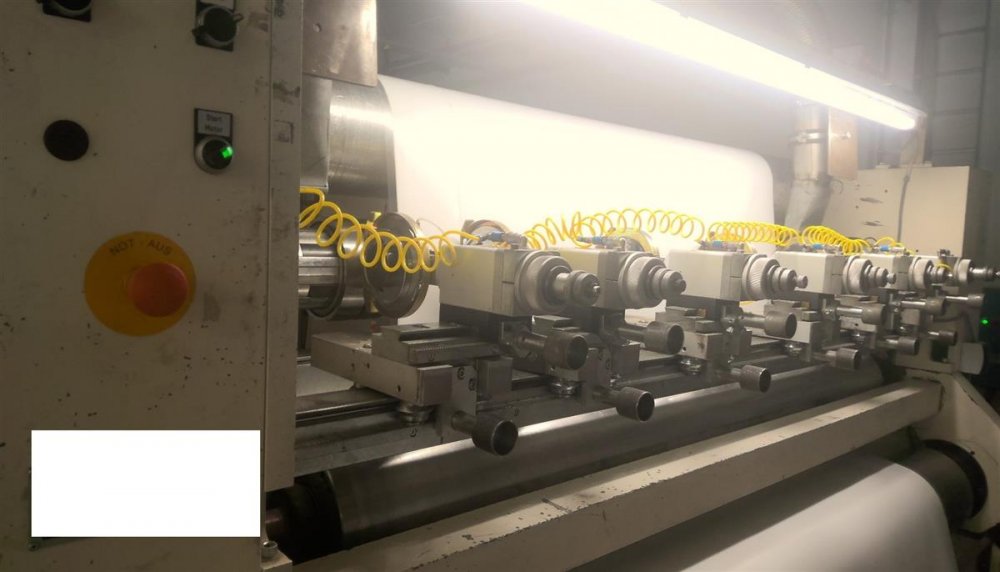

- Knives
- shear knifes type, shaft mounted with mechanical lock
- Note
- Dimensions 8500 x 2500 x 7200mm Electrical supply30 kw/400V S-DRIVE main drive system Slitting section: -- maxim number of slits: 6 Unwinder : - max reel weight : 1200kg -core material : plastic/ cardboard -separate arm movement -cores 200mm -hydraulic reel pick up -minm reel pick up height from the floor leverl 200mm - no splice table - driven motor tension control - edge controlled (pneumatic) web guide type - idle rollers anodised aluminium Rewinder : -cores 76 & 152mm
| Machine Code | SR562 |
| Manufacturer | KAMPF |
| Modello | RASANTA B |
| Year | 1984 |
| Working width (mm) | 1680 |
| Materials | Plastic/ cardboard |
| Speed | 500 |
| Unwinder type | Shaftless |
| Max diameter reel unwinder | 1580 |
| Rewinder type | Center driven with independent arms |
| Max diameter reel rewinder | 1150 |
| Rewinder description | Single |
| Min slit width | 150mm |
| Knives | shear knifes type, shaft mounted with mechanical lock |
| Note | Dimensions 8500 x 2500 x 7200mm Electrical supply30 kw/400V S-DRIVE main drive system Slitting section: -- maxim number of slits: 6 Unwinder : - max reel weight : 1200kg -core material : plastic/ cardboard -separate arm movement -cores 200mm -hydraulic reel pick up -minm reel pick up height from the floor leverl 200mm - no splice table - driven motor tension control - edge controlled (pneumatic) web guide type - idle rollers anodised aluminium Rewinder : -cores 76 & 152mm |
