Some sheeters may be capable to cut more layers of web in one passage. Others may be equipped to cut sheets in register with a pre-printed material.
Ask more informations
- Machine Code
- SS52
- Manufacturer
- MILLTEX
- Year
- 2002
- Width (mm)
- 1600
- Materials
- plastic sheet paper and board
- Note

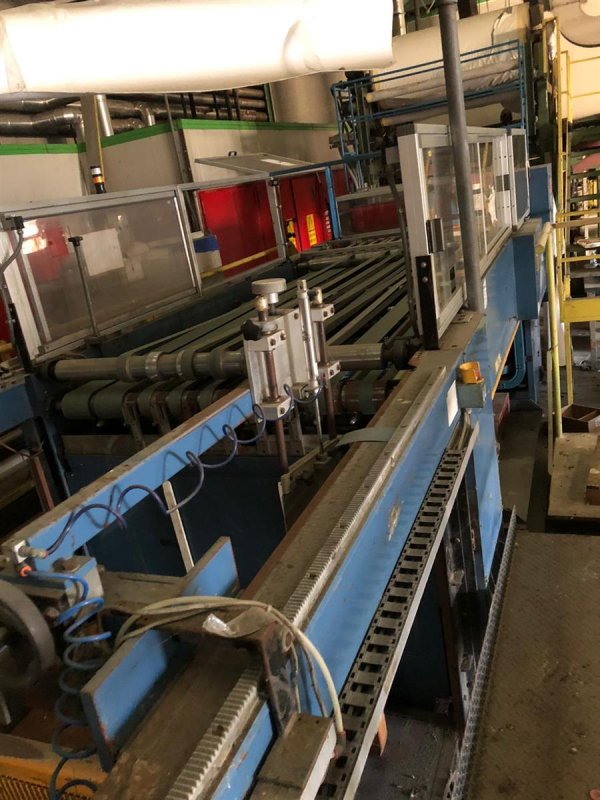

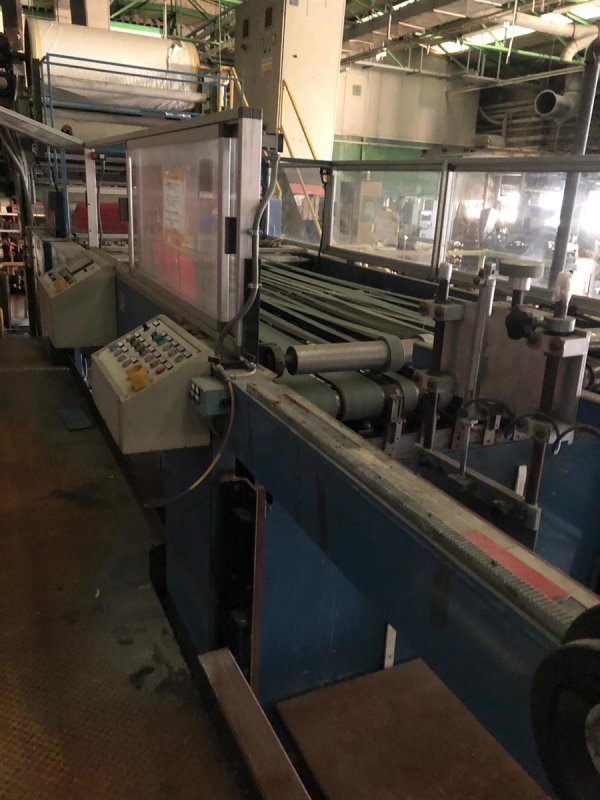

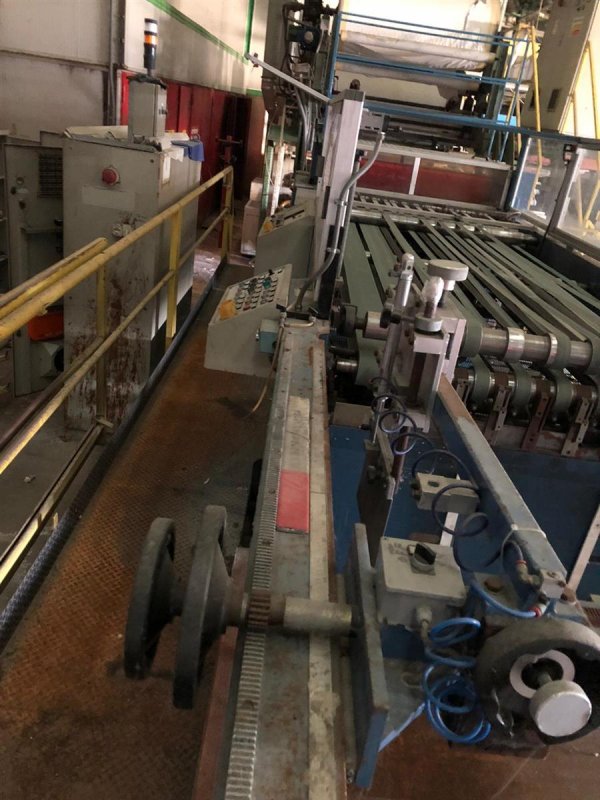

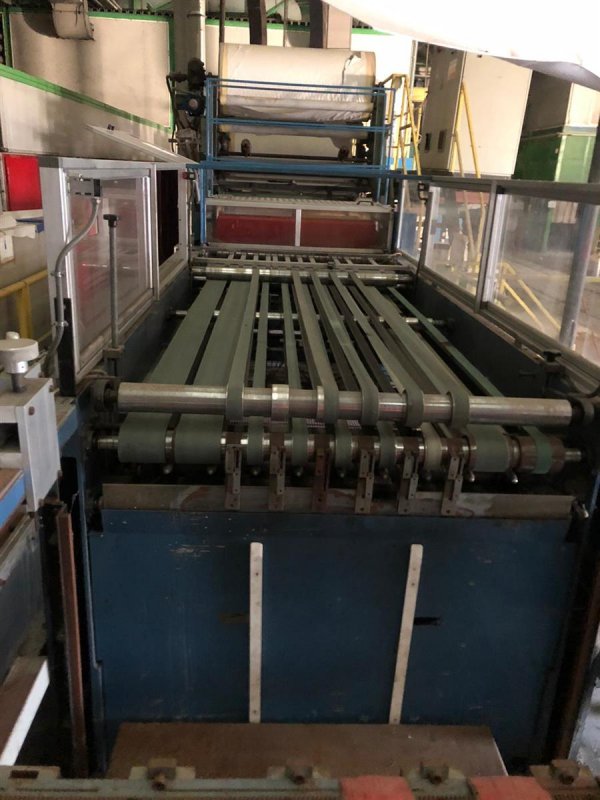

- Pair of feeding cylinders, tension regulation through load cells, cutting equipment composed of fixed lower knife and rotating upper knife, transport unit composed of tow rollers and flat belts. Stacking on pantograph, which is continuously lowered, keeping the stacking level constant. Intermediate stacking equipment when changing pallets. Evacuation equipment for collecting waste in a box. Sheets: height 1.030-1.300 mm, length 850-1.580 mm, thickness 140 - 1.000 micron
| Machine Code | SS52 |
| Manufacturer | MILLTEX |
| Year | 2002 |
| Width (mm) | 1600 |
| Materials | plastic sheet paper and board |
| Note | Pair of feeding cylinders, tension regulation through load cells, cutting equipment composed of fixed lower knife and rotating upper knife, transport unit composed of tow rollers and flat belts. Stacking on pantograph, which is continuously lowered, keeping the stacking level constant. Intermediate stacking equipment when changing pallets. Evacuation equipment for collecting waste in a box. Sheets: height 1.030-1.300 mm, length 850-1.580 mm, thickness 140 - 1.000 micron |
STRACHAN & HENSHAW
-
Machine Code: SS80
-
Year: 1985
-
Width (mm): 1300
WINDMÖLLER & HÖLSCHER 9210
-
Machine Code: SS77
-
Year: 1980
-
Width (mm): 830
MANZONI TCT 100
-
Machine Code: SS70
-
Year: 1998
-
Width (mm): 1000
