** SOLD **

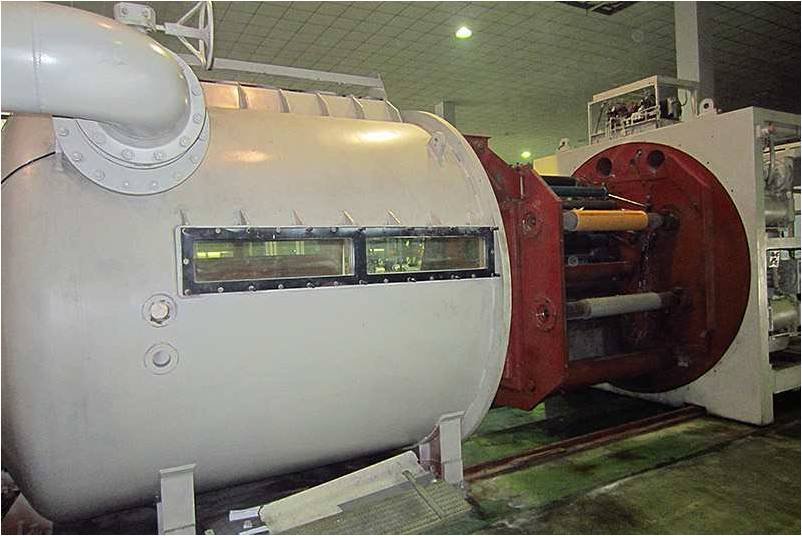

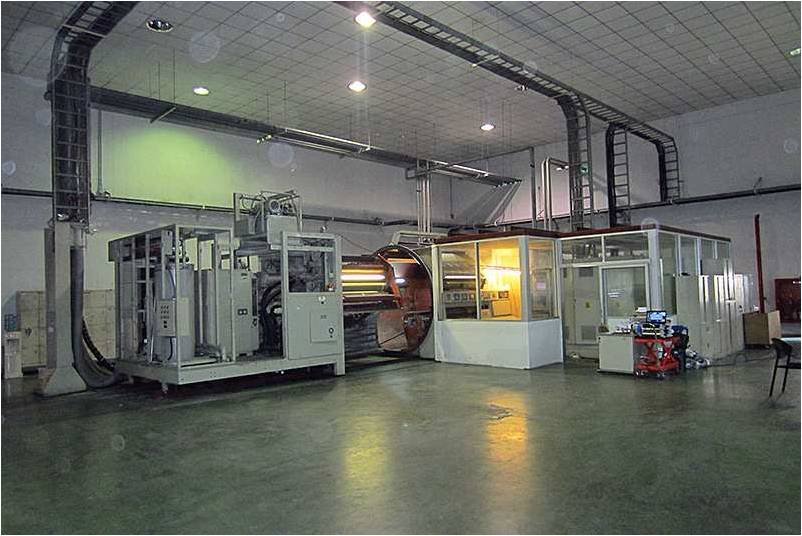

A Vacuum metallizer is used to coat a layer of aluminium (or other metals) onto a web, typically plastic film or paper.
Ask more informations
about a similar one
- Machine Code
- ME25
- Manufacturer
- GENERAL VACUUM EQUIPMENT
- Year
- 1993
- Working width (mm)
- 1250
- Max diameter reel unwinder
- 1000mm
- Max diameter reel rewinder
- 1000mm
- Evapouration Boots
- Evaporation Boat Number: 15 Dimension: 10 X 30 X 150 mm

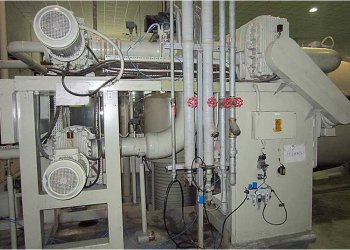

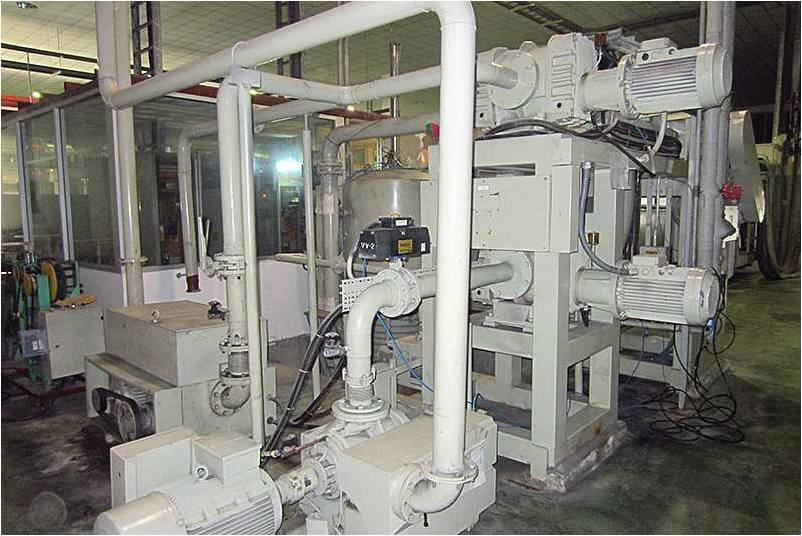

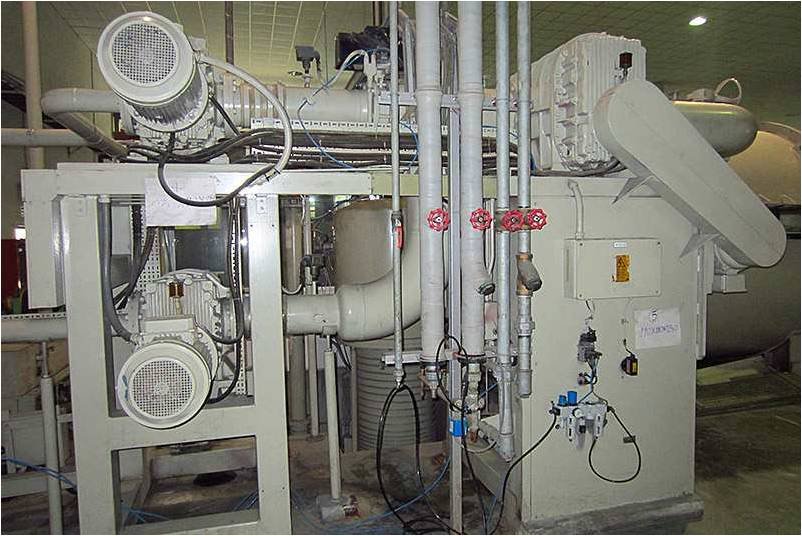

- Pumping system
- Leybold Rotary Vane Pump VAROVAC S630F/FL15 Kw Aerzen Booster Pump Model: GLB SIZE 16.13 HV 22Kw Aerzen Booster Pump Model: GLB SIZE 14.9 HV 11Kw
- Note
- Roll width min 600mm/max 1250mm; Metallize zone : Kinney Rotary Piston KT 505 LP;Holding Pump TRIVAC D40B. 1.5 Kw ;Aerzen Booster Pump Model: GLB SIZE 14.9 HV 11Kw;Diffusion VARIAN NHS -35 24Kw;Cryogenic Poly cold 1 Model: PFC 1100 HT;Cryogenic Poly cold 2 Model: PFC 1100 Hc; DC Dive 590 L Number: 6 ;SSD_Link 1 Unwind 22.6Kw 2 DTR1 8 Kw 3 Drum 6.25 Kw;Eurotherm 4 DTR2 8Kw 5 Lay on arm 6 Rewind 22.6 Kw; Cooling water :Number: 3,1.DTR 1 2 DRUM 3. DTR2; Roller Dia DTR 1 300 mm ; Drum 500 mm ; DTR 2 300 mm;HTC Eurotherm thyristor stacks Model: TU 1471; PLC Mitsubishi type AJ 71 C24-S8;Computer Siemens ;e feed Number: 1 per evaporaion boat ;AI Dia 1.6 mm ; Tension:e feed Number: 1 per evaporaion boat ;AI Dia 1.6 mm ;Number: 3 mechanically expanding shaft; Roll dimensions : width min 600mm ; max 1250mm; diameter 1000mm
| Machine Code | ME25 |
| Manufacturer | GENERAL VACUUM EQUIPMENT |
| Year | 1993 |
| Working width (mm) | 1250 |
| Max diameter reel unwinder | 1000mm |
| Max diameter reel rewinder | 1000mm |
| Evapouration Boots | Evaporation Boat Number: 15 Dimension: 10 X 30 X 150 mm |
| Pumping system | Leybold Rotary Vane Pump VAROVAC S630F/FL15 Kw Aerzen Booster Pump Model: GLB SIZE 16.13 HV 22Kw Aerzen Booster Pump Model: GLB SIZE 14.9 HV 11Kw |
| Note | Roll width min 600mm/max 1250mm; Metallize zone : Kinney Rotary Piston KT 505 LP;Holding Pump TRIVAC D40B. 1.5 Kw ;Aerzen Booster Pump Model: GLB SIZE 14.9 HV 11Kw;Diffusion VARIAN NHS -35 24Kw;Cryogenic Poly cold 1 Model: PFC 1100 HT;Cryogenic Poly cold 2 Model: PFC 1100 Hc; DC Dive 590 L Number: 6 ;SSD_Link 1 Unwind 22.6Kw 2 DTR1 8 Kw 3 Drum 6.25 Kw;Eurotherm 4 DTR2 8Kw 5 Lay on arm 6 Rewind 22.6 Kw; Cooling water :Number: 3,1.DTR 1 2 DRUM 3. DTR2; Roller Dia DTR 1 300 mm ; Drum 500 mm ; DTR 2 300 mm;HTC Eurotherm thyristor stacks Model: TU 1471; PLC Mitsubishi type AJ 71 C24-S8;Computer Siemens ;e feed Number: 1 per evaporaion boat ;AI Dia 1.6 mm ; Tension:e feed Number: 1 per evaporaion boat ;AI Dia 1.6 mm ;Number: 3 mechanically expanding shaft; Roll dimensions : width min 600mm ; max 1250mm; diameter 1000mm |
