** SOLD **

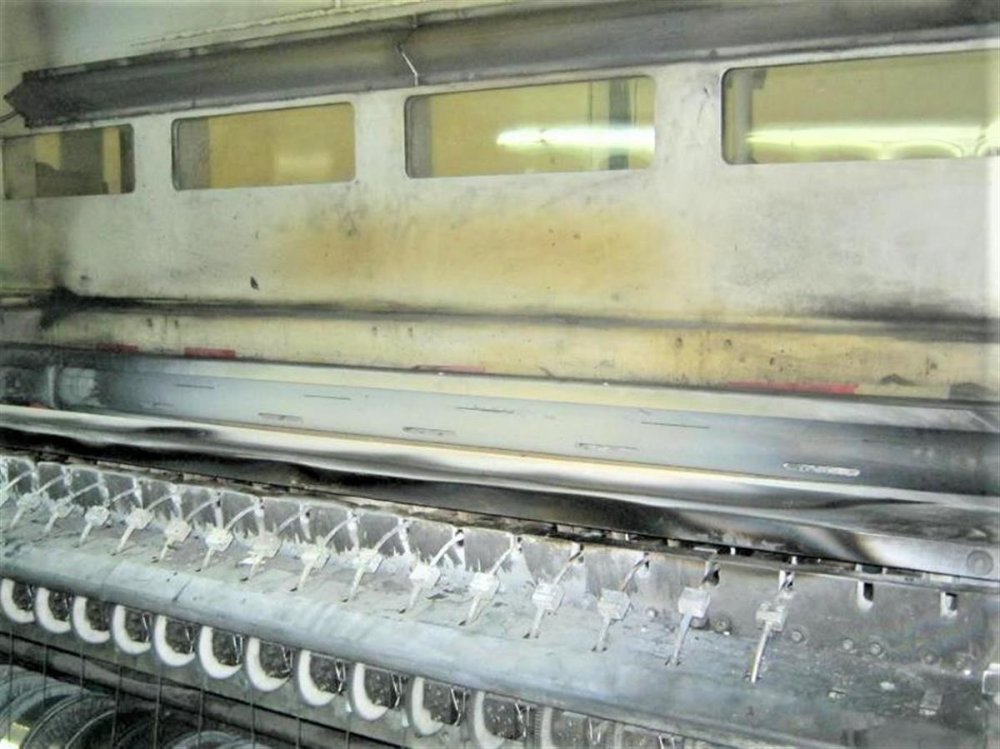

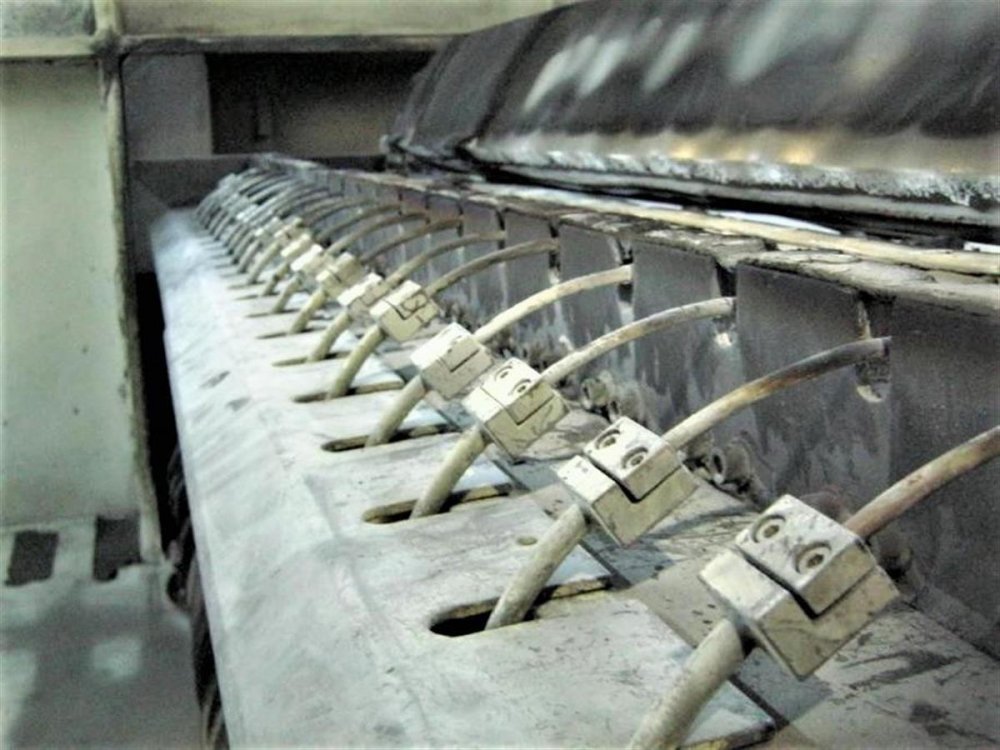

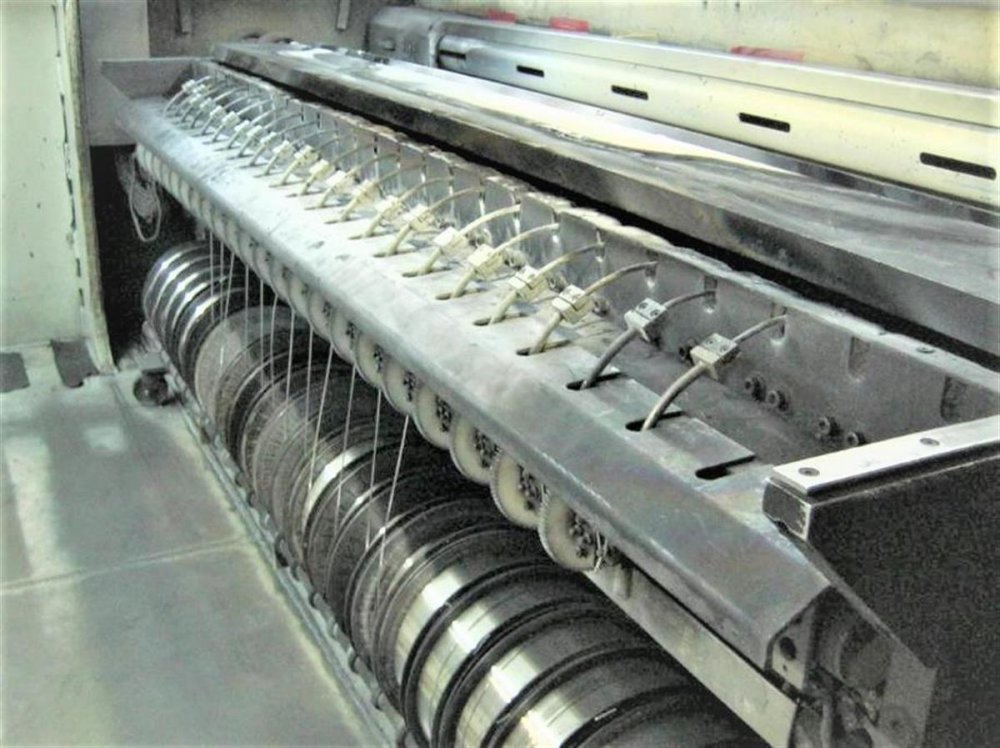

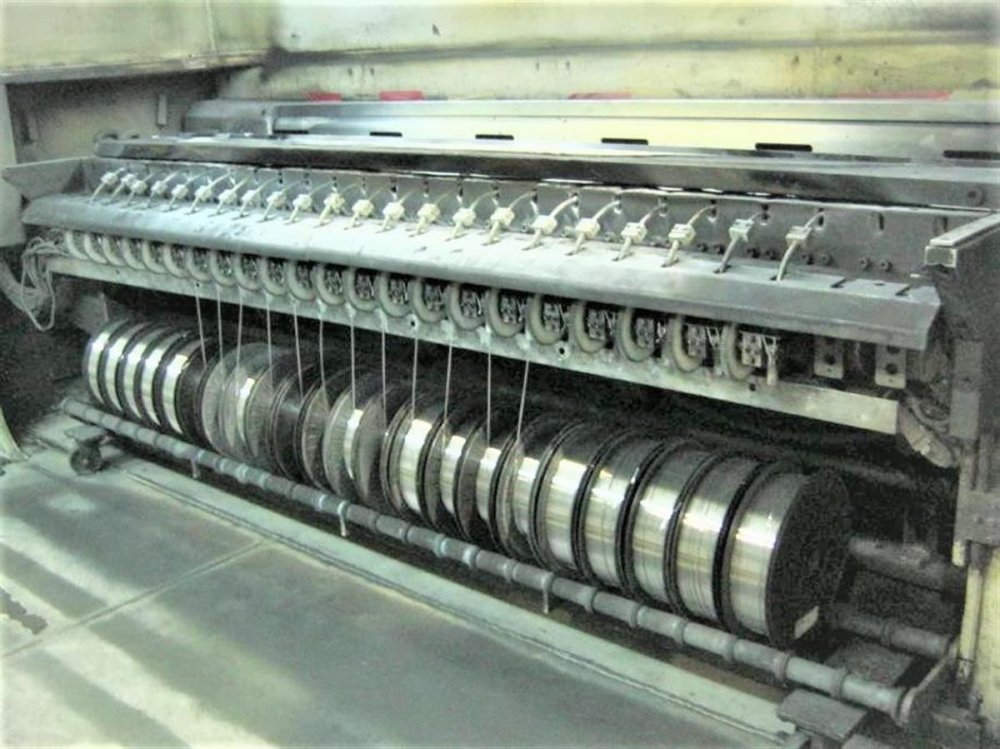

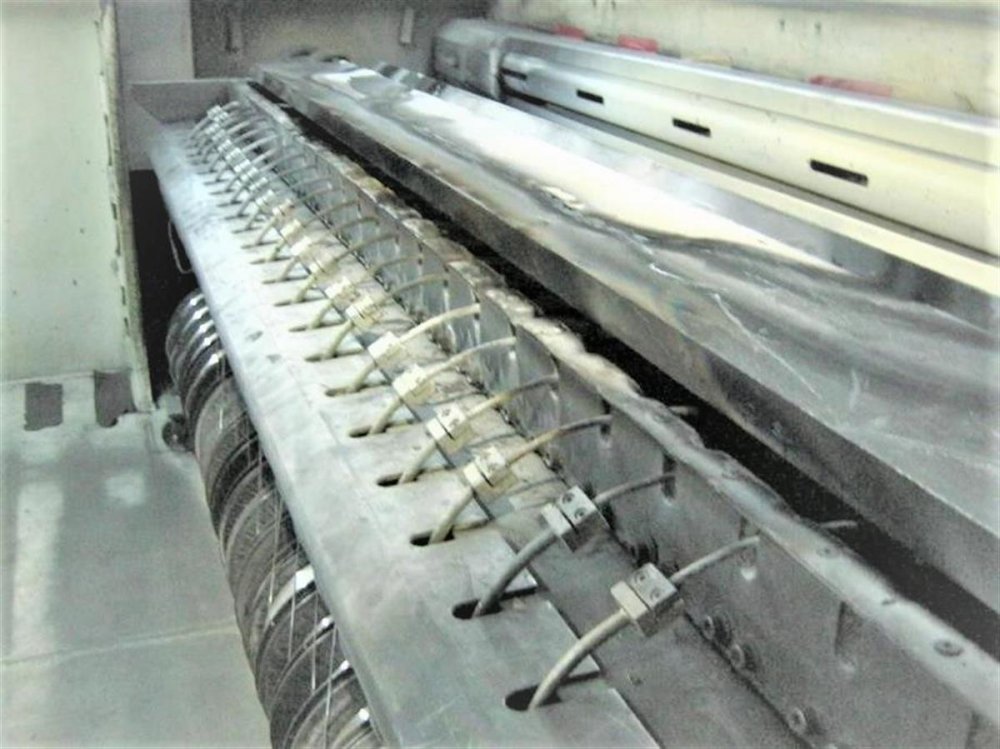

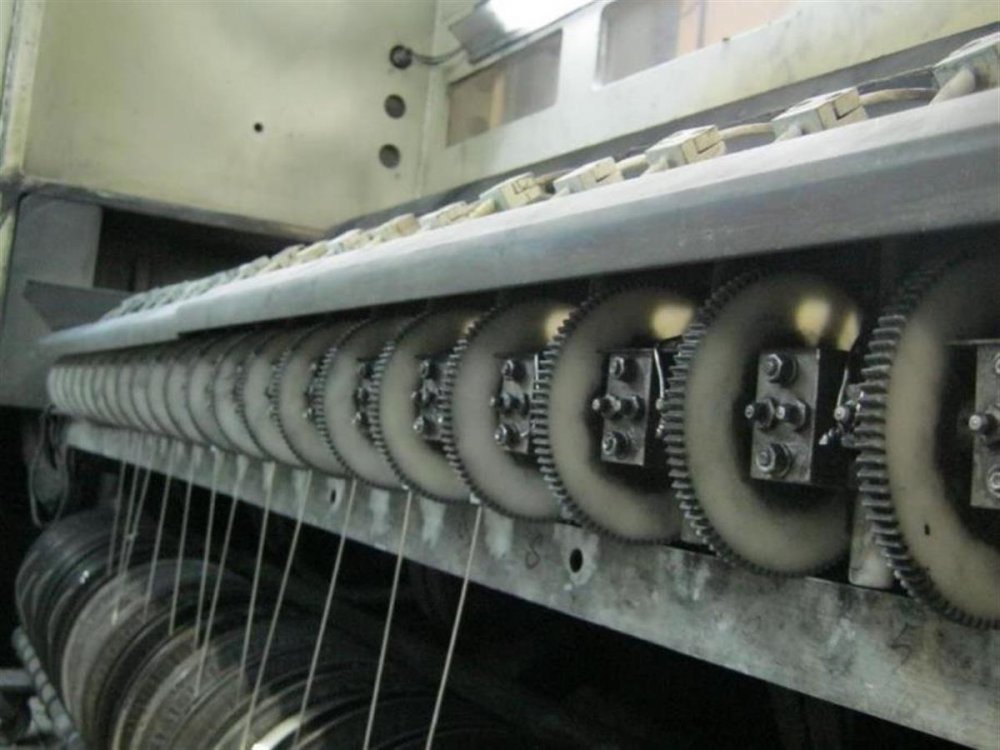

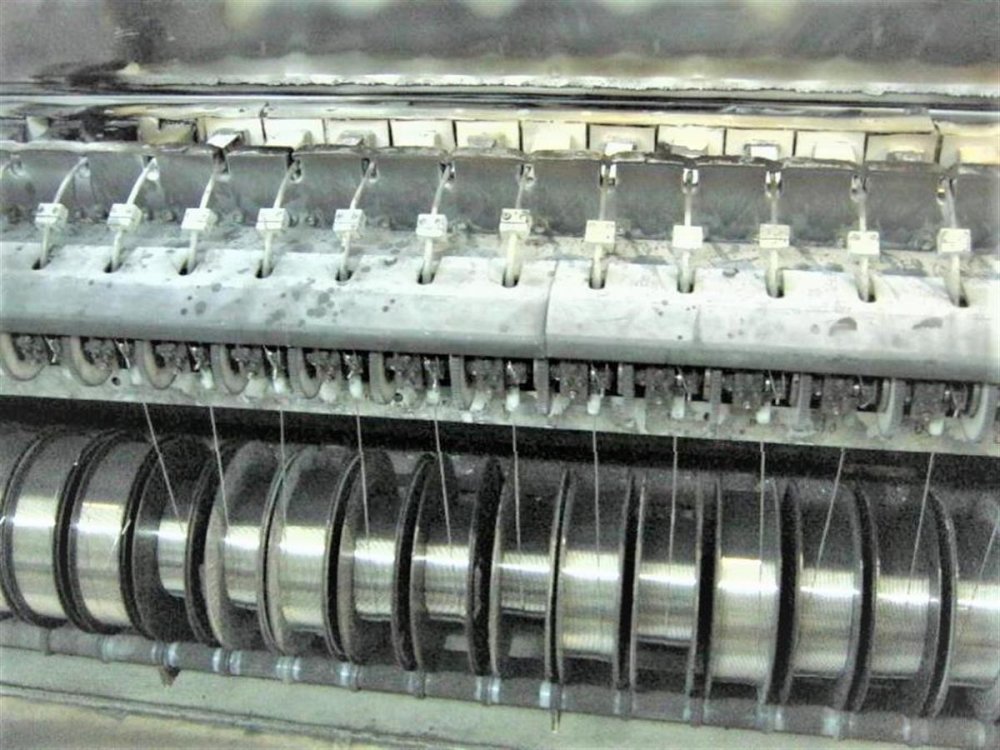

The process is carried out under high vacuum in a closed chamber, in which several boots located under a process roller are used to evaporate aluminium wires. This material condensates on the web, running close by these boots.
Ask more informations
about a similar one
- Machine Code
- ME65
- Manufacturer

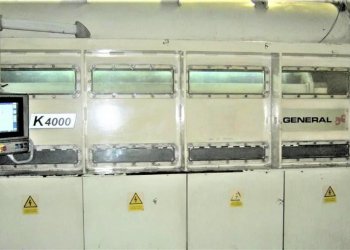

- GENERAL VACUUM EQUIPMENT
- Modello
- K 4000,
- Year
- 2007
- Working width (mm)
- 2450
- Materials
- BOPP , PET CPP
- Speed
- 1000
- Max diameter reel unwinder
- 1000
- Max diameter reel rewinder
- 1000

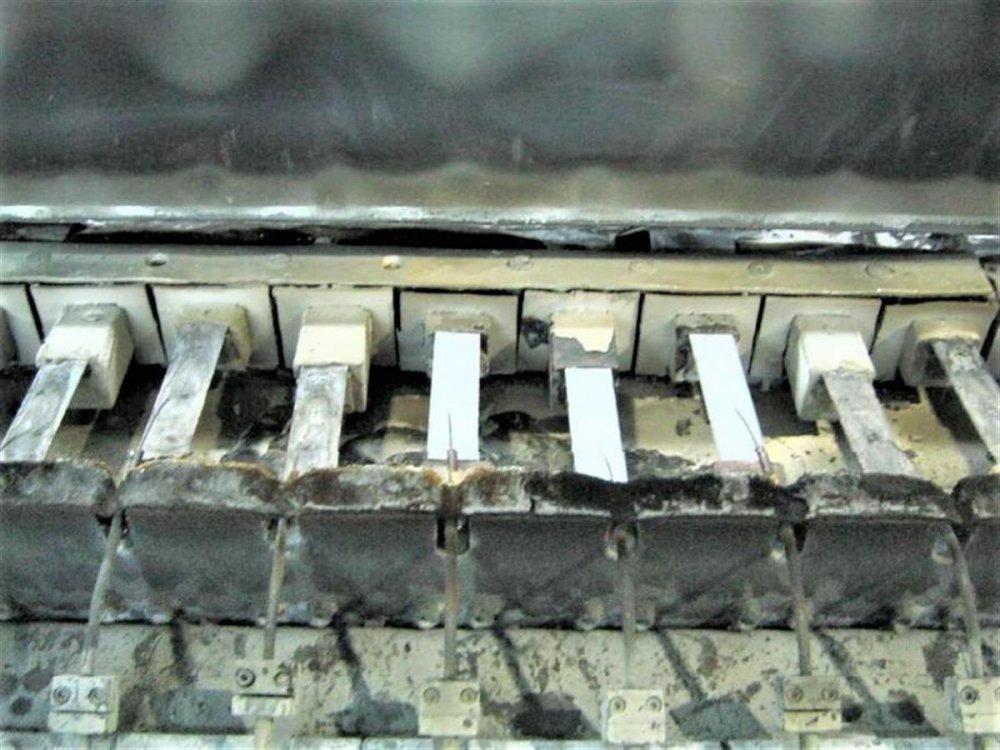

- Evapouration Boots
- 26
- Pumping down time
- 25 - 30 minutes
- Pumping system

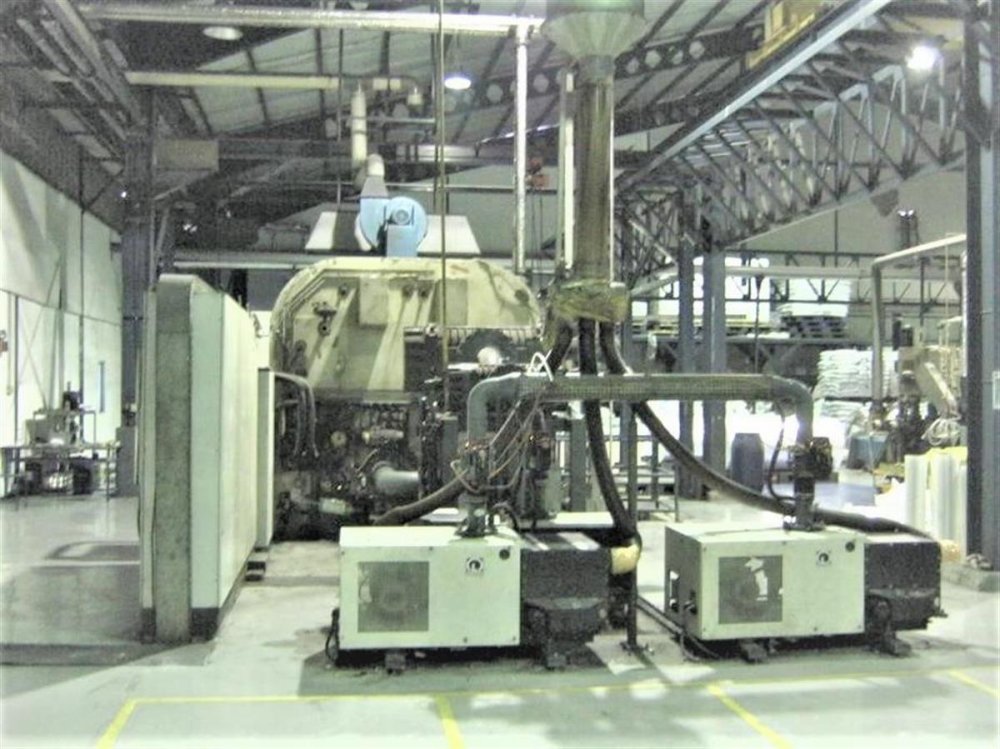

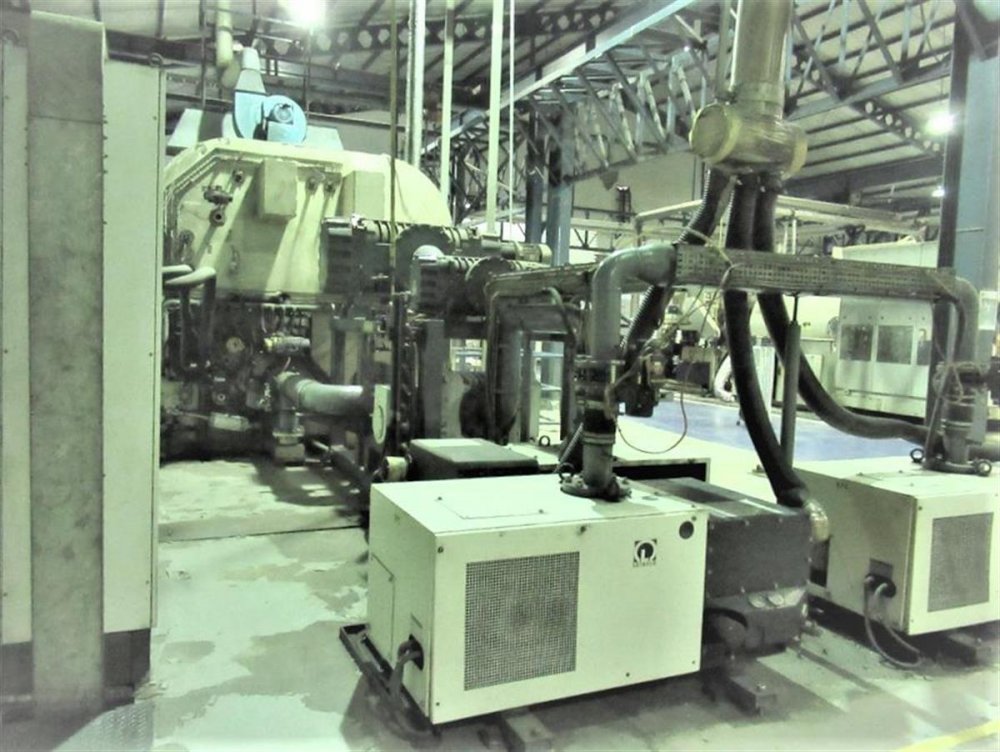

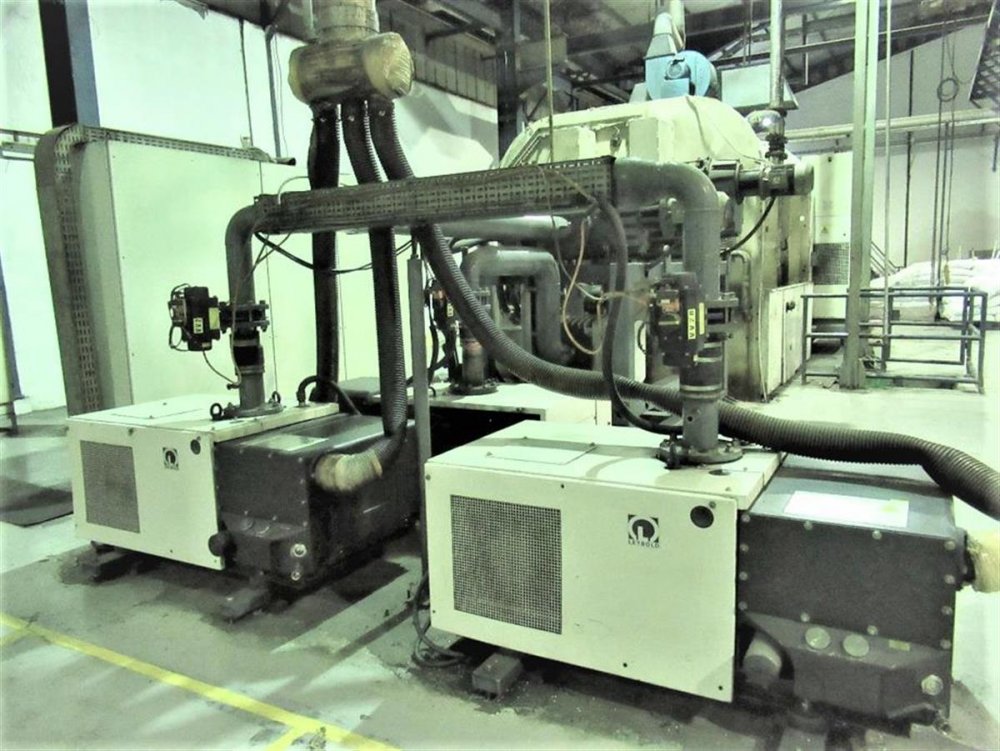

- 3 Rotiary pumps , 3 Booster pumps , 4 diffusion pumps - N. 3 Rotary Pumps SOGEVAC Oerlikon Leybold vacuum Model : SV630B ( F ) for Coating Zone and winding zone - N. 1 Booster Pump 1 Oerlikon - Leybold vacuum Type RUVAC WH4400 Cap . 4400 / 5280 m3/h Rpm ;3000 / 3600 for Coating Zone - N.2 Booster Pump TUTHILL VACUUM SYSTEMS Kinney High Vacuum Model TVB 4845 H for Winding Zone - N.3 Diffusion Pump 1 VARIAN Type HS-20 84341 – 36 400V / 3PH 5 QTS – 12 KW for Coating Zone -N.1 Diffusion Pump AGILENT TECHNOLOGIES HS-20 84341 – 36 400V / 3PH 5 QTS – 12 KW for Coating Zone

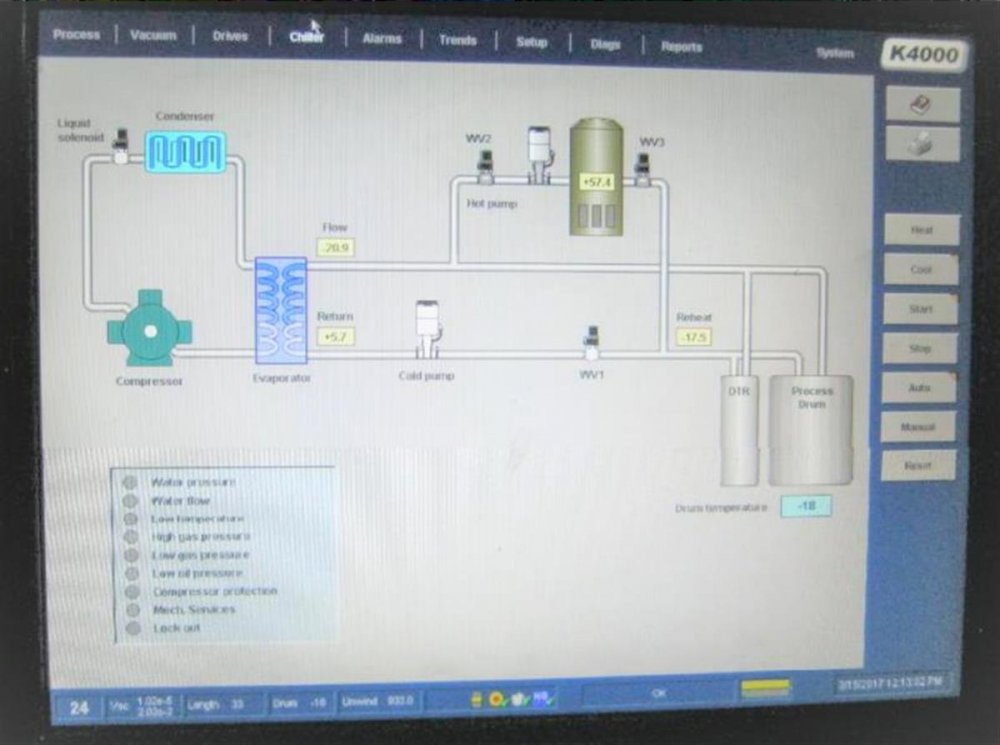

- Polycold
- YES
| Machine Code | ME65 |
| Manufacturer | GENERAL VACUUM EQUIPMENT |
| Modello | K 4000, |
| Year | 2007 |
| Working width (mm) | 2450 |
| Materials | BOPP , PET CPP |
| Speed | 1000 |
| Max diameter reel unwinder | 1000 |
| Max diameter reel rewinder | 1000 |
| Evapouration Boots | 26 |
| Pumping down time | 25 - 30 minutes |
| Pumping system | 3 Rotiary pumps , 3 Booster pumps , 4 diffusion pumps - N. 3 Rotary Pumps SOGEVAC Oerlikon Leybold vacuum Model : SV630B ( F ) for Coating Zone and winding zone - N. 1 Booster Pump 1 Oerlikon - Leybold vacuum Type RUVAC WH4400 Cap . 4400 / 5280 m3/h Rpm ;3000 / 3600 for Coating Zone - N.2 Booster Pump TUTHILL VACUUM SYSTEMS Kinney High Vacuum Model TVB 4845 H for Winding Zone - N.3 Diffusion Pump 1 VARIAN Type HS-20 84341 – 36 400V / 3PH 5 QTS – 12 KW for Coating Zone -N.1 Diffusion Pump AGILENT TECHNOLOGIES HS-20 84341 – 36 400V / 3PH 5 QTS – 12 KW for Coating Zone |
| Polycold | YES |
