Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.
Ask more informations
- Machine Code
- LA460
- Manufacturer
- NORDMECCANICA
- Modello
- Combi Lab
- Year
- 2000
- Application
- Lamination + coating
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 440
- Materials
- Plastic films, alluminium foil, paper
- Speed
- 250 m/min mechanical speed
- First unwinder type
- Single
- Max diameter reel unwinder
- 400
- Secondary unwinder type
- Single
- Max diameter reel unwinder
- 400
- Rewinder type
- Single
- Max diameter reel rewinder
- 400
- Coating unit

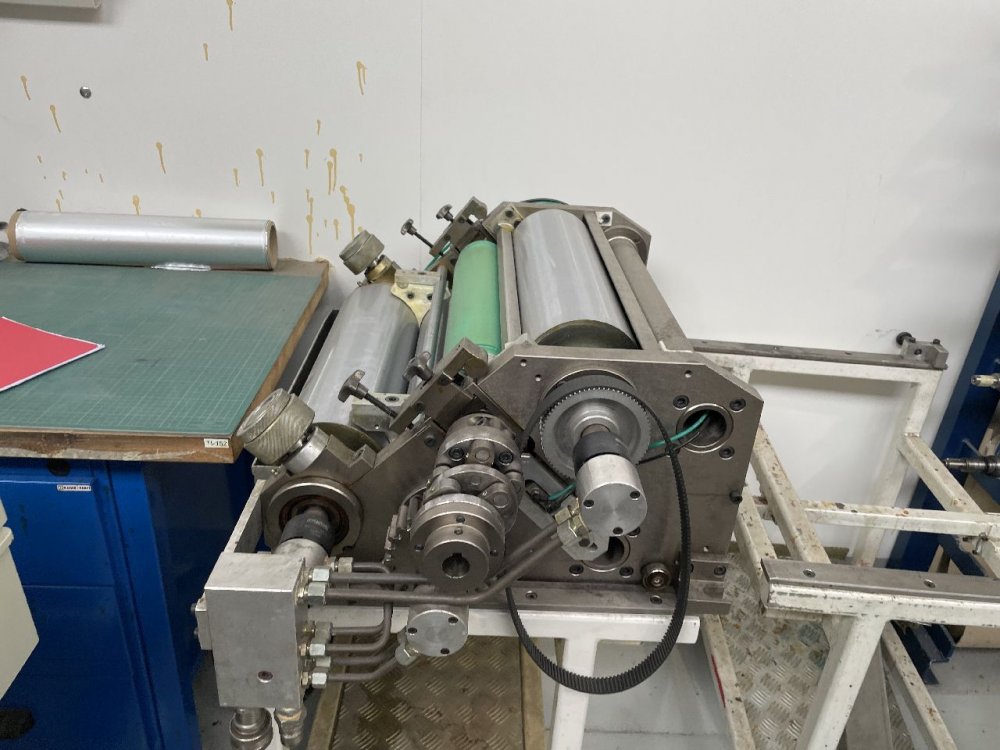

- Available with 3 trolleys: solventless, gravure, semiflexo
- Drying
- Electric heaters
- Corona treatment
- yes
- Coating rollers
- several coating rollers available. 8 coating cylinders
- Note
- 3x thermo regulation units
| Machine Code | LA460 |
| Manufacturer | NORDMECCANICA |
| Modello | Combi Lab |
| Year | 2000 |
| Application | Lamination + coating |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 440 |
| Materials | Plastic films, alluminium foil, paper |
| Speed | 250 m/min mechanical speed |
| First unwinder type | Single |
| Max diameter reel unwinder | 400 |
| Secondary unwinder type | Single |
| Max diameter reel unwinder | 400 |
| Rewinder type | Single |
| Max diameter reel rewinder | 400 |
| Coating unit | Available with 3 trolleys: solventless, gravure, semiflexo |
| Drying | Electric heaters |
| Corona treatment | yes |
| Coating rollers | several coating rollers available. 8 coating cylinders |
| Note | 3x thermo regulation units |
