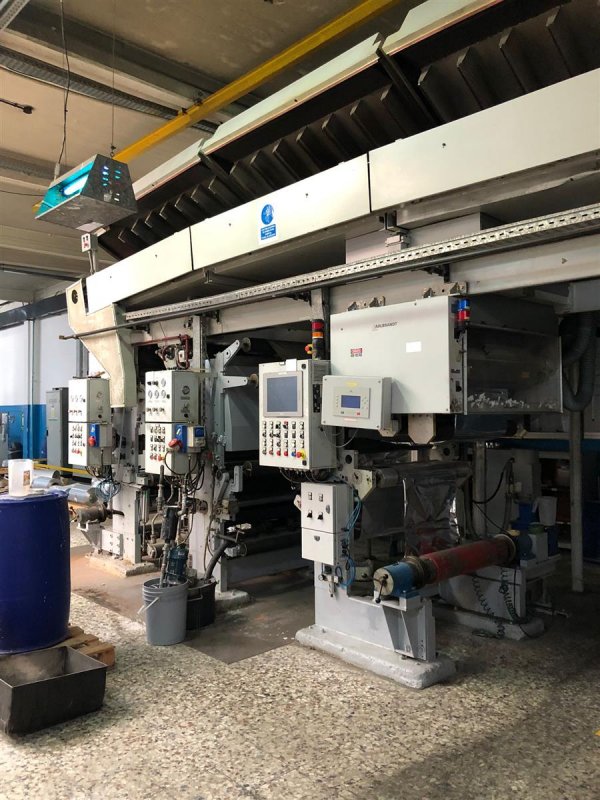

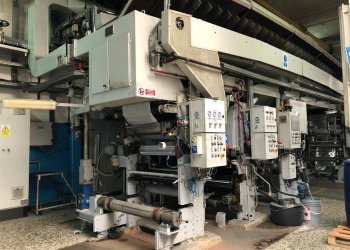

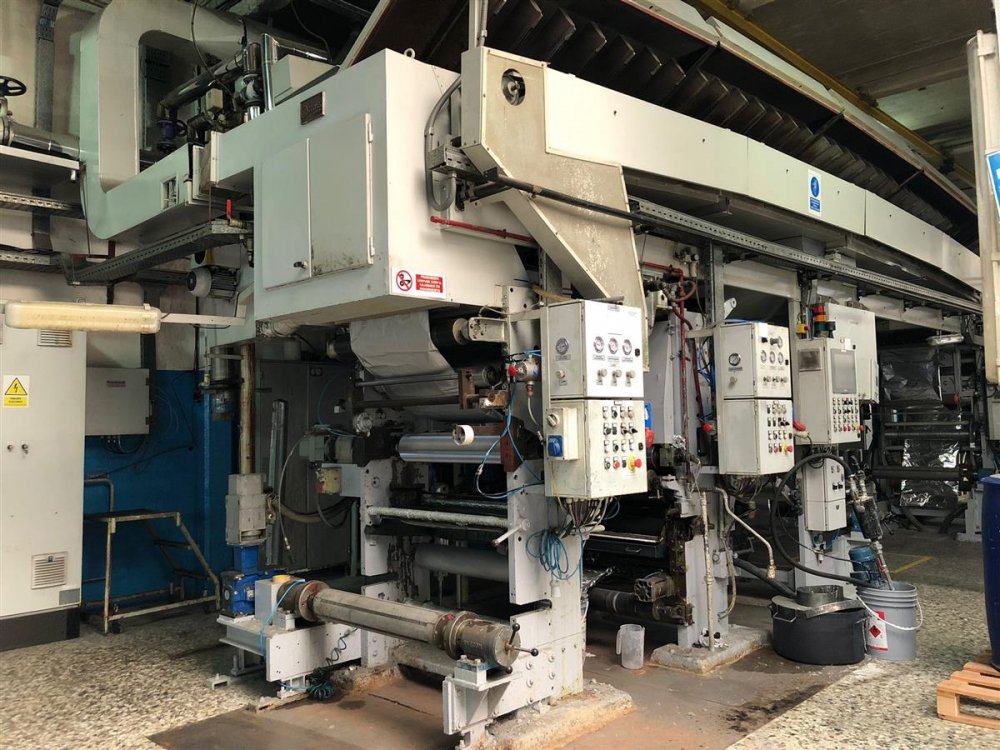

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
- Machine Code
- LA426
- Manufacturer
- ROTOMEC
- Modello
- duplex
- Year
- 1980
- Application
- Lamination + coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Overhaul/renovation

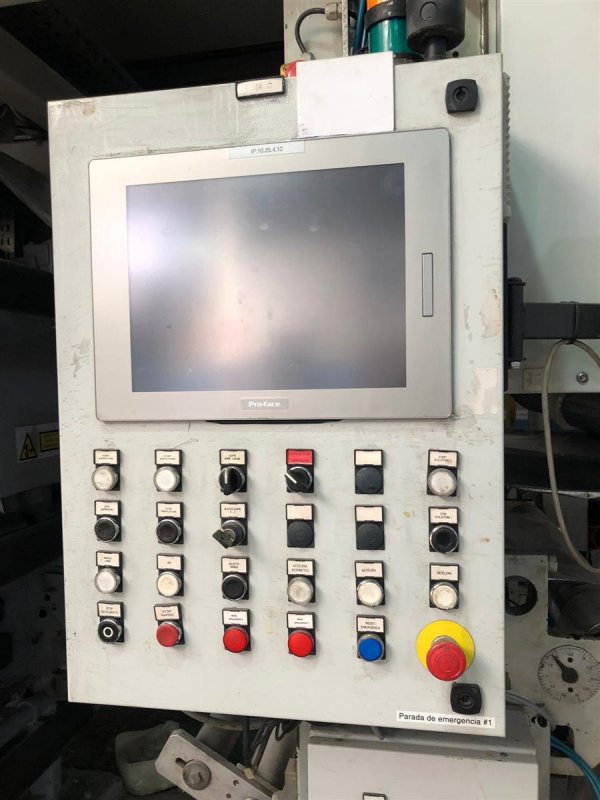

- it was refurbished with new electronics and servo motors in 2013.
- Working width (mm)
- 800
- Speed
- Mechanical speed: 150 m/min
- First unwinder type
- Single shafted
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Single shafted
- Max diameter reel unwinder
- 800
- Rewinder type
- Single shafted
- Max diameter reel rewinder
- 800
- Coating unit
- gravure for primer
- Second Coating unitr
- semiflexo
- Drying
- Thermal fluid.4 zones - 10 mt - thermo oil heat exchangers
- Corona treatment
- yes 2 corona , Ahlbrabdt and Ferrarini Benelli
- Note
- 2 coating units Type of Production: Lamination/Lacquering Lamination unit: 2 Voltage: 380V
| Machine Code | LA426 |
| Manufacturer | ROTOMEC |
| Modello | duplex |
| Year | 1980 |
| Application | Lamination + coating |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Overhaul/renovation | it was refurbished with new electronics and servo motors in 2013. |
| Working width (mm) | 800 |
| Speed | Mechanical speed: 150 m/min |
| First unwinder type | Single shafted |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Single shafted |
| Max diameter reel unwinder | 800 |
| Rewinder type | Single shafted |
| Max diameter reel rewinder | 800 |
| Coating unit | gravure for primer |
| Second Coating unitr | semiflexo |
| Drying | Thermal fluid.4 zones - 10 mt - thermo oil heat exchangers |
| Corona treatment | yes 2 corona , Ahlbrabdt and Ferrarini Benelli |
| Note | 2 coating units Type of Production: Lamination/Lacquering Lamination unit: 2 Voltage: 380V |

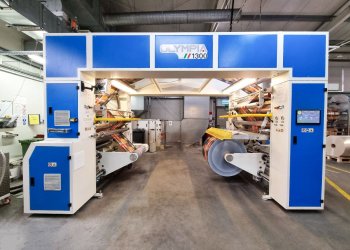

GENERAL CONVERTING MACHINES Olympia 1300
-
