Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1089
- Manufacturer
- UTECO
- Modello
- ONYX 876
- Year
- 2007
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800

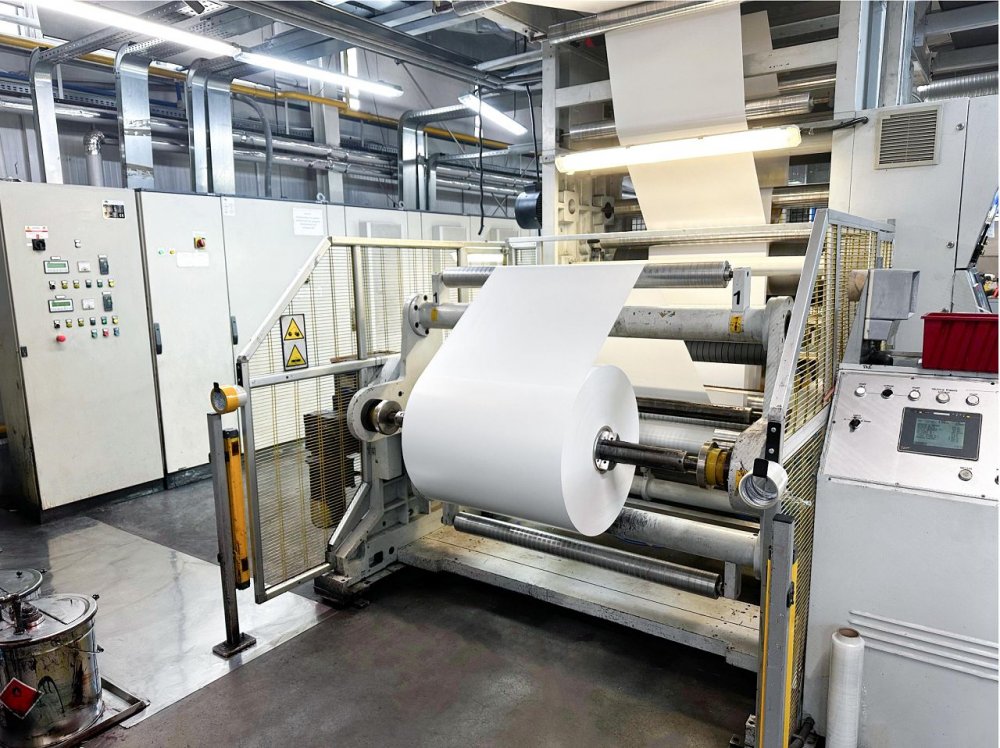

- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , four fans , final tunnel 4 mt length , 2 gas burners , Automatic air recirculation system with LEL control
- Videocamera
- BST - 3CCd , with defekt control
- Web guides
- Yes in and out BST
- Vyscosity control
- Yes
- Washing system
- Yes automatic

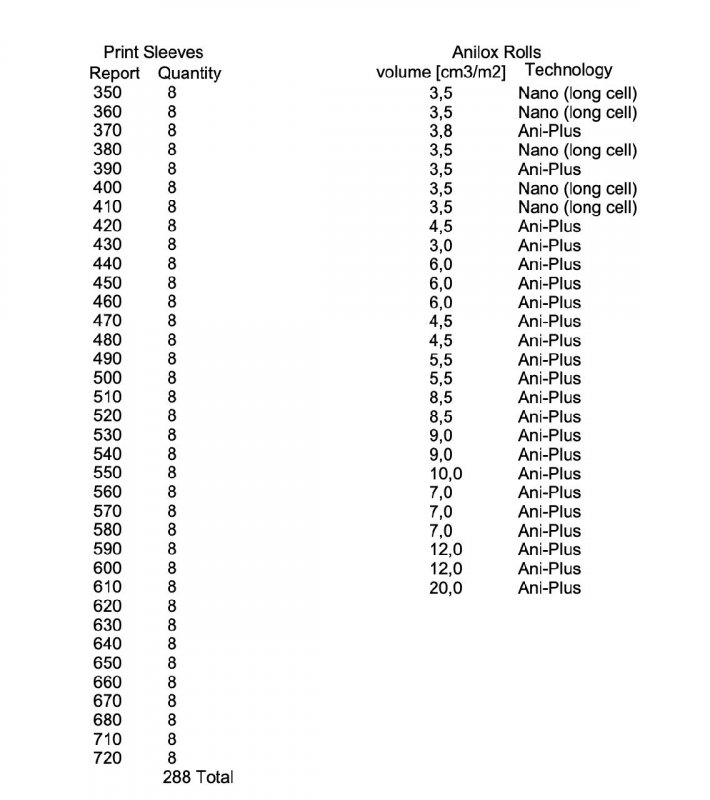

- Anilox
- 27 ceramic anilox sleeves
- Print Sleeves
- 288 print sleeves
- Print cylinders
- 16 adapters
- Note
- Plate mounter included
| Machine Code | FL1089 |
| Manufacturer | UTECO |
| Modello | ONYX 876 |
| Year | 2007 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , four fans , final tunnel 4 mt length , 2 gas burners , Automatic air recirculation system with LEL control |
| Videocamera | BST - 3CCd , with defekt control |
| Web guides | Yes in and out BST |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Anilox | 27 ceramic anilox sleeves |
| Print Sleeves | 288 print sleeves |
| Print cylinders | 16 adapters |
| Note | Plate mounter included |
