A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
- Machine Code
- LA388
- Manufacturer
- NORDMECCANICA
- Modello
- TRIPLEX COMBI
- Year
- 1998
- Application
- Triplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Overhaul/renovation

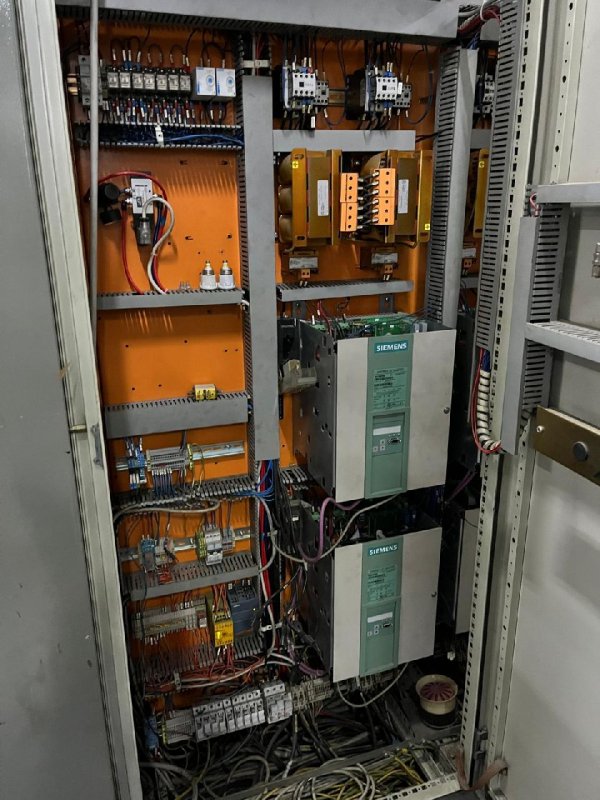

- Complete new control cabinet 2016 SIEMENS S7 PLC and SIEMENS drives
- Working width (mm)
- 1400
- Materials
- Plastic film, paper, alufilm
- First unwinder type
- Turret
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret
- Max diameter reel unwinder
- 800
- Third unwinder type
- Turret
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret
- Max diameter reel rewinder
- 800
- Coating unit
- Solvent/water based coating
- Second Coating unitr
- Solventless
- Drying
- Heated with steam battery
- pumping mixing unit
- VEA mixer
| Machine Code | LA388 |
| Manufacturer | NORDMECCANICA |
| Modello | TRIPLEX COMBI |
| Year | 1998 |
| Application | Triplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Overhaul/renovation | Complete new control cabinet 2016 SIEMENS S7 PLC and SIEMENS drives |
| Working width (mm) | 1400 |
| Materials | Plastic film, paper, alufilm |
| First unwinder type | Turret |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret |
| Max diameter reel unwinder | 800 |
| Third unwinder type | Turret |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret |
| Max diameter reel rewinder | 800 |
| Coating unit | Solvent/water based coating |
| Second Coating unitr | Solventless |
| Drying | Heated with steam battery |
| pumping mixing unit | VEA mixer |
