** SOLD **
A duplex laminator will join 2 layers of web, a triplex lamination machine will join 3 layers together in one pass. An extrusion coater will only coat a layer of polymer (typically PE) on a support.
Ask more informations
about a similar one
- Machine Code
- EC36
- Manufacturer
- ROTOMEC
- Year
- 1997
- Width (mm)
- 1450
- Coating/lamination units
- 2
- Coating/lamination unit 1 description

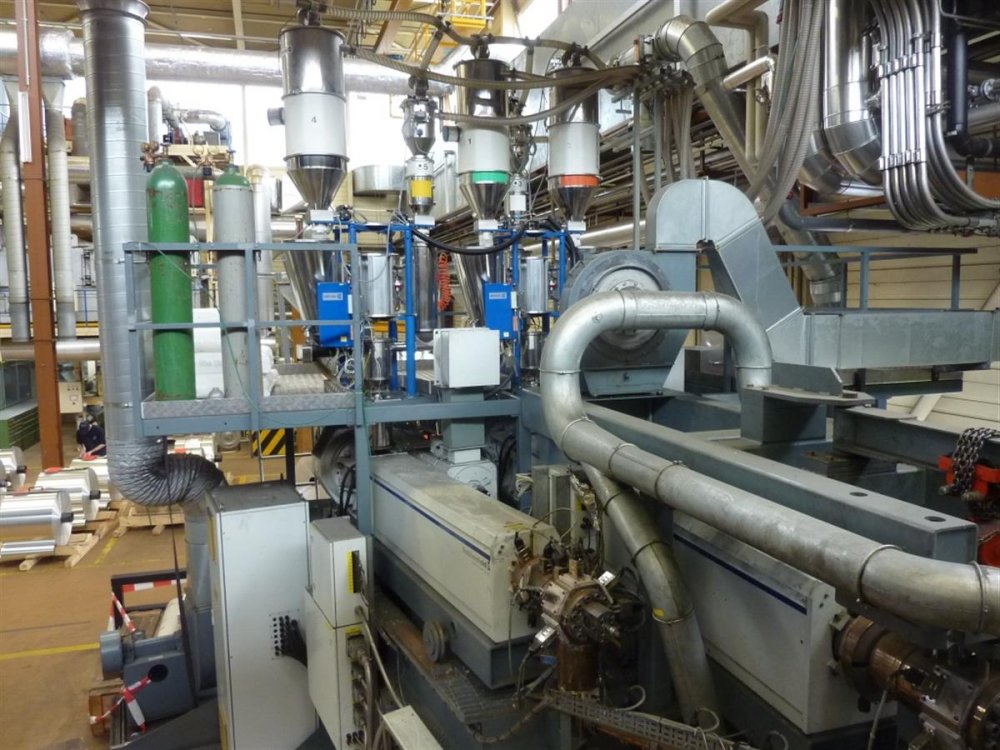

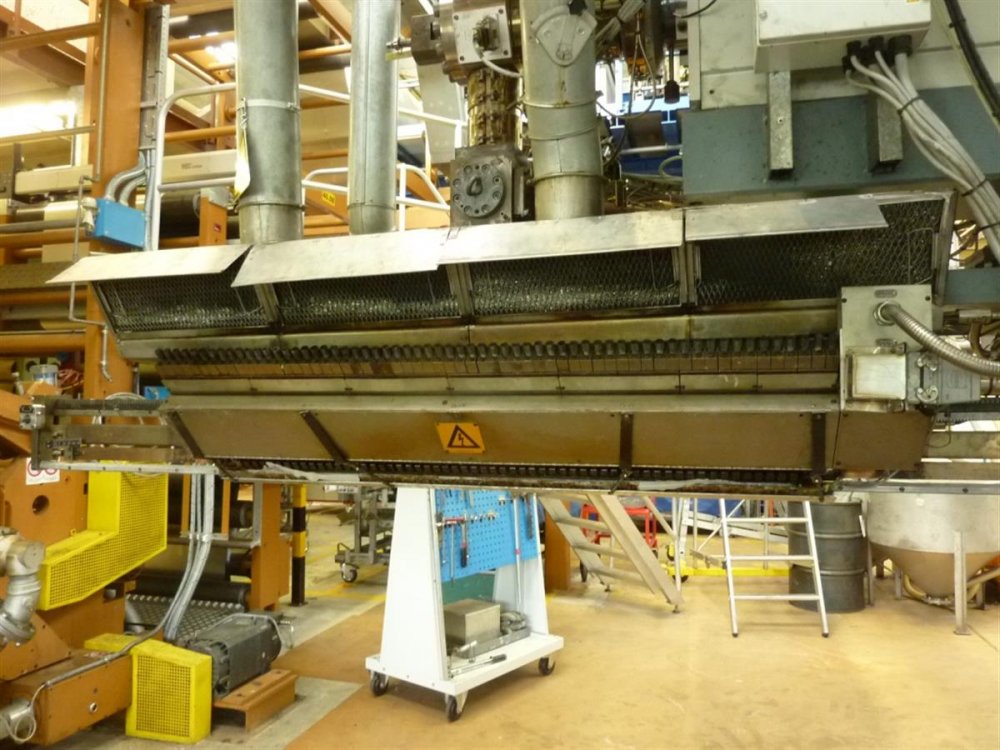

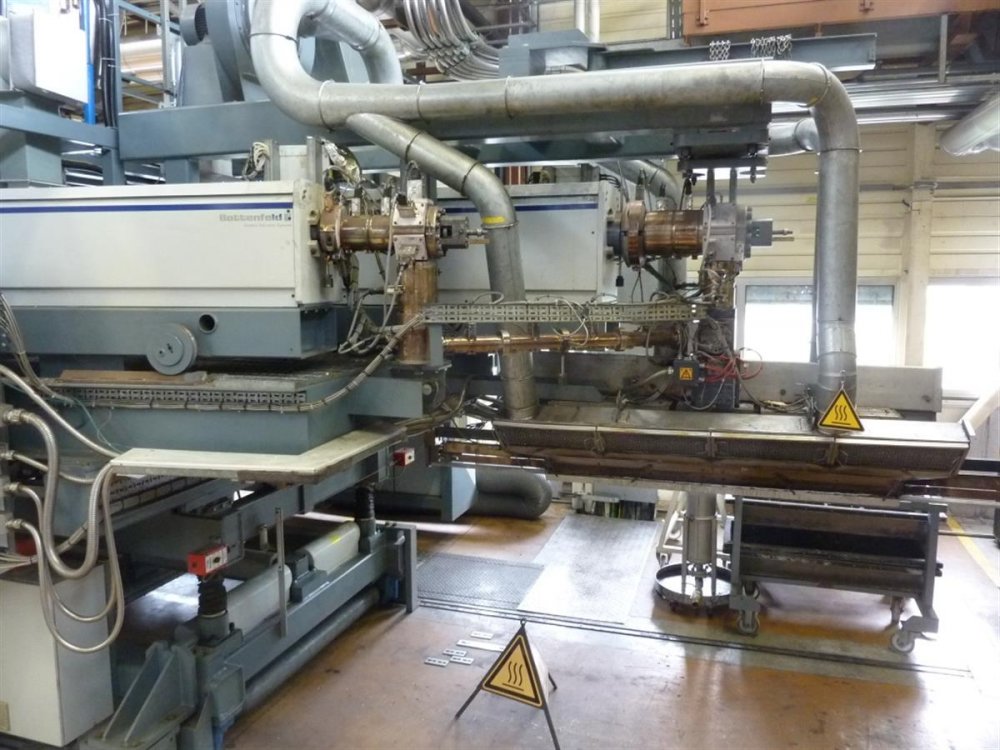

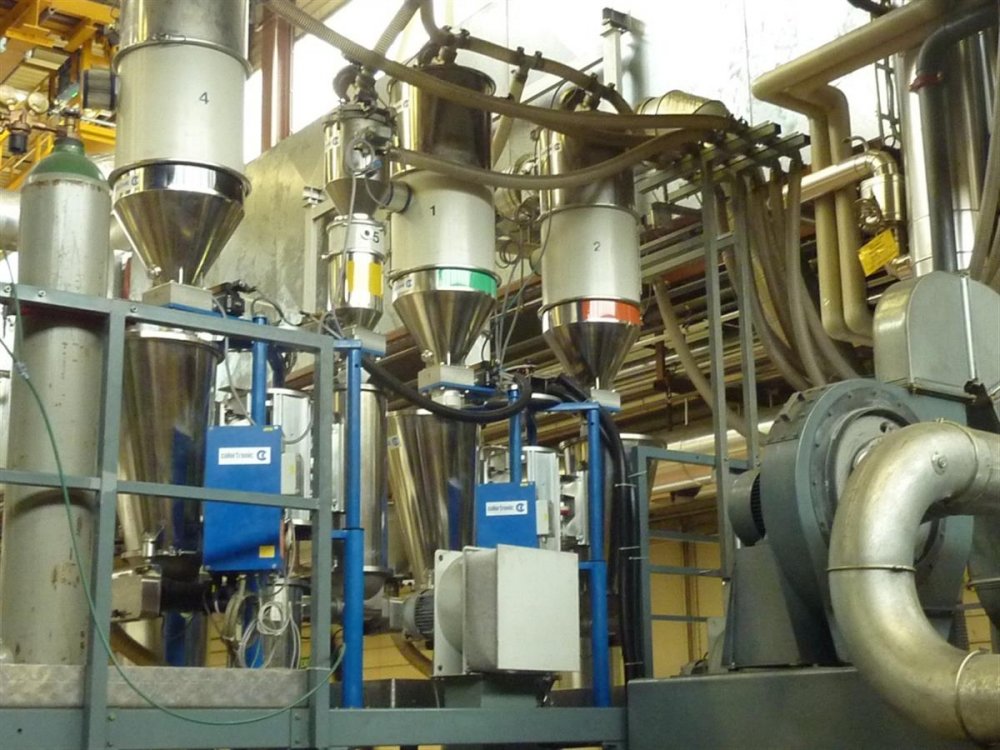

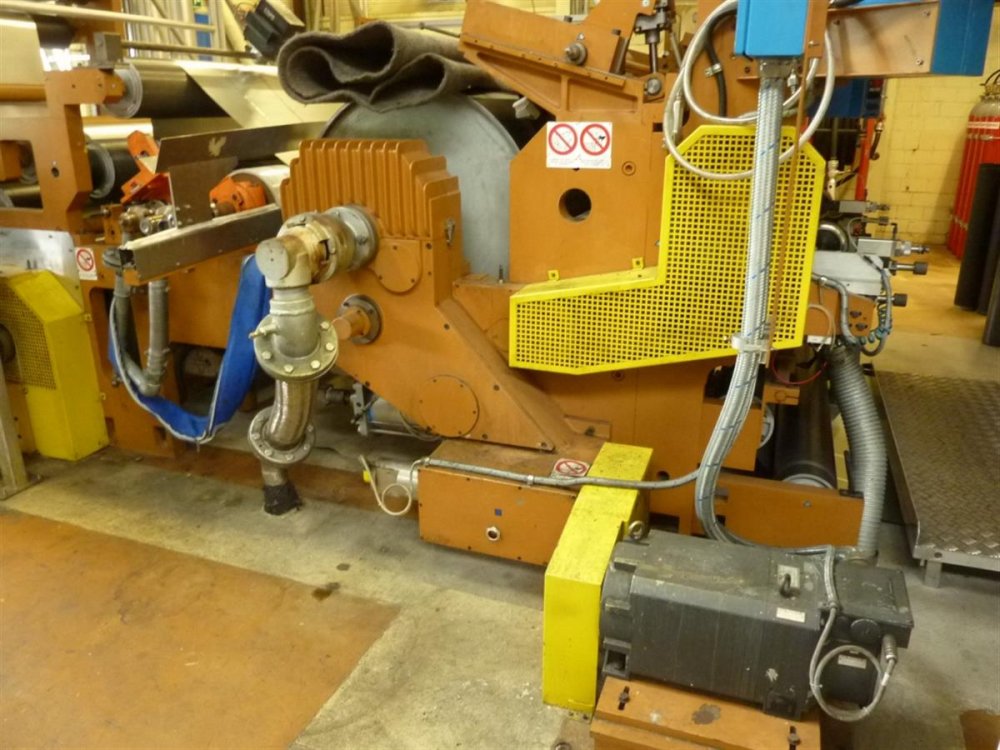

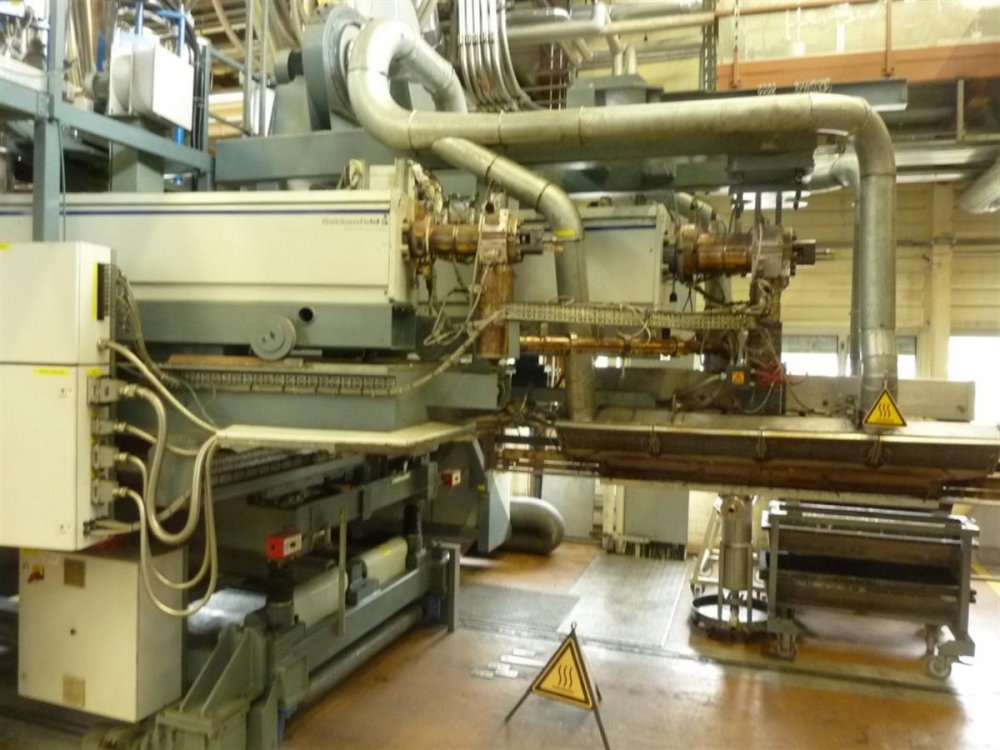

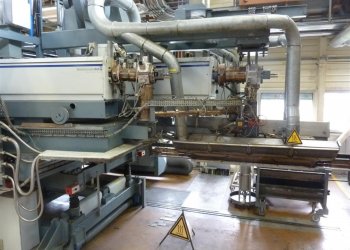

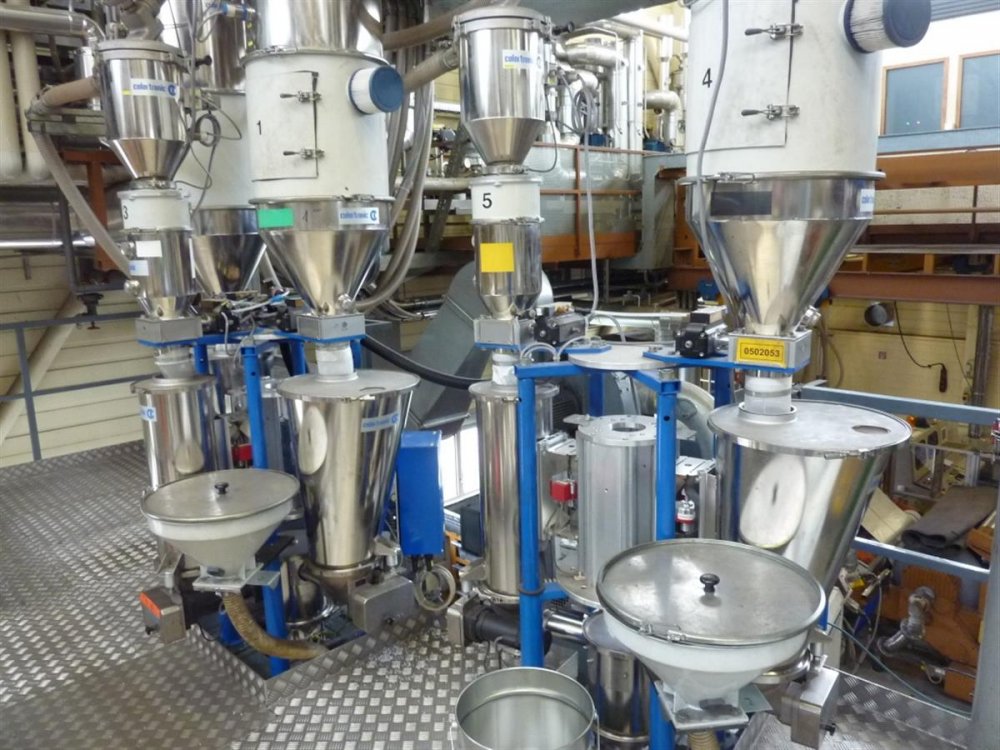

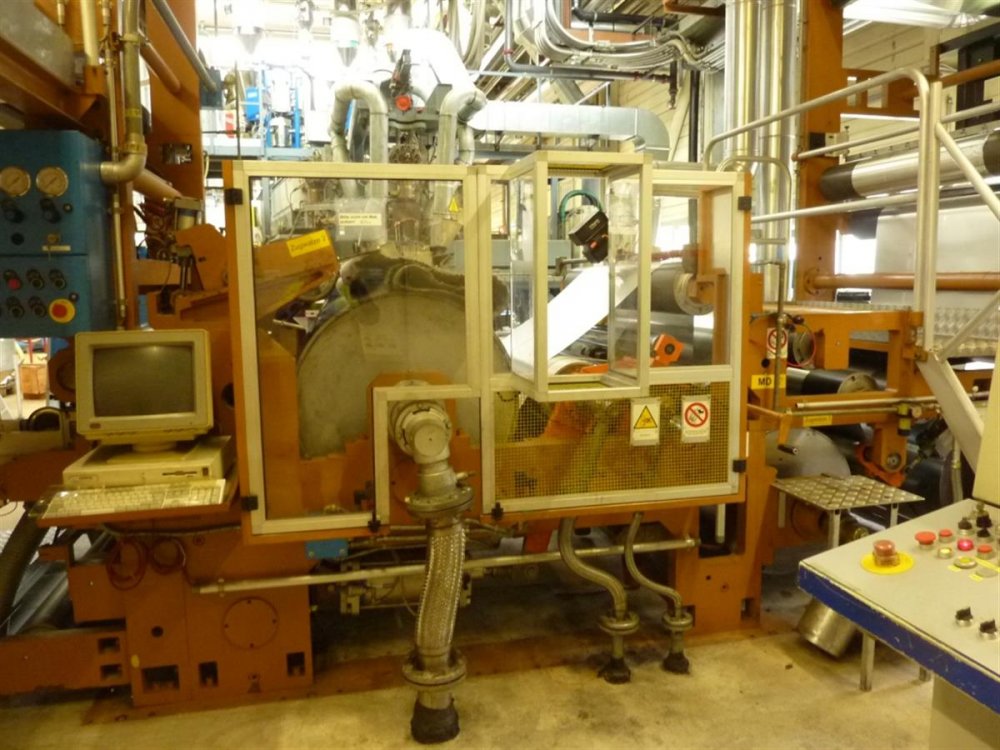

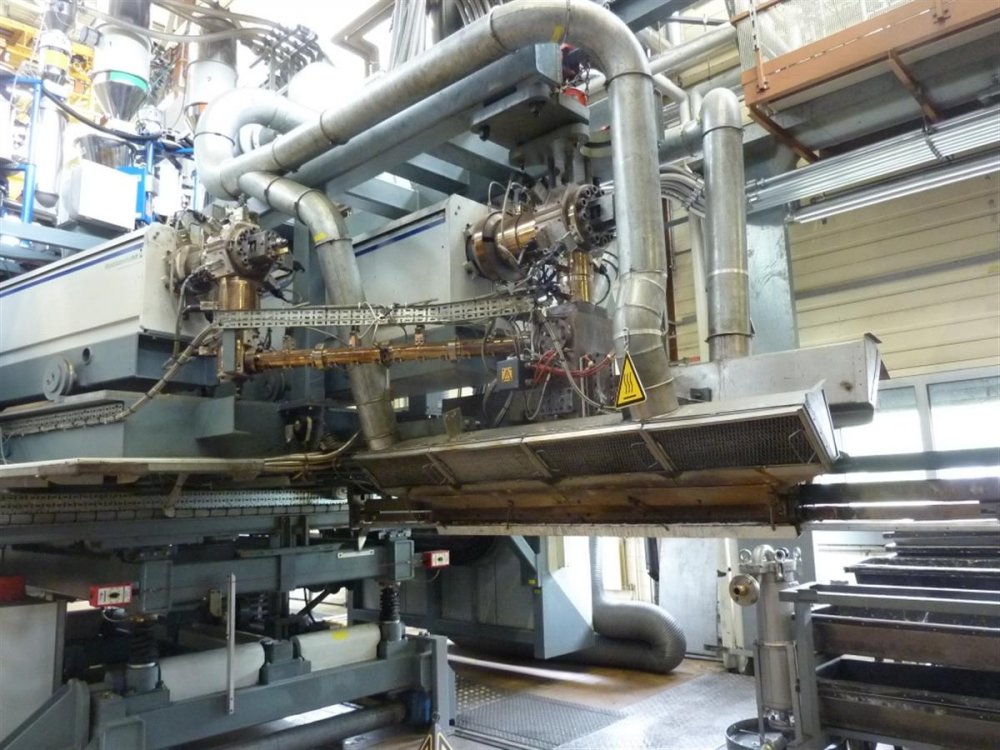

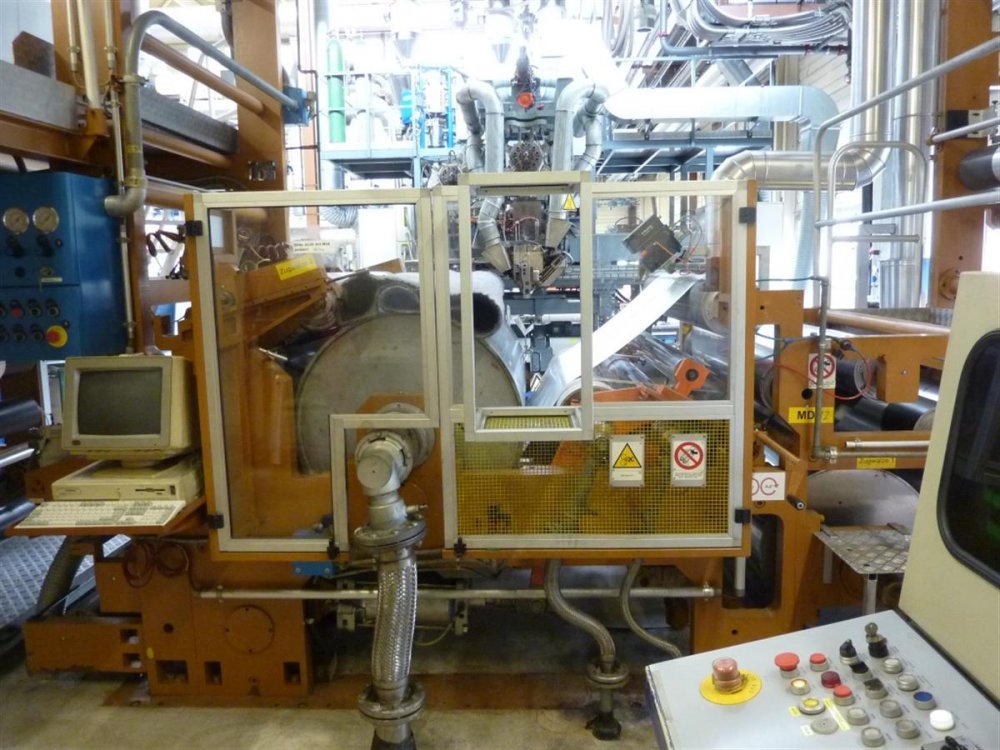

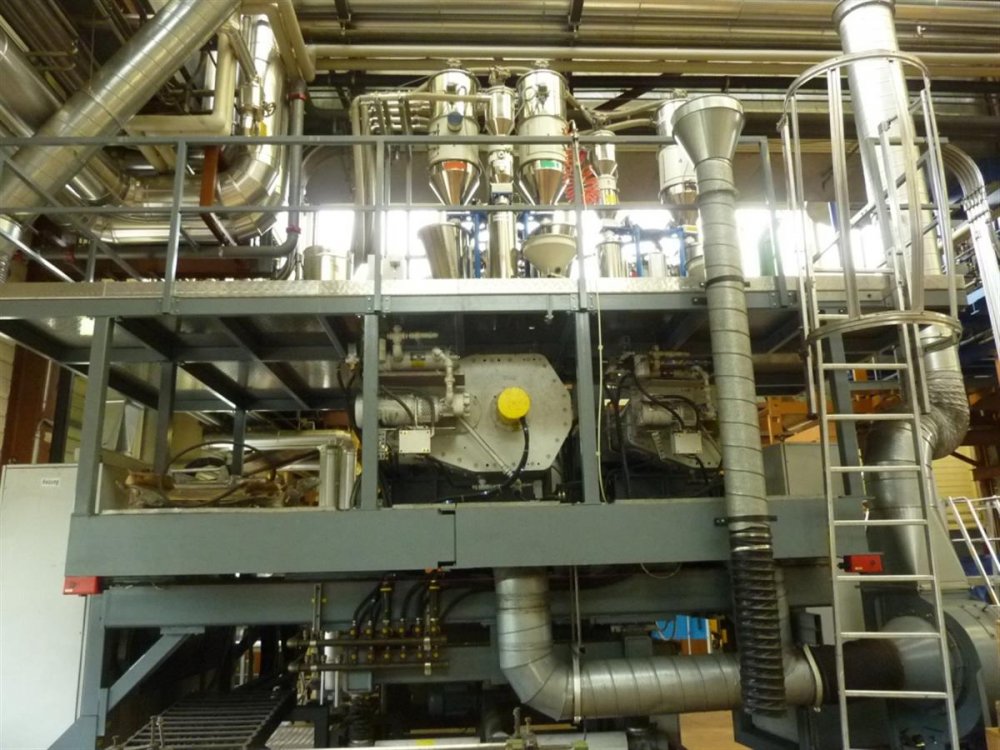

- Extrusion coating unit Battenfeld- Rotomec - EXTRUDER: Make Battenfeld; Extr A 120mm screw diam 3 component Colortronic dosing system max out put 450 Kg/h; Extr.B 90mm screw diam, max output 180Kg/h, 2 component Colortronic dosing system; Colortronic granulate pre-dryer; - DIE: make Cloren, model EBRIII, interdal deckling system for width reduction, automatic thicknes profile controll system. - CHILL ROLL: Chill roller diam 900 mm; mat finishing; Infra red camera, One new chill roller available as spare
- Primary unwinder description
- Not included. Se additional information for options
- Rewinder description
- Not included. Se additional information for options
- Speed
- 400 m/min
- Product structure / Materials
- PP, LDPE, HDPE, EAA
- Note

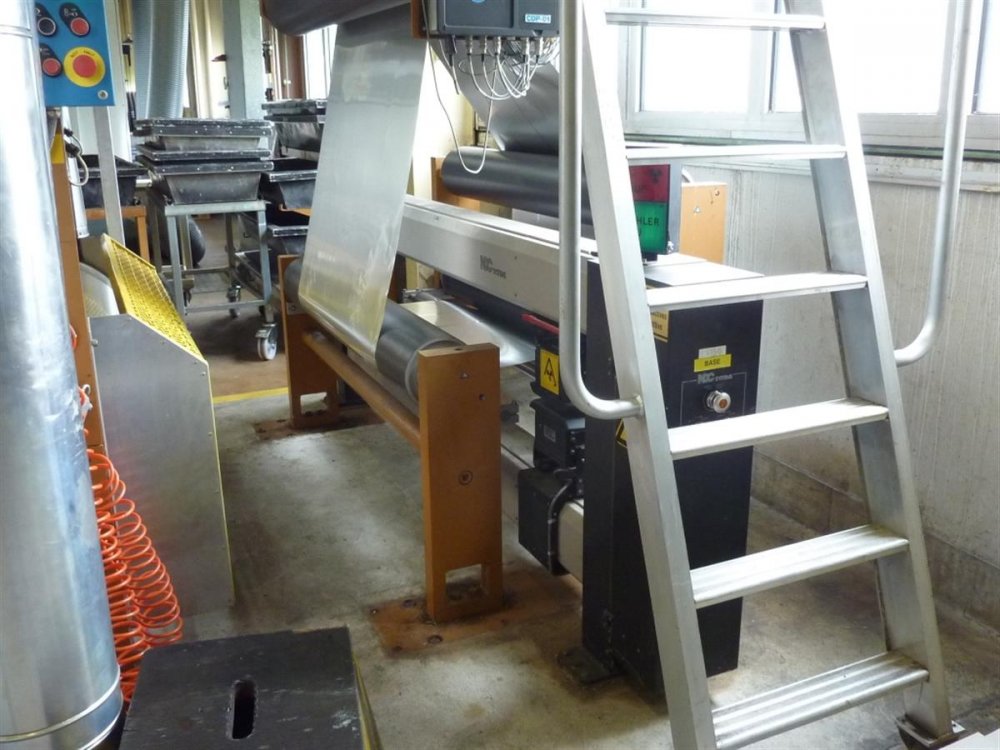

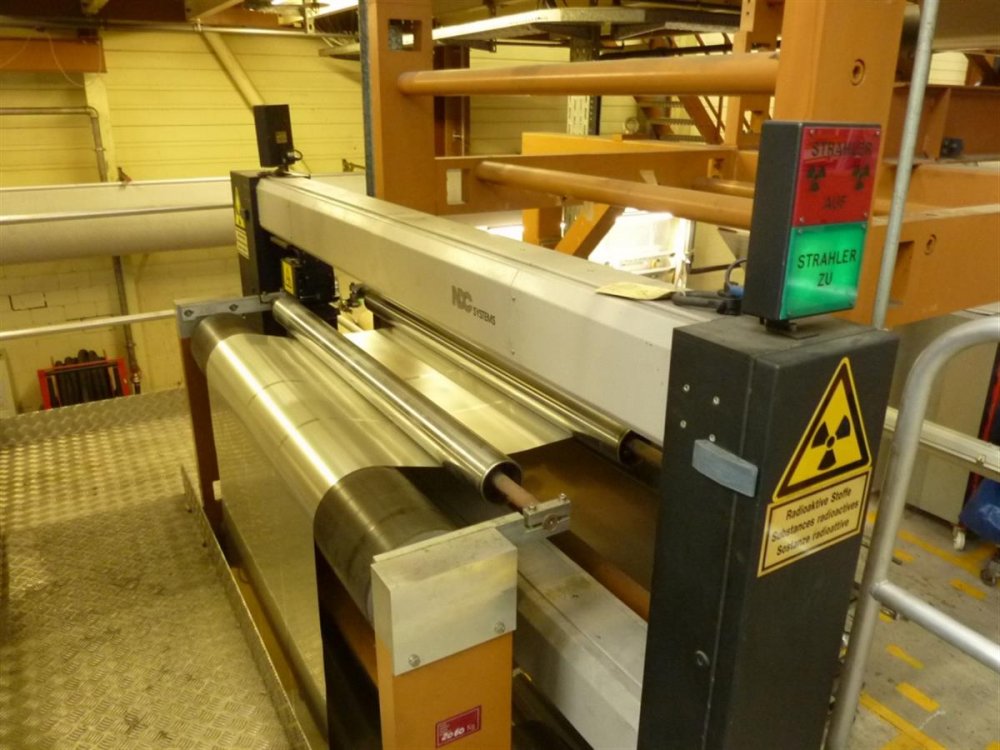

- - Min width 650mm - Thickness measurement NDC. System includes 2 measuring units, one before coating, second after. Both thickness measuerment system via beta rays. Beta rays source was currently disposed. - Unwinder and rewinder not available. As optionals we can offer Unwinder and rewinder Nordmeccanica, turret type, rell diam 1000 mm available at 35.000 Eur tot price for botht. As additional Optional IMS rewinder (UNRE30), POPE roler type, width 1700mm diam 1900mm. Price 55.000 Eur
Machine Code | EC36 |
Manufacturer | ROTOMEC |
Year | 1997 |
Width (mm) | 1450 |
Coating/lamination units | 2 |
Coating/lamination unit 1 description | Extrusion coating unit Battenfeld- Rotomec - EXTRUDER: Make Battenfeld; Extr A 120mm screw diam 3 component Colortronic dosing system max out put 450 Kg/h; Extr.B 90mm screw diam, max output 180Kg/h, 2 component Colortronic dosing system; Colortronic granulate pre-dryer; - DIE: make Cloren, model EBRIII, interdal deckling system for width reduction, automatic thicknes profile controll system. - CHILL ROLL: Chill roller diam 900 mm; mat finishing; Infra red camera, One new chill roller available as spare |
Primary unwinder description | Not included. Se additional information for options |
Rewinder description | Not included. Se additional information for options |
Speed | 400 m/min |
Product structure / Materials | PP, LDPE, HDPE, EAA |
Note | - Min width 650mm - Thickness measurement NDC. System includes 2 measuring units, one before coating, second after. Both thickness measuerment system via beta rays. Beta rays source was currently disposed. - Unwinder and rewinder not available. As optionals we can offer Unwinder and rewinder Nordmeccanica, turret type, rell diam 1000 mm available at 35.000 Eur tot price for botht. As additional Optional IMS rewinder (UNRE30), POPE roler type, width 1700mm diam 1900mm. Price 55.000 Eur |
HAN YOUNG extrusion lamination
-
Machine Code: EC31
-
Year: 2001
-
Width (mm): 1500
HAN YOUNG Extrusion lamination
-
Machine Code: EC32
-
Year: 2005
-
Width (mm): 2200
S.A.M.
-
Machine Code: EC45
-
Year: 2011
-
Width (mm): 1450

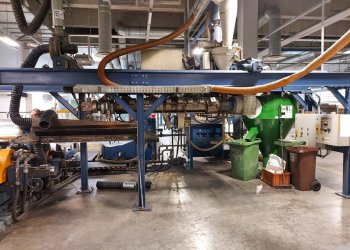

SML - STARLINGER
-
