** SOLD **
Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
about a similar one
- Machine Code
- BO60
- Manufacturer
- MITSUBISHI
- Year
- 2002
- Number of layers
- 5
- Film structure
- A-B-C-D-E
- Material
- BOPP 12-50my
- Output
- 4500 Kg/h , speed 45-450 mpm at TDO/winder
- Width (mm)
- 8300
- Extruder 1 Description
- A - capacity 320 Kg/h, screw diam 110mm
- Extruder 2 Description
- B - capacity 320 Kg/h, screw diam 110mm
- Extruder 3 Description
- C - capacity 4500 Kg/h, Tandem/cascade extruder, screw diam 250 mm melting/300mm metering, day silos,
- Extruder 4 Description
- D - capacity 320 Kg/h, screw diam 110mm
- Extruder 5 Description
- E - capacity 320 Kg/h, screw diam 110mm
- Head description
- automatic profile regulation
- Die width
- 1200mm
- Thickness controll system
- 2 gauges gauge beta rays
- Chill roll unit
- Main chill roller diameter 2600mm in water bath, chill roller width 1500mm
- MDO description
- Oil heated, 20 rolls pre heating 614 mm diam, of those 10x teflon coating, 6 stretching nips diam 150mm, 4 rolls annealing 614 mm diam teflon coated
- TDO description

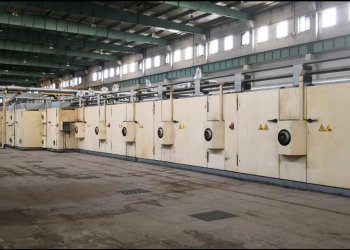

- Oil heating, 6 zone pre heating fans 17x22K meter3/H 15 Kw, 6 zone stretching fans 22x8K meter3/H motor 4 Kw, 6 zone annealling fans 22x8K meter3/H motor 4 Kw, heat setting, sliding TDO chain with 1255 clips per side
- Rewinder width
- 8300
- Rewinder description
- Turret type, max reel diameter 1200mm, tape less splicing
- Slitter
- Atlas CW984A, 8,3m width, 19 knives, 12 couple of winding arms,2 spoolers, max speed 1000mpm, shaftless unwind max diam 1350mm, core length 9000mm, Winded rolelrs width 350mm-2500mm, max rewind diameter 1200mm
- Note
- Dimensions: L 133m x W 16m x H 5m
| Machine Code | BO60 |
| Manufacturer | MITSUBISHI |
| Year | 2002 |
| Number of layers | 5 |
| Film structure | A-B-C-D-E |
| Material | BOPP 12-50my |
| Output | 4500 Kg/h , speed 45-450 mpm at TDO/winder |
| Width (mm) | 8300 |
| Extruder 1 Description | A - capacity 320 Kg/h, screw diam 110mm |
| Extruder 2 Description | B - capacity 320 Kg/h, screw diam 110mm |
| Extruder 3 Description | C - capacity 4500 Kg/h, Tandem/cascade extruder, screw diam 250 mm melting/300mm metering, day silos, |
| Extruder 4 Description | D - capacity 320 Kg/h, screw diam 110mm |
| Extruder 5 Description | E - capacity 320 Kg/h, screw diam 110mm |
| Head description | automatic profile regulation |
| Die width | 1200mm |
| Thickness controll system | 2 gauges gauge beta rays |
| Chill roll unit | Main chill roller diameter 2600mm in water bath, chill roller width 1500mm |
| MDO description | Oil heated, 20 rolls pre heating 614 mm diam, of those 10x teflon coating, 6 stretching nips diam 150mm, 4 rolls annealing 614 mm diam teflon coated |
| TDO description | Oil heating, 6 zone pre heating fans 17x22K meter3/H 15 Kw, 6 zone stretching fans 22x8K meter3/H motor 4 Kw, 6 zone annealling fans 22x8K meter3/H motor 4 Kw, heat setting, sliding TDO chain with 1255 clips per side |
| Rewinder width | 8300 |
| Rewinder description | Turret type, max reel diameter 1200mm, tape less splicing |
| Slitter | Atlas CW984A, 8,3m width, 19 knives, 12 couple of winding arms,2 spoolers, max speed 1000mpm, shaftless unwind max diam 1350mm, core length 9000mm, Winded rolelrs width 350mm-2500mm, max rewind diameter 1200mm |
| Note | Dimensions: L 133m x W 16m x H 5m |
