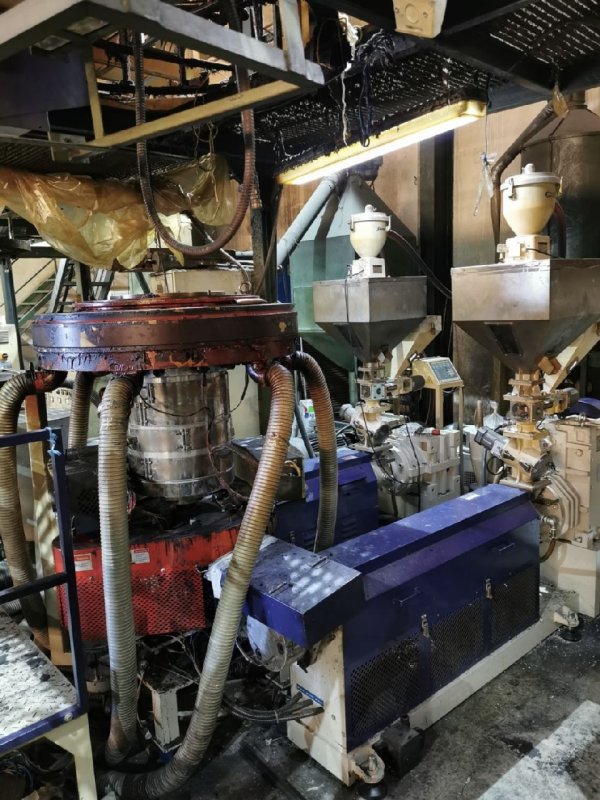

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
- Machine Code
- EX768
- Manufacturer
- KUNG HSING
- Modello
- KS-MH50+55/380V- 50HZ
- Year
- 2018
- Number of layers
- 1
- Film structure
- A
- Material
- HDPE LDPE
- Film Width
- 1200
- Output (Kg/h)
- 100kg/h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 50mm
- Description 1
- Double screw
- Bubble cage
- No
- Panel for gussets
- Yes
- Corona treatment
- Yes
- Web guide
- Yes
- Rewinder Type
- Automatic
- Rewinder max reel diameter
- 900m
- Note
- Thickness: 16 microns – 125 microns Automatic cutting system Screen Changer: Manual / 55-55
| Machine Code | EX768 |
| Manufacturer | KUNG HSING |
| Modello | KS-MH50+55/380V- 50HZ |
| Year | 2018 |
| Number of layers | 1 |
| Film structure | A |
| Material | HDPE LDPE |
| Film Width | 1200 |
| Output (Kg/h) | 100kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 50mm |
| Description 1 | Double screw |
| Bubble cage | No |
| Panel for gussets | Yes |
| Corona treatment | Yes |
| Web guide | Yes |
| Rewinder Type | Automatic |
| Rewinder max reel diameter | 900m |
| Note | Thickness: 16 microns – 125 microns Automatic cutting system Screen Changer: Manual / 55-55 |
