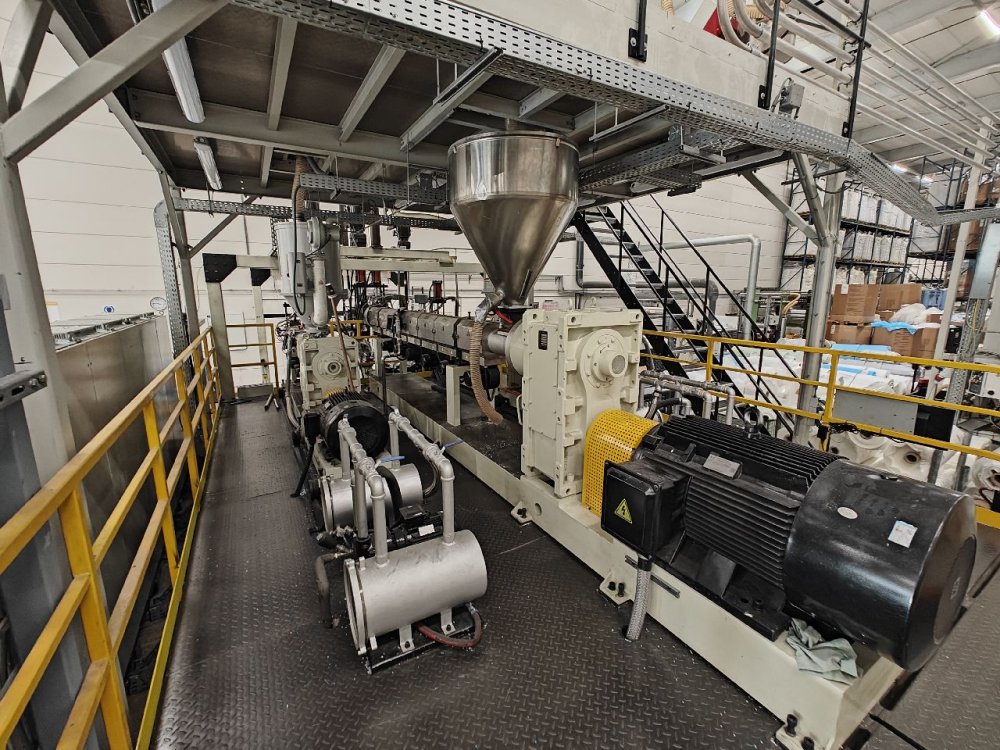

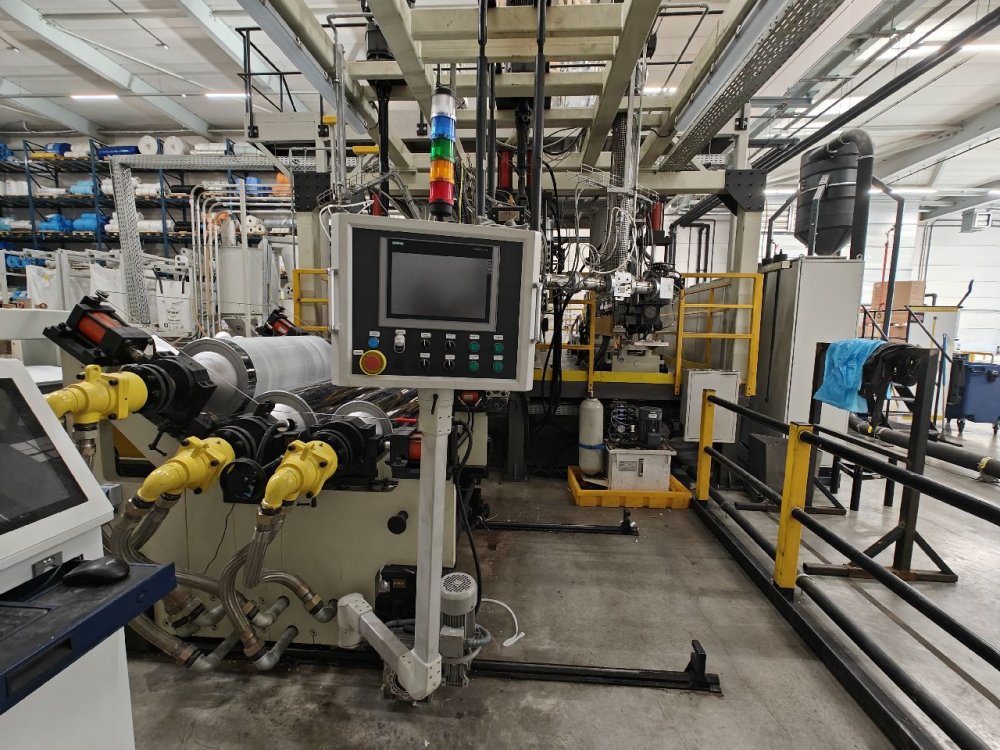

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA257
- Manufacturer
- JWELL
- Modello
- ACS 510
- Year
- 2021
- Number of layers
- 3
- Overhaul/renovation
- Revised to CE norm 2022
- Note
- Including : - Coating line TRESU => in-line - Sheeter - Automatic stapler - Corona treater - UV curing - Gravitex systems Produced PP , LDPE , HDPE , PS mainly for plant pins PP 350 - 600 micron ( produced ) but it can be up to 1050 micron Die types: hanger type mold Mould width: 900mm Product thickness: 0.3-1.5mm Net width of sheet (after be trimmed edge) Width 750mm
| Machine Code | CA257 |
| Manufacturer | JWELL |
| Modello | ACS 510 |
| Year | 2021 |
| Number of layers | 3 |
| Overhaul/renovation | Revised to CE norm 2022 |
| Note | Including : - Coating line TRESU => in-line - Sheeter - Automatic stapler - Corona treater - UV curing - Gravitex systems Produced PP , LDPE , HDPE , PS mainly for plant pins PP 350 - 600 micron ( produced ) but it can be up to 1050 micron Die types: hanger type mold Mould width: 900mm Product thickness: 0.3-1.5mm Net width of sheet (after be trimmed edge) Width 750mm |
