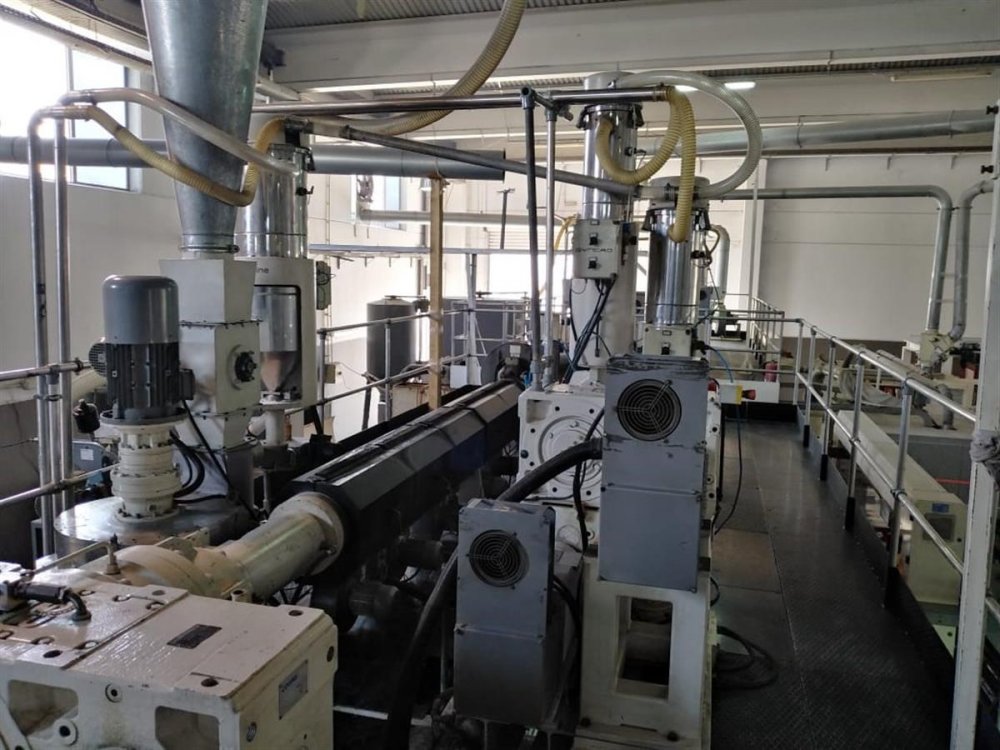

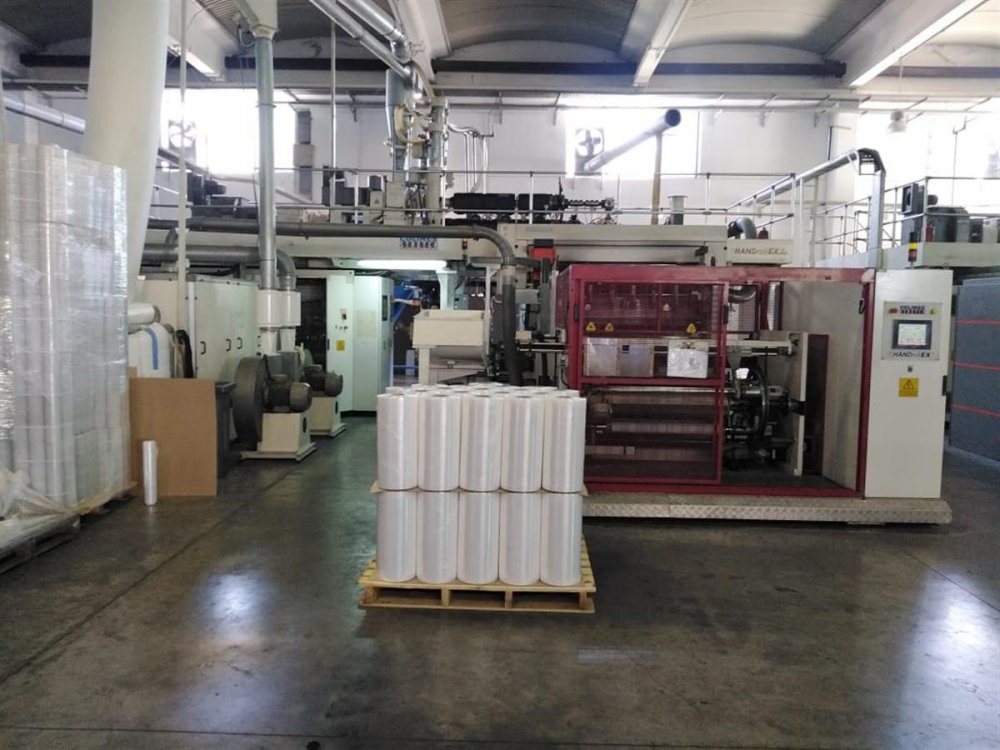

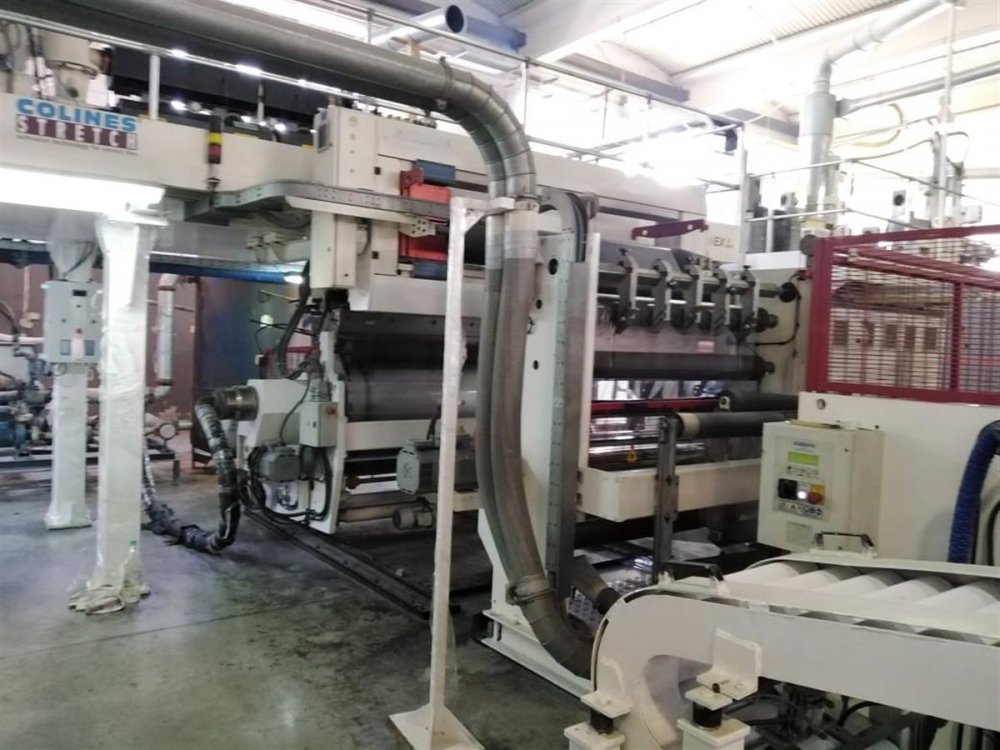

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA200
- Manufacturer
- COLINES
- Modello
- HANDrollEX 1000A
- Year
- 2009
- Number of layers
- 3
- Film structure
- ABC
- Material
- Stretch film LLDPE
- Film width (mm)
- 1000
- Speed (m/min)
- up to 600
- Output (Kg/h)
- 600

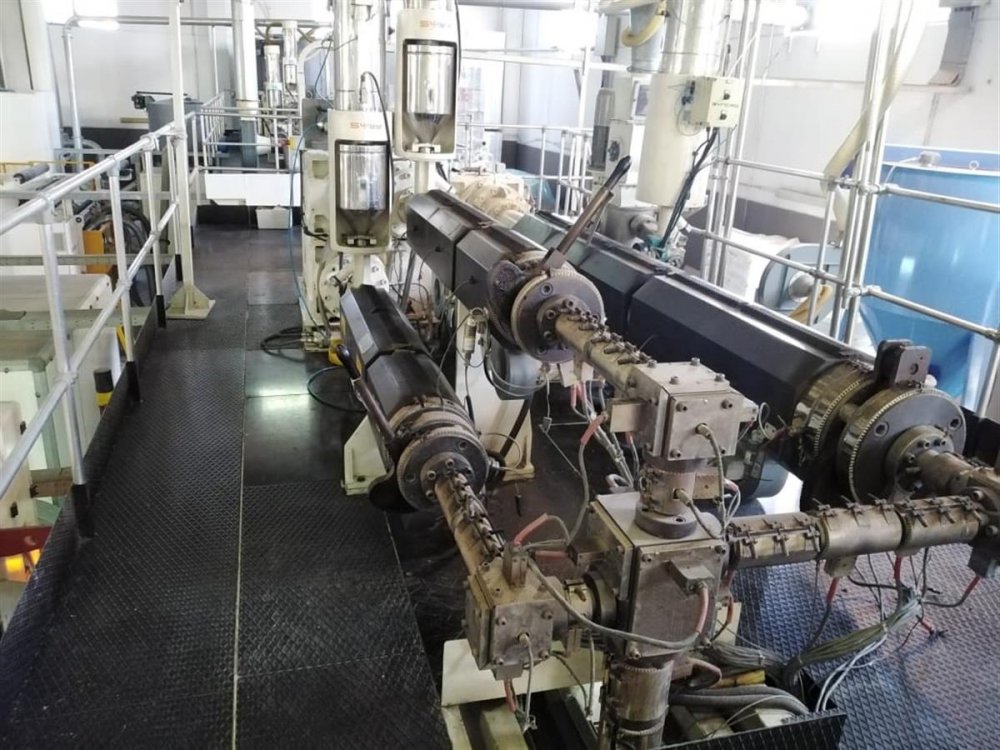

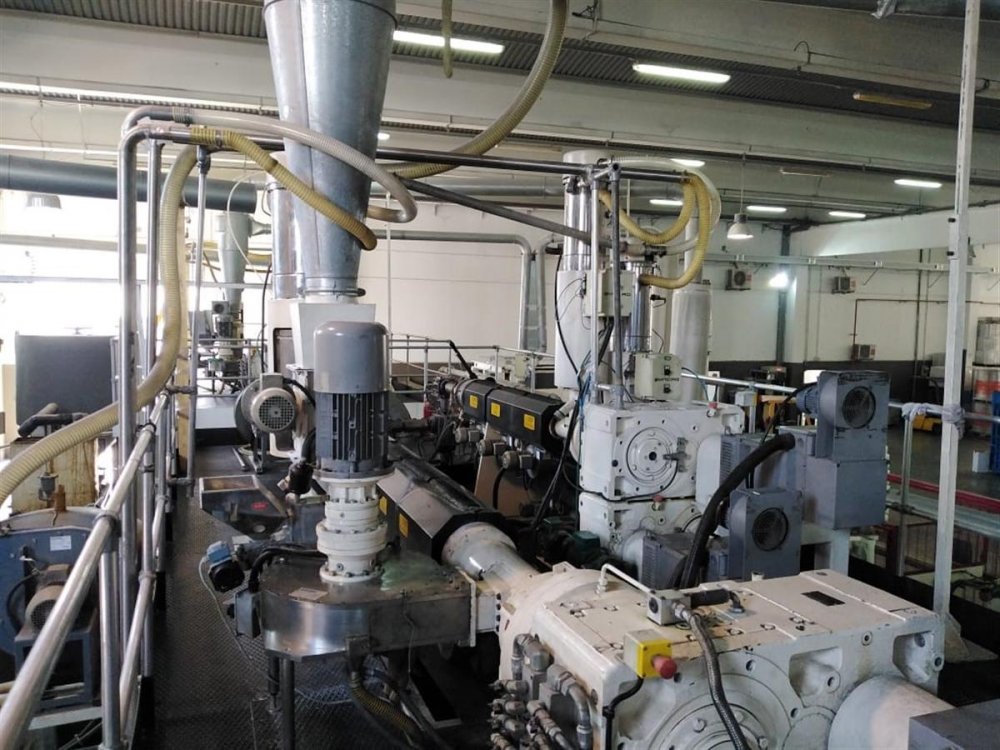

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 60/30 LD
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 120/30 LD
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 60/30 LD
- Head description
- FARCON with automatic gauge correction
- Die width (mm)
- 1550

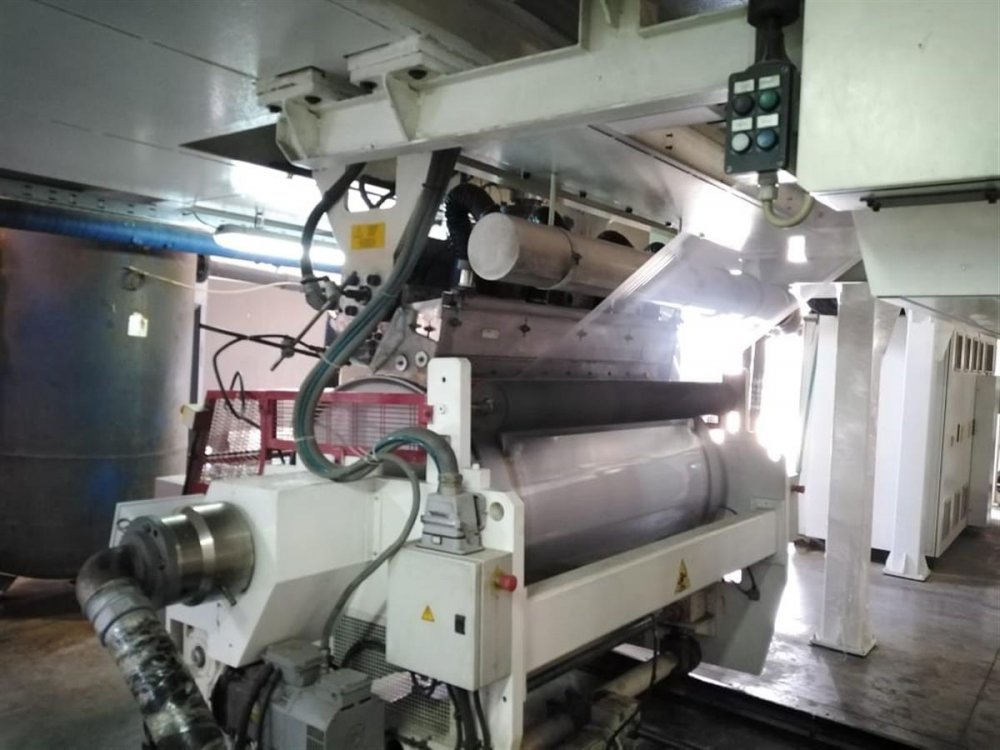

- Chill roll unit
- 960
- Thickness controll system
- Electronic System
- Web guide
- Yes

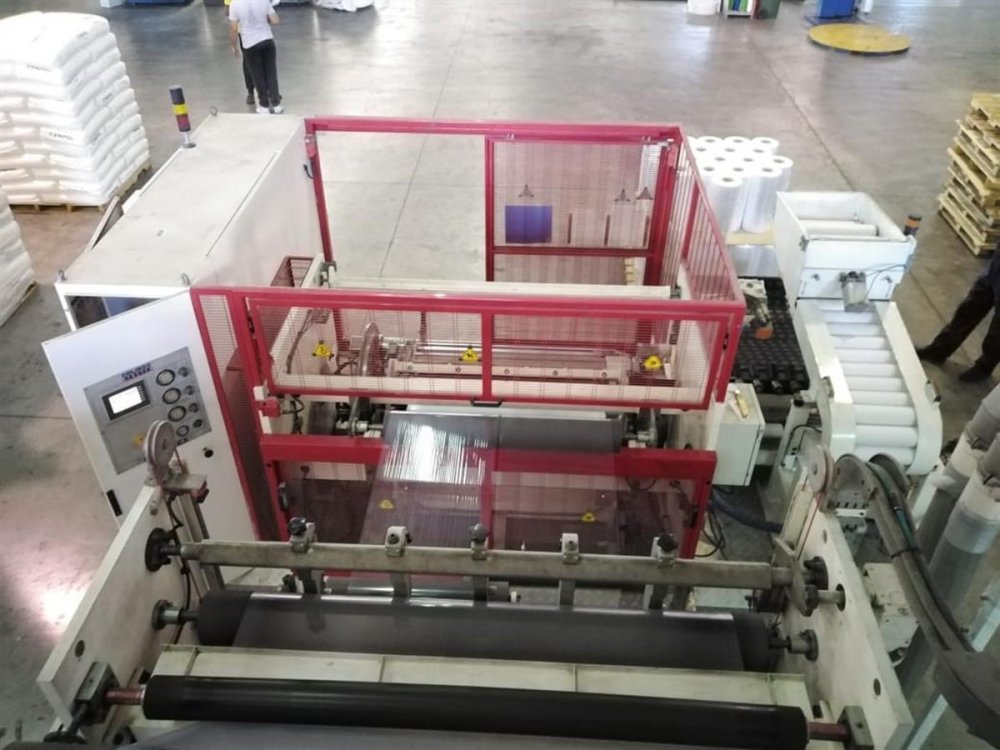

- Rewinder max reel diameter (mm)
- 230 on 3"cores and 80-150mm on 2" cores
- Rewinder description
- Automatic and Manual
- Note

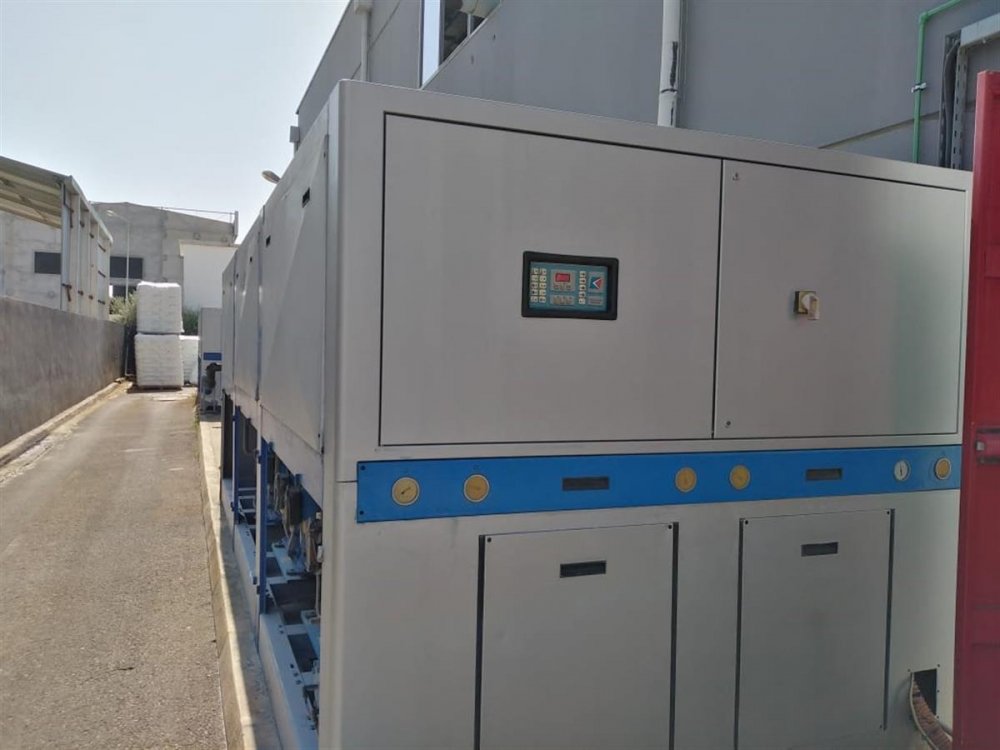

- Thickness range: 12-50my Side trim recycler: Croci Chiller: Eurochiller 300Kw Pumping unit
| Machine Code | CA200 |
| Manufacturer | COLINES |
| Modello | HANDrollEX 1000A |
| Year | 2009 |
| Number of layers | 3 |
| Film structure | ABC |

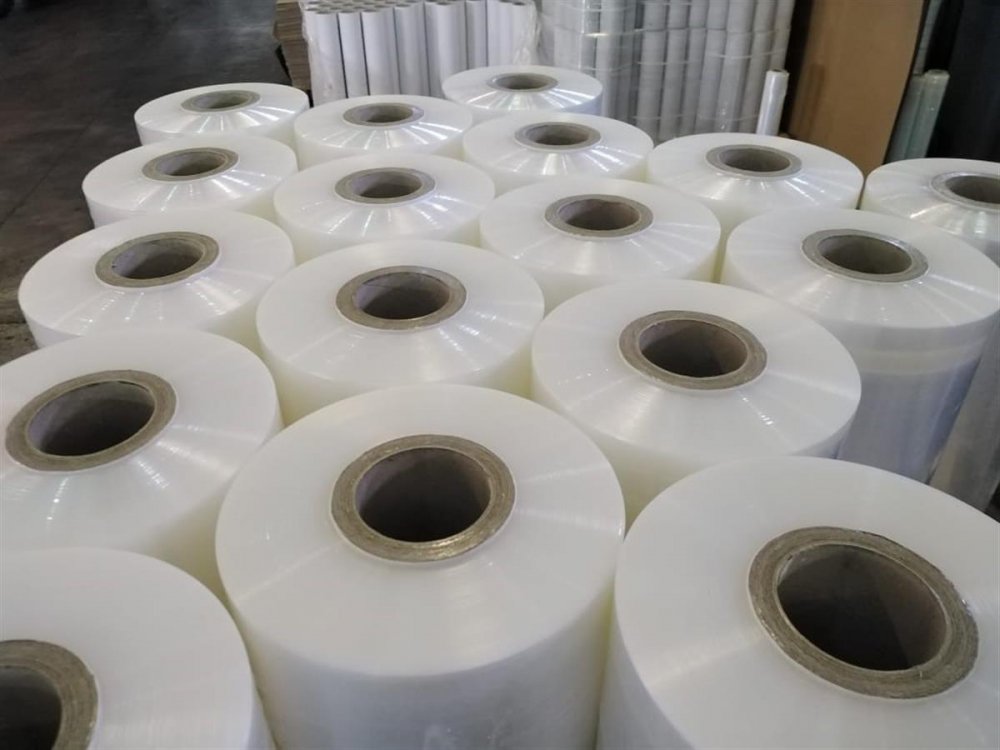

| Material | Stretch film LLDPE |
| Film width (mm) | 1000 |
| Speed (m/min) | up to 600 |
| Output (Kg/h) | 600 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 60/30 LD |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 120/30 LD |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 60/30 LD |
| Head description | FARCON with automatic gauge correction |
| Die width (mm) | 1550 |
| Chill roll unit | 960 |
| Thickness controll system | Electronic System |
| Web guide | Yes |
| Rewinder max reel diameter (mm) | 230 on 3"cores and 80-150mm on 2" cores |
| Rewinder description | Automatic and Manual |
| Note | Thickness range: 12-50my Side trim recycler: Croci Chiller: Eurochiller 300Kw Pumping unit |
WINDMÖLLER & HÖLSCHER FILMEX
-
Machine Code: CA093
-
Year: 1995
-
Film width (mm): 1850
DOLCI FCL-5/H5
-
Machine Code: CA251
-
Year: 2008
-
Film width (mm): 2000

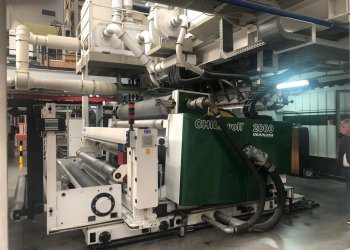

MACCHI
-
