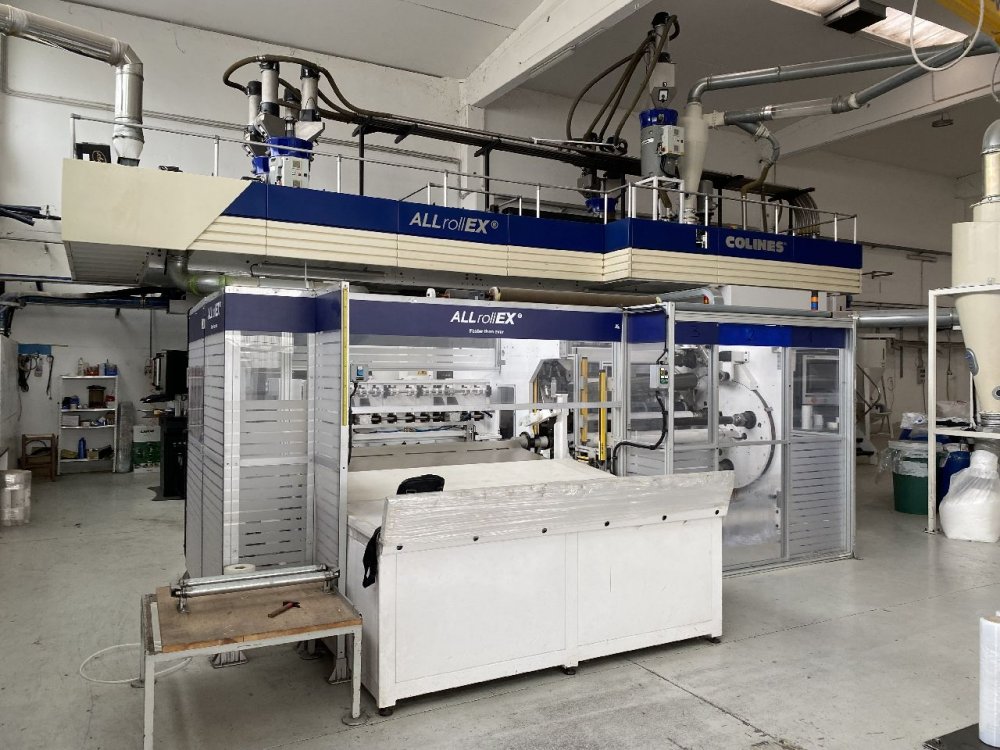

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA256
- Manufacturer
- COLINES
- Modello
- ALLROLL EX 1500
- Year
- 2018
- Number of layers
- 5
- Film structure
- ABCBD
- Material
- Stretch film LLDPE
- Film width (mm)
- 1500
- Speed (m/min)
- 500 MPM
- Output (Kg/h)
- 1100kh/h

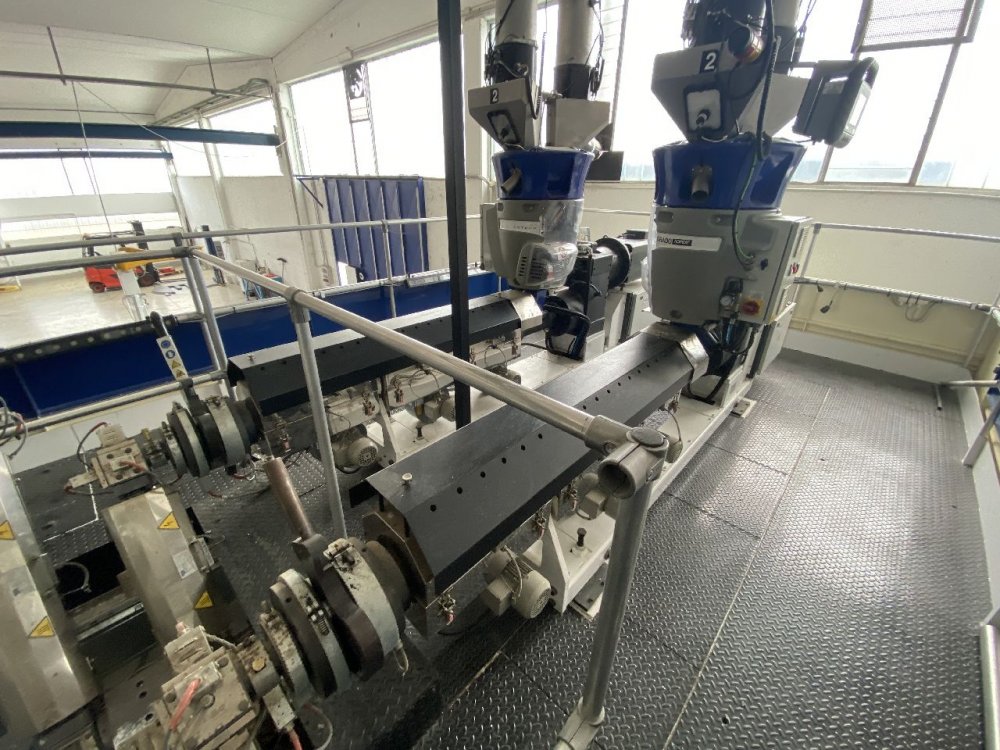

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 80
- Description 1

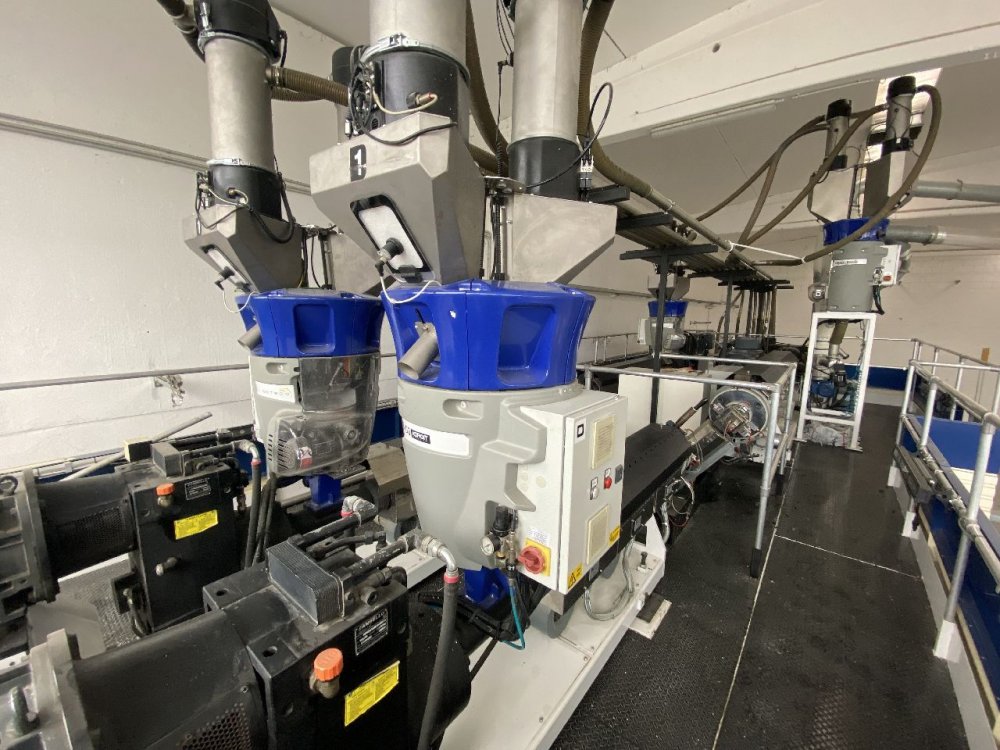

- Main motor 135 Kw AC motor , gravimetric dosers grado 2 comp
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 110
- Description 2
- Main motor 220 Kw AC motor , gravimetric dosers grado 4 comp
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 55
- Description 3
- Main motor 50 Kw - Ac motor, Gravimetric dosing unit Grado 2 comp
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 55
- Description 4
- Main motor 50 Kw - Ac motor, Gravimetric dosing unit Grado 2 comp
- Head description
- MAke : Cloren, vacuum box, edge pinning
- Chill roll unit
- Main chill roler diam 1400mm

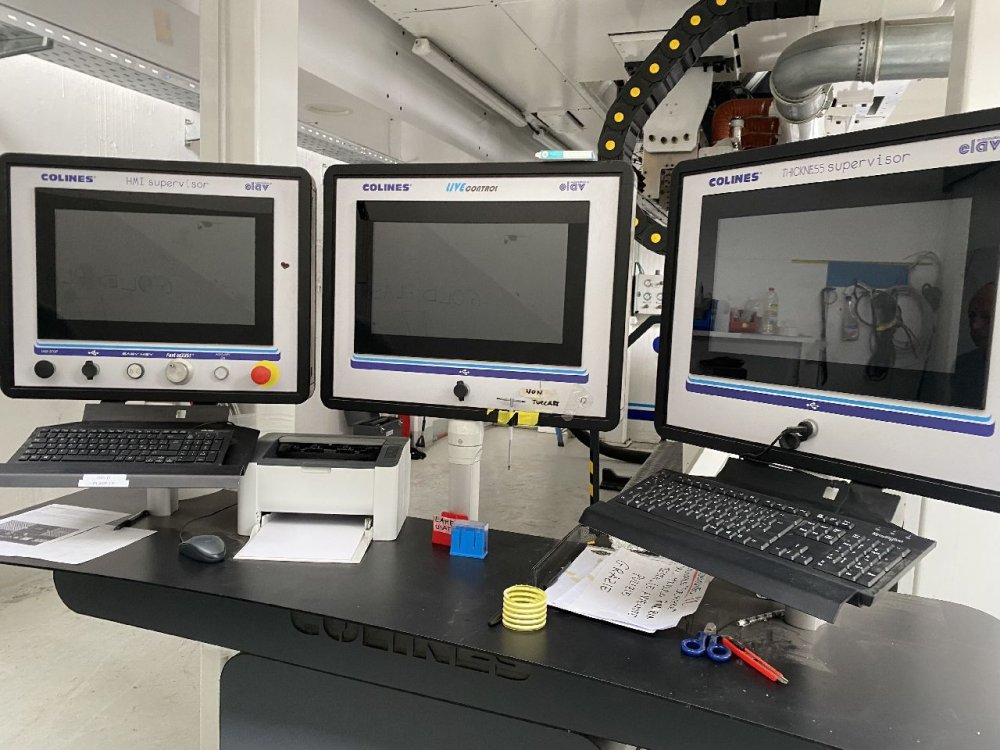

- Thickness controll system
- Automatic Electronic system

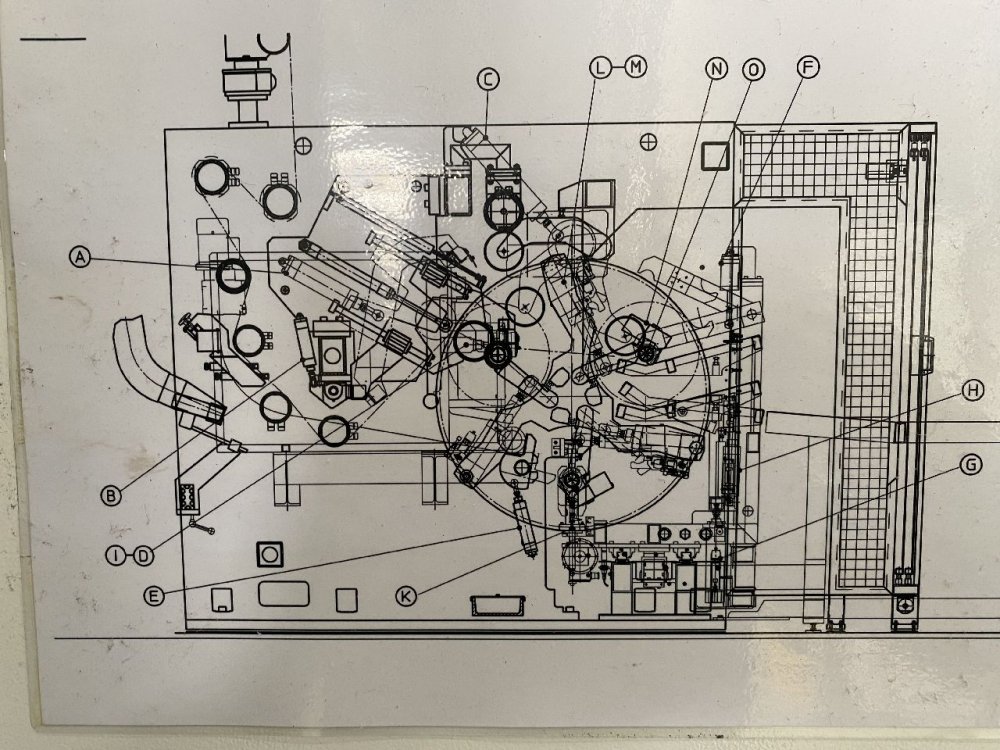

- Rewinder description
- Turret with 3 shafts, 25 sec cycle time. Available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels.
| Machine Code | CA256 |
| Manufacturer | COLINES |
| Modello | ALLROLL EX 1500 |
| Year | 2018 |
| Number of layers | 5 |
| Film structure | ABCBD |
| Material | Stretch film LLDPE |
| Film width (mm) | 1500 |
| Speed (m/min) | 500 MPM |
| Output (Kg/h) | 1100kh/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 80 |
| Description 1 | Main motor 135 Kw AC motor , gravimetric dosers grado 2 comp |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 110 |
| Description 2 | Main motor 220 Kw AC motor , gravimetric dosers grado 4 comp |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 55 |
| Description 3 | Main motor 50 Kw - Ac motor, Gravimetric dosing unit Grado 2 comp |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 55 |
| Description 4 | Main motor 50 Kw - Ac motor, Gravimetric dosing unit Grado 2 comp |
| Head description | MAke : Cloren, vacuum box, edge pinning |
| Chill roll unit | Main chill roler diam 1400mm |
| Thickness controll system | Automatic Electronic system |
| Rewinder description | Turret with 3 shafts, 25 sec cycle time. Available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels. |
