** SOLD **
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
about a similar one
- Machine Code
- CA209
- Manufacturer
- SML
- Year
- 2016
- Number of layers
- 5
- Film structure
- a-b-c-b-a
- Material
- Stretch film LLDPE
- Film width (mm)
- 1500
- Speed (m/min)
- 650
- Output (Kg/h)
- approx 890Kg/h, depending on thicknesses and raw materials
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90mm 33 L/D
- Description 1
- 800 Kg/h synchro gravimetric blenders
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 60mm 28 L/D
- Description 2
- 190 Kg/h synchro gravimetric blenders
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 60mm 28 L/D
- Description 3
- 190 Kg/h synchro gravimetric blenders
- Head description
- ClorenAutomatic thickness profile contol
- Die width (mm)
- 2000
- Chill roll unit
- Diamenter 1200mm , width 2100mm
- Thickness controll system
- Electronic system
- Web guide
- Oshilating frame
- Rewinder description
- Rewinder for hand, machine and jumbo reels, possible on 2" cores for hand reels and 3" cores for machine and jumbo reels. Reel width : 3 X 500mm / 2 X 750mm
| Machine Code | CA209 |
| Manufacturer | SML |
| Year | 2016 |
| Number of layers | 5 |
| Film structure | a-b-c-b-a |
| Material | Stretch film LLDPE |
| Film width (mm) | 1500 |
| Speed (m/min) | 650 |
| Output (Kg/h) | approx 890Kg/h, depending on thicknesses and raw materials |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 90mm 33 L/D |
| Description 1 | 800 Kg/h synchro gravimetric blenders |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 60mm 28 L/D |
| Description 2 | 190 Kg/h synchro gravimetric blenders |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 60mm 28 L/D |
| Description 3 | 190 Kg/h synchro gravimetric blenders |
| Head description | ClorenAutomatic thickness profile contol |
| Die width (mm) | 2000 |
| Chill roll unit | Diamenter 1200mm , width 2100mm |
| Thickness controll system | Electronic system |
| Web guide | Oshilating frame |
| Rewinder description | Rewinder for hand, machine and jumbo reels, possible on 2" cores for hand reels and 3" cores for machine and jumbo reels. Reel width : 3 X 500mm / 2 X 750mm |

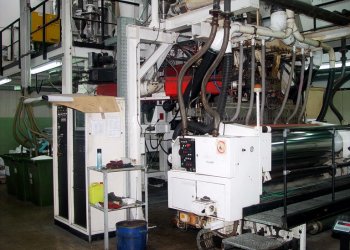

WINDMÖLLER & HÖLSCHER FILMATIC M
-
Machine Code: CA181
-
Year: 1998
-
Film width (mm): 1600
TECHNO COATING ENGINEERING
-
Machine Code: CA230
-
Year: 2001
-
Film width (mm): 2000
TECHNO COATING ENGINEERING
-
Machine Code: CA168
-
Year: 1999
-
Film width (mm): 3000
MACCHI
-
Machine Code: CA235
-
Year: 1999
-
Film width (mm): 1500

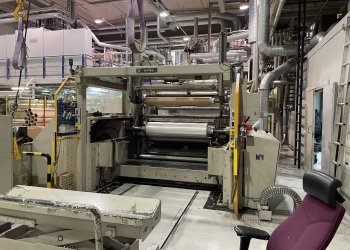

REIFENHAUSER
-
