Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA207
- Manufacturer
- ADTECH PROVERA
- Modello
- HWR 1000/3
- Year
- 2008
- Number of layers
- 3
- Film structure
- ABC
- Material
- STRETCH FILM LLDPE
- Film width (mm)
- 1000
- Speed (m/min)
- 600
- Output (Kg/h)
- 550
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 70mm
- Description 1
- L/D30, AC motor
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 100mm
- Description 2
- L/D30, AC motor
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 55mm
- Description 3
- L/D30, AC motor
- Head description
- Make EDI Autoflex VI, EDI feedblock
- Chill roll unit
- Max diam 1000mm, electro static edge pinning
- Thickness controll system
- X rays gauge
- Web guide
- Oscillating device
- Rewinder max reel diameter (mm)
- 250
- Rewinder description
- Form hand reels and machine reels. Turret type, fast change, automatic reel extraction and core positioning
- Note
- in line edge reclaim system
| Machine Code | CA207 |
| Manufacturer | ADTECH PROVERA |
| Modello | HWR 1000/3 |
| Year | 2008 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | STRETCH FILM LLDPE |
| Film width (mm) | 1000 |
| Speed (m/min) | 600 |
| Output (Kg/h) | 550 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 70mm |
| Description 1 | L/D30, AC motor |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 100mm |
| Description 2 | L/D30, AC motor |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 55mm |
| Description 3 | L/D30, AC motor |
| Head description | Make EDI Autoflex VI, EDI feedblock |
| Chill roll unit | Max diam 1000mm, electro static edge pinning |
| Thickness controll system | X rays gauge |
| Web guide | Oscillating device |
| Rewinder max reel diameter (mm) | 250 |
| Rewinder description | Form hand reels and machine reels. Turret type, fast change, automatic reel extraction and core positioning |
| Note | in line edge reclaim system |
TECHNO COATING ENGINEERING
-
Machine Code: CA230
-
Year: 2001
-
Film width (mm): 2000
COLINES HANDrollEX 1000A
-
Machine Code: CA200
-
Year: 2009
-
Film width (mm): 1000
ERWEPA
-
Machine Code: CA172
-
Year: 1993
-
Film width (mm): 1700

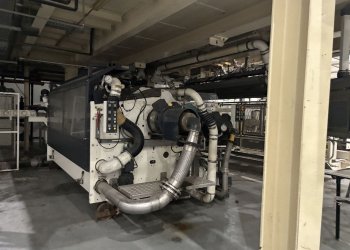

WINDMÖLLER & HÖLSCHER FILMEX
-
