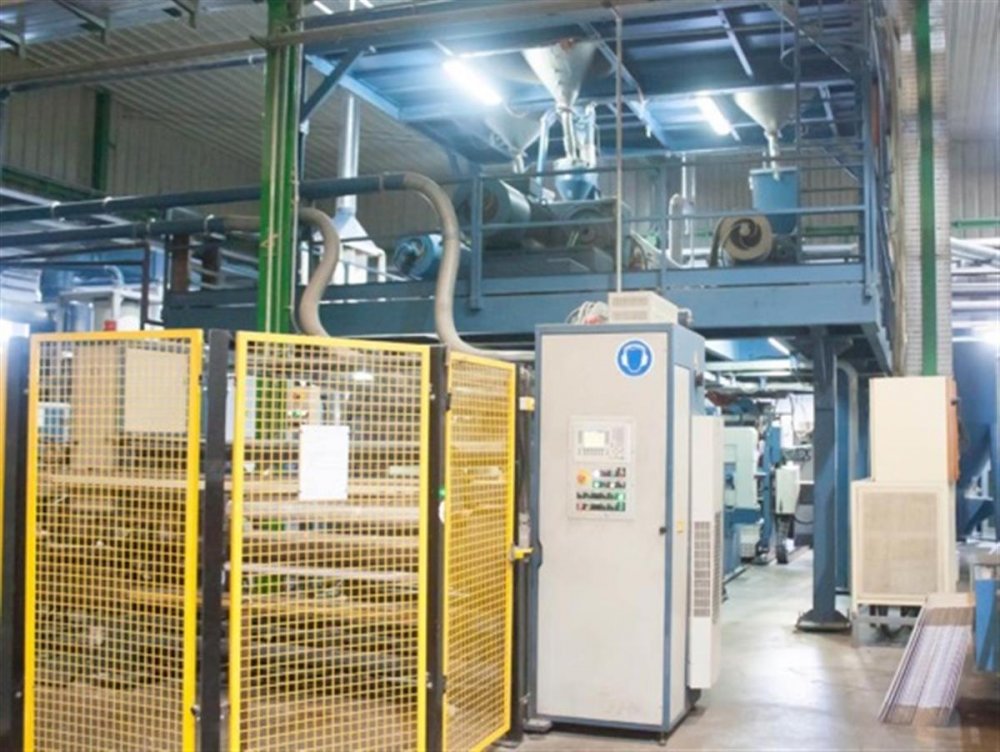

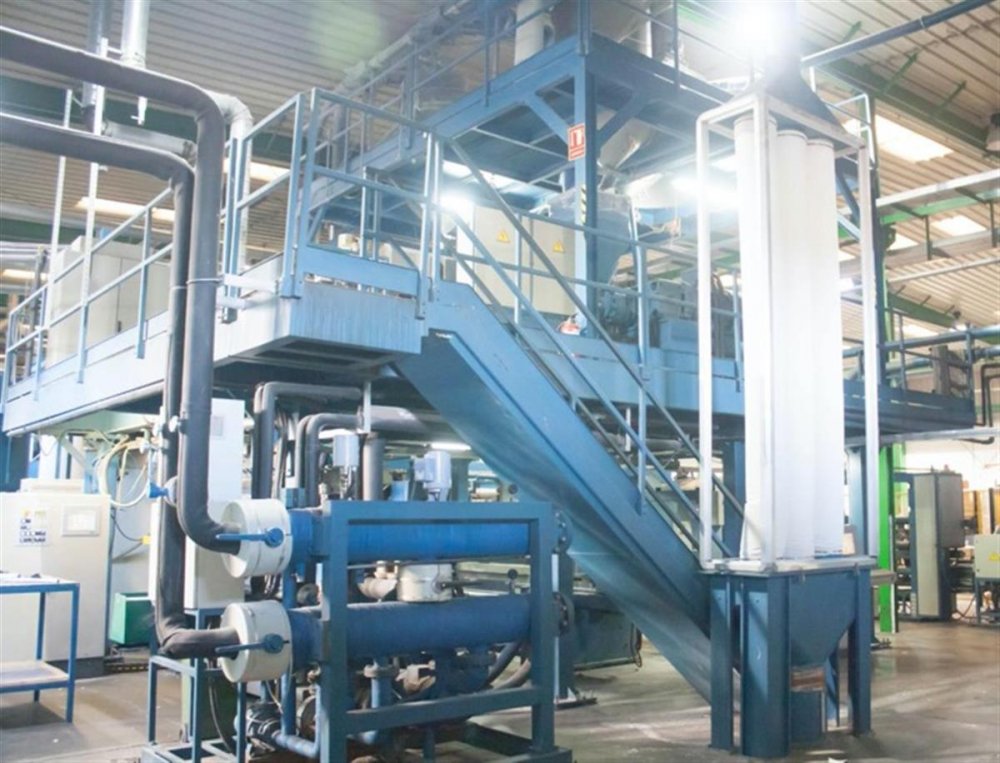

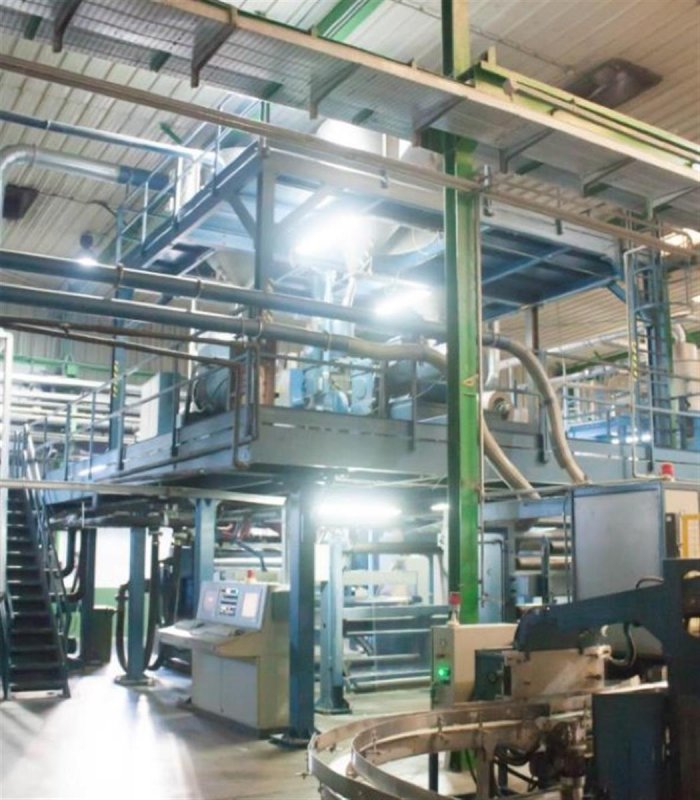

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA205
- Manufacturer
- ADTECH PROVERA
- Year
- 2003
- Number of layers
- 3
- Film structure
- ABC
- Material
- Stretch film LLDPE
- Film width (mm)
- 1500
- Speed (m/min)
- 600
- Output (Kg/h)
- 750
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 80mm
- Description 1
- L/D30, AC Motor
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 120mm
- Description 2
- L/D30, AC Motor
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 80mm
- Description 3
- L/D30, AC Motor
- Head description
- Make Carraro, double chamber air knife
- Chill roll unit
- First chill roller 1 m diam.
- Thickness controll system
- Thickness gauge ADTECH
- Web guide
- Oscillating device
- Rewinder description
- For hand reels
- Note
- in line edge reclaim system
| Machine Code | CA205 |
| Manufacturer | ADTECH PROVERA |
| Year | 2003 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | Stretch film LLDPE |
| Film width (mm) | 1500 |
| Speed (m/min) | 600 |
| Output (Kg/h) | 750 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 80mm |
| Description 1 | L/D30, AC Motor |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 120mm |
| Description 2 | L/D30, AC Motor |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 80mm |
| Description 3 | L/D30, AC Motor |
| Head description | Make Carraro, double chamber air knife |

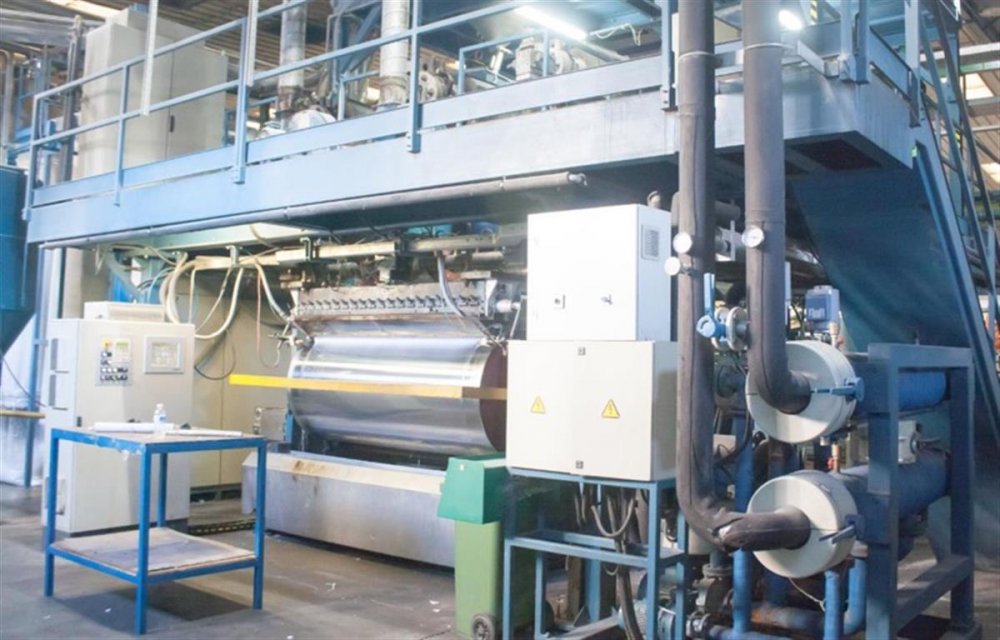

| Chill roll unit | First chill roller 1 m diam. |
| Thickness controll system | Thickness gauge ADTECH |
| Web guide | Oscillating device |
| Rewinder description | For hand reels |
| Note | in line edge reclaim system |
