5 layers WINDMÖLLER & HÖLSCHER FILMEX Cast film machine

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Ask more informations
Machine Code
CA174
Manufacturer
WINDMÖLLER & HÖLSCHER
Modello
FILMEX
Year
2008
Number of layers
5
Film structure
A-B-C-D-E
Material
CPP, STRETCH FILM, Barrier fim
Film width (mm)
2100
Output (Kg/h)
1000
Extruder 1 Layer ref:
A
Screw diam 1
120
Extruder 2 Layer ref:
B
Screw diam 2
50
Extruder 3 Layer ref:
C
Screw diam 3
70
Extruder 4 Layer ref:
D
Screw diam 4
50
Extruder 5 Layer ref:
E
Screw diam 5
70
Head description
Automatic with external deckling 1800mm
Die width (mm)
For net film width 2100

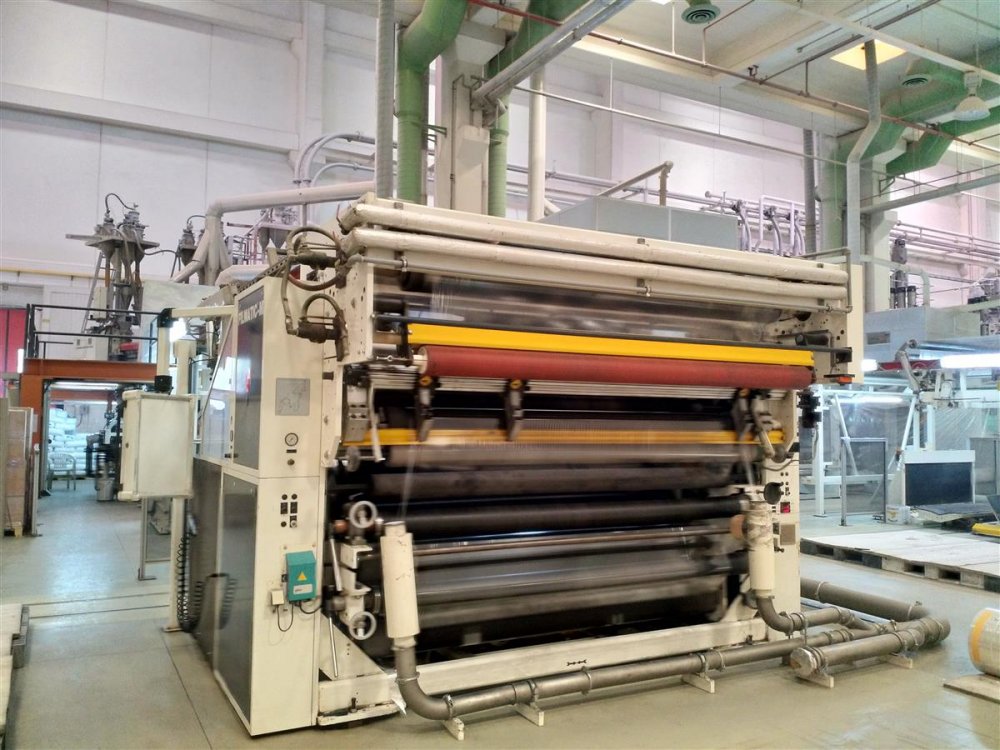

Chill roll unit
2200mm wide

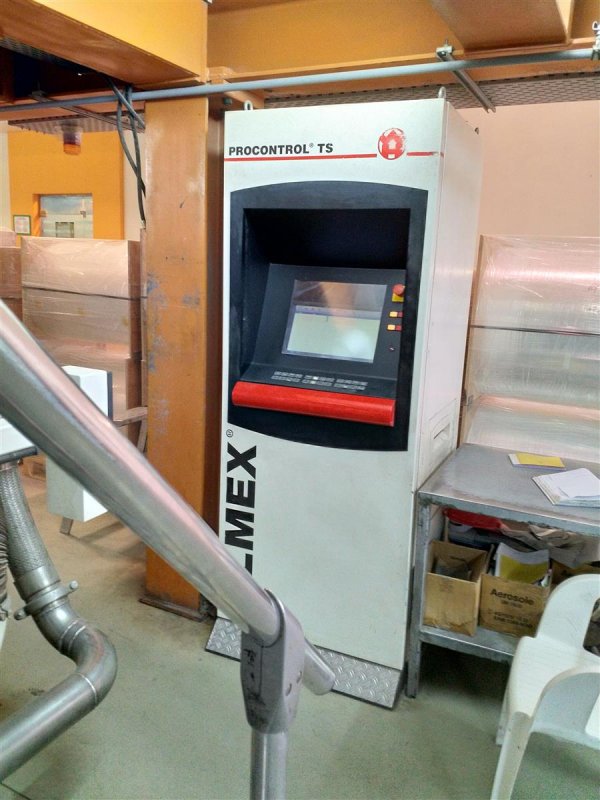

Thickness controll system
Thickness control –beta control

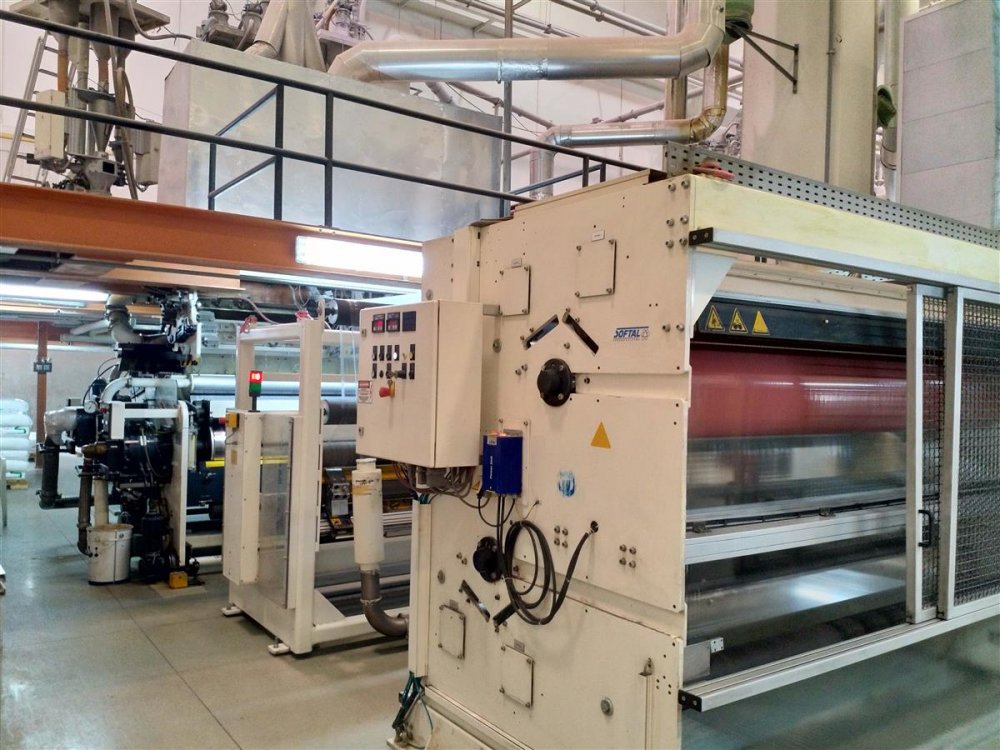

Corona treatment
Yes
Web guide
yes

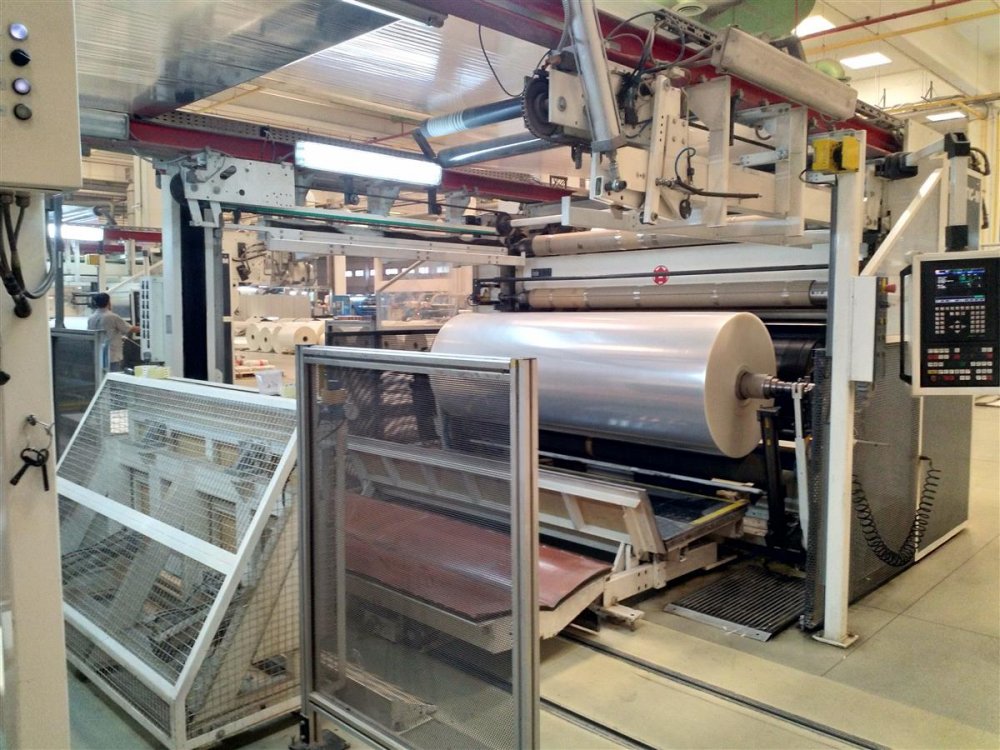

Rewinder max reel diameter (mm)
800
Note
Corona treater - softal Tension control - Siemens+ Hettinger Baldwin Messtechnic siemens software S 5
Machine Code CA174
Manufacturer WINDMÖLLER & HÖLSCHER
Modello FILMEX
Year 2008
Number of layers 5
Film structure A-B-C-D-E
Material CPP, STRETCH FILM, Barrier fim
Film width (mm) 2100
Output (Kg/h) 1000
Extruder 1 Layer ref: A
Screw diam 1 120
Extruder 2 Layer ref: B
Screw diam 2 50
Extruder 3 Layer ref: C
Screw diam 3 70
Extruder 4 Layer ref: D
Screw diam 4 50
Extruder 5 Layer ref: E
Screw diam 5 70
Head description Automatic with external deckling 1800mm
Die width (mm) For net film width 2100
Chill roll unit 2200mm wide
Thickness controll system Thickness control –beta control
Corona treatment Yes
Web guide yes
Rewinder max reel diameter (mm) 800
Note Corona treater - softal Tension control - Siemens+ Hettinger Baldwin Messtechnic siemens software S 5
