Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA174
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- FILMEX
- Year
- 2000
- Number of layers
- 5
- Film structure
- A-B-C-D-E
- Material
- CPP, STRETCH FILM, Barrier fim
- Film width (mm)
- 2100
- Output (Kg/h)
- 1000
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 120
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 50
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 70
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 50
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 70
- Head description
- Automatic with external deckling 1800mm
- Die width (mm)
- For net film width 2100

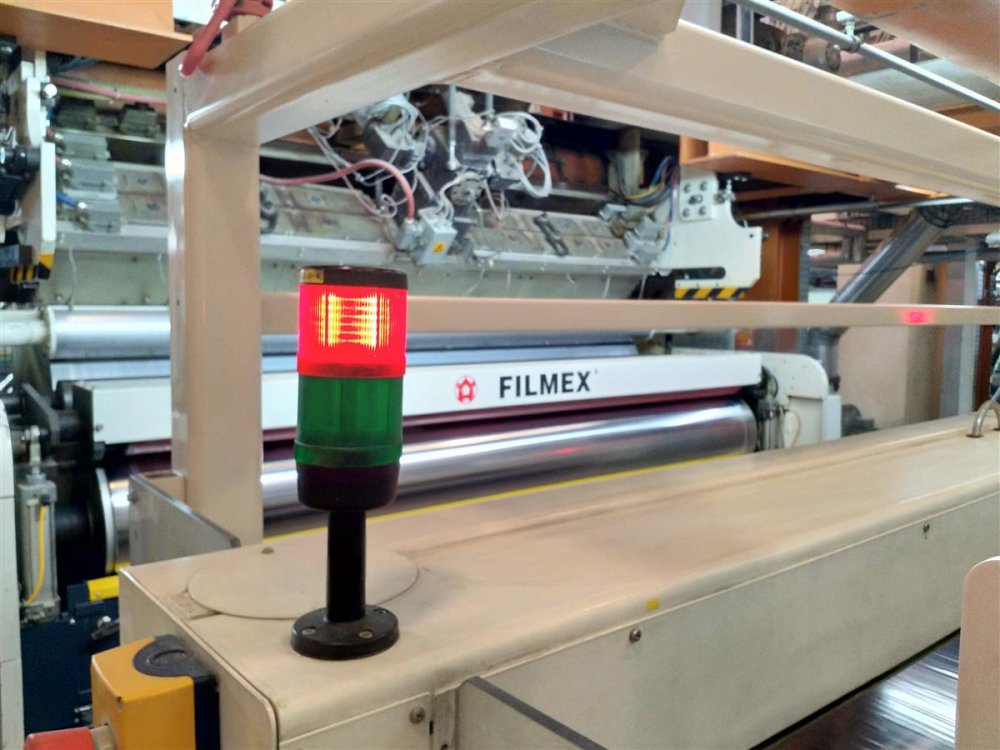

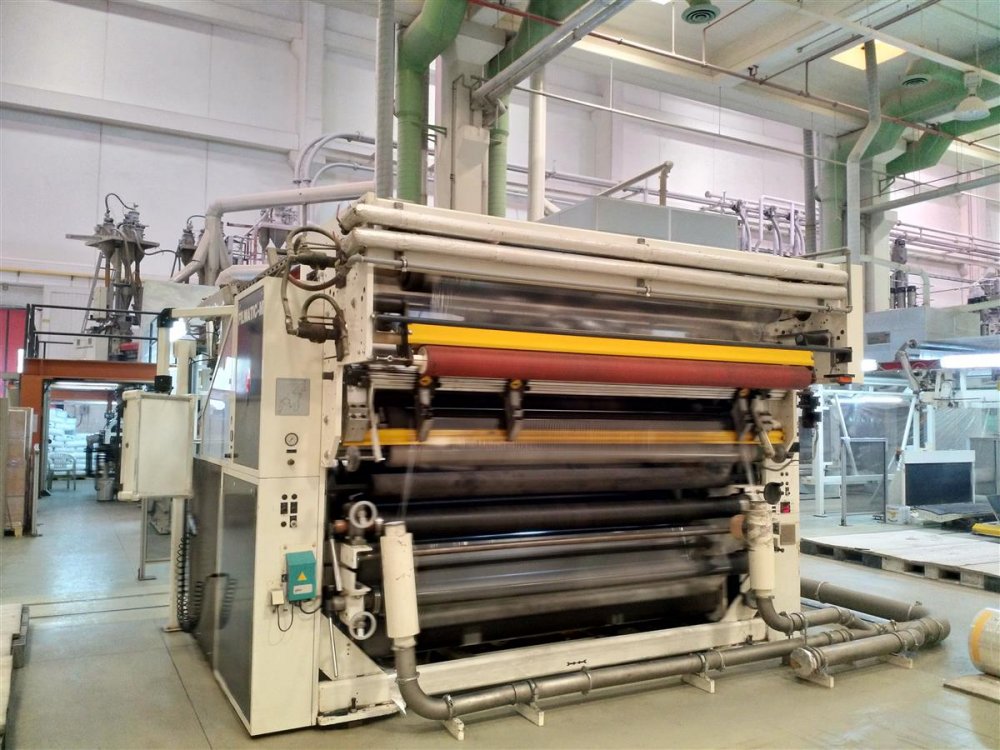

- Chill roll unit
- 2200mm wide

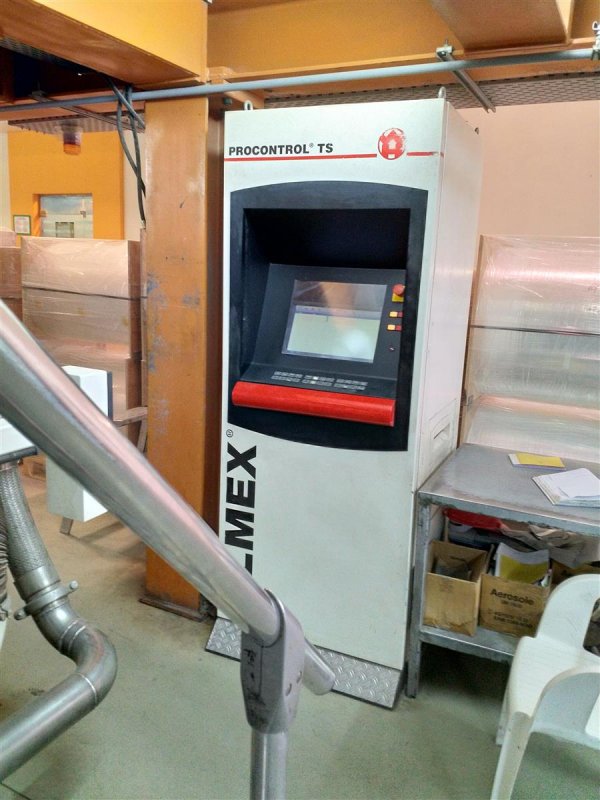

- Thickness controll system
- Thickness control –beta control

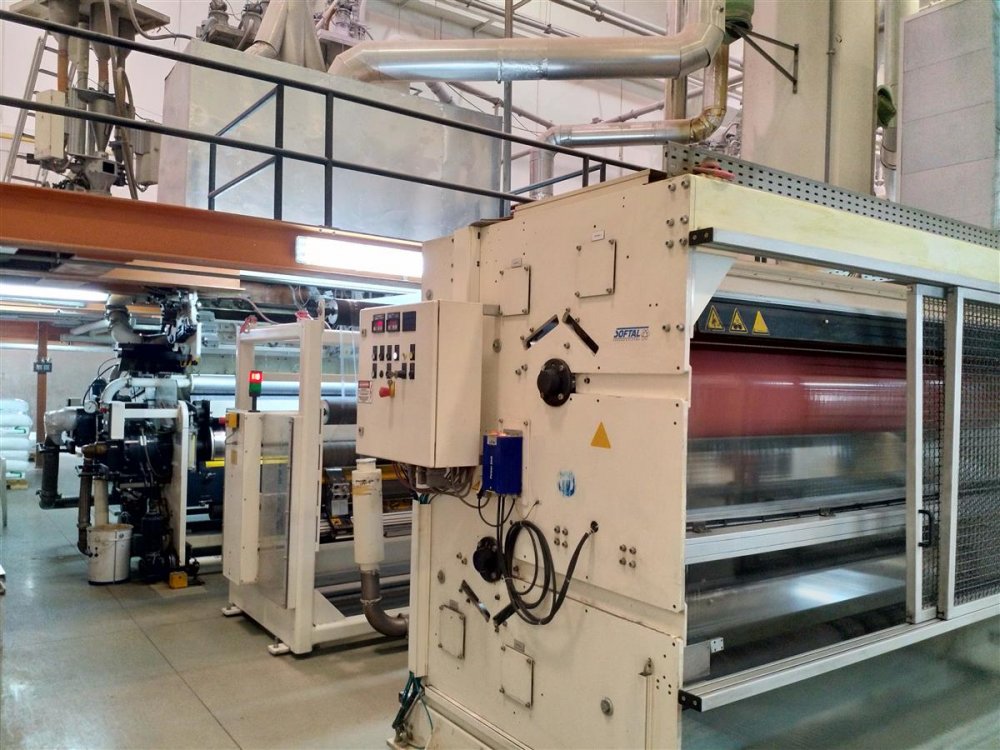

- Corona treatment
- Yes
- Web guide
- yes

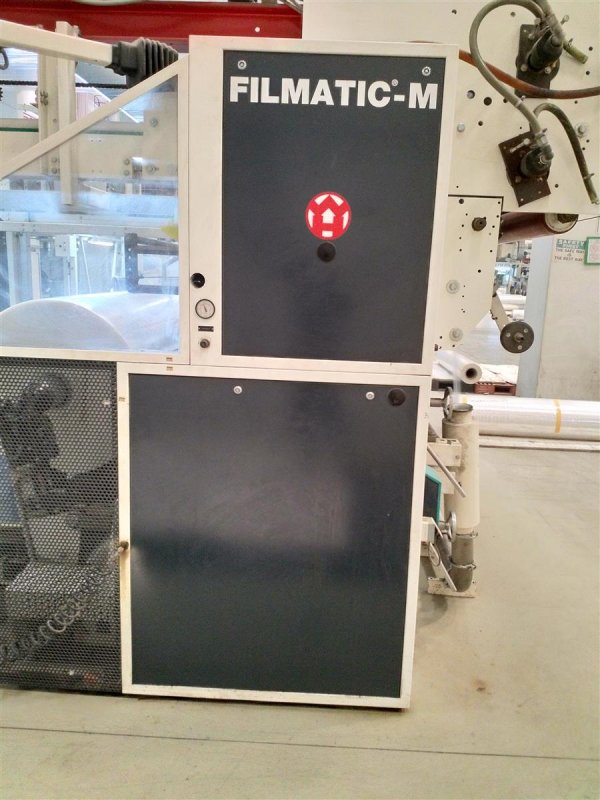

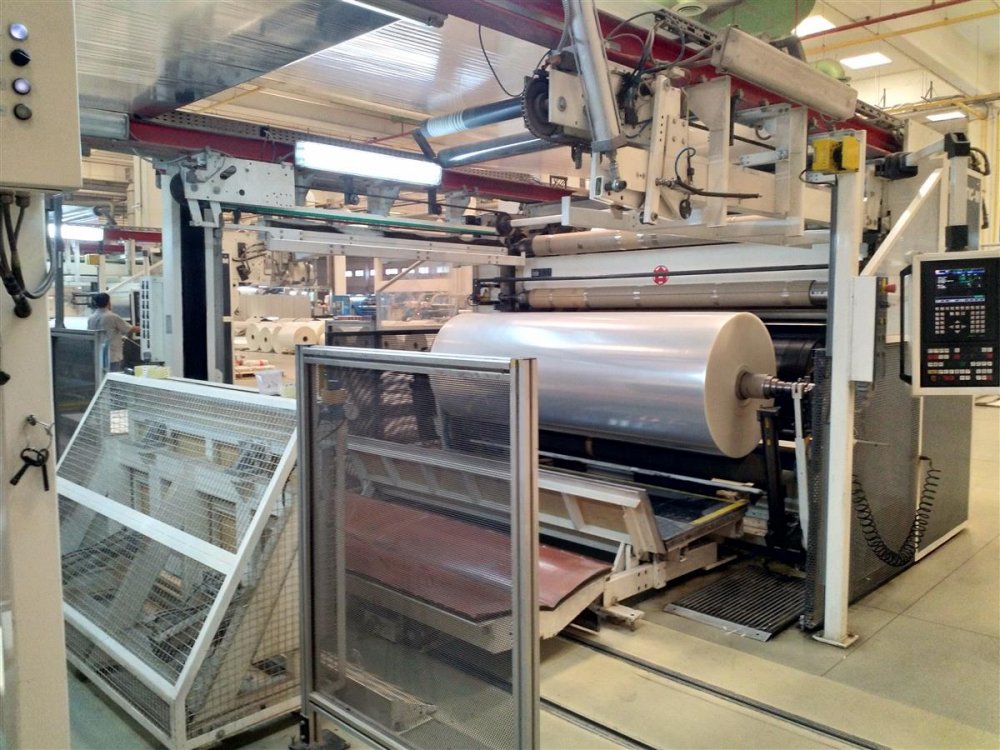

- Rewinder max reel diameter (mm)
- 800
- Note
- Corona treater - softal Tension control - Siemens+ Hettinger Baldwin Messtechnic siemens software S 5
| Machine Code | CA174 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | FILMEX |
| Year | 2000 |
| Number of layers | 5 |
| Film structure | A-B-C-D-E |
| Material | CPP, STRETCH FILM, Barrier fim |
| Film width (mm) | 2100 |
| Output (Kg/h) | 1000 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 120 |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 50 |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 70 |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 50 |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 70 |
| Head description | Automatic with external deckling 1800mm |
| Die width (mm) | For net film width 2100 |
| Chill roll unit | 2200mm wide |
| Thickness controll system | Thickness control –beta control |
| Corona treatment | Yes |
| Web guide | yes |
| Rewinder max reel diameter (mm) | 800 |
| Note | Corona treater - softal Tension control - Siemens+ Hettinger Baldwin Messtechnic siemens software S 5 |
