Flexographic printing machines (often abbreviated as flexo printer) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FM157
- Manufacturer
- OLIVINI
- Year
- 1990
- Number of colors
- 4
- Overhaul/renovation

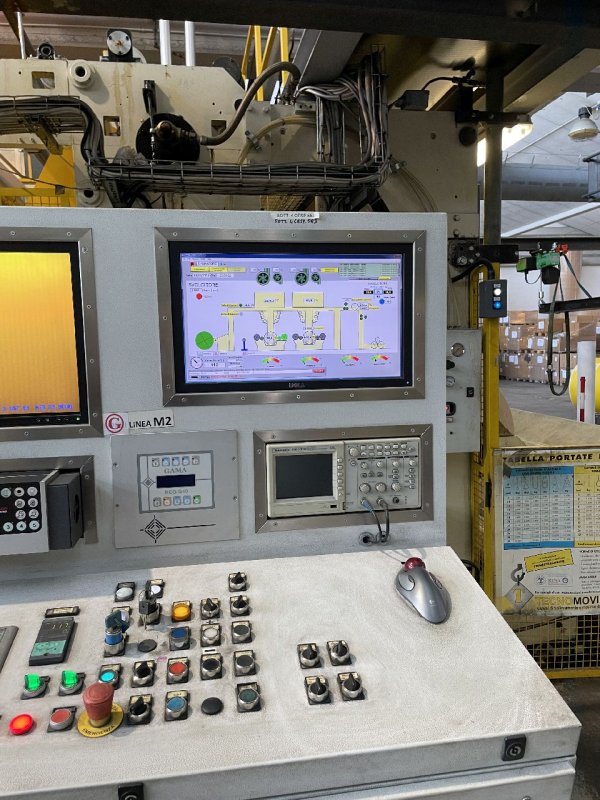

- Machine renovates in 2012. Including new PLC Siemens S/, New HMI panel and SW. Video camera
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 2600
- Print width (mm)
- 2650
- Drying
- 4 hoods, thermal oil heaters +1x IR heaters

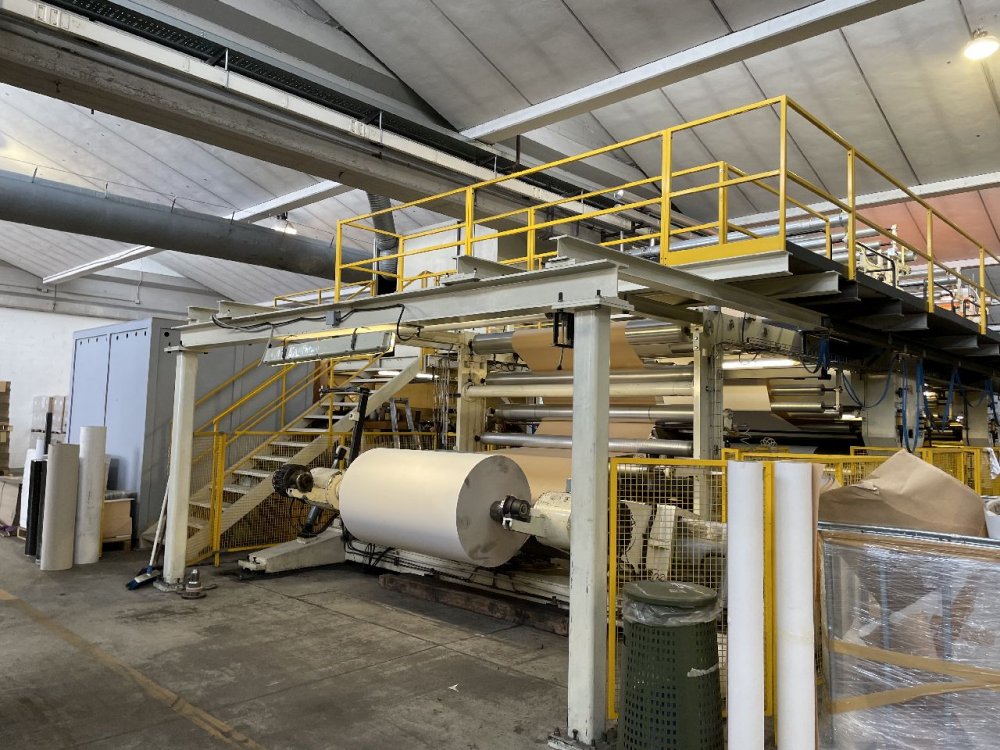

- Unwinder type
- Shaftless, reel lift up from floor, double pneumatic break
- Max reel diameter unwinder (mm)
- 1600
- Rewinder type
- Surface, 2 drum winder
- Max reel diameter rewinder (mm)
- 1600
- Videocamera
- BST Handy scan 3000
- Web guides
- Gama
- Chamber doctor blades
- All 4 units with closed chamber doctor blade and ceramic anilox
- Anilox
- 4 ceramic anilox
- Print cylinders
- sets available
| Machine Code | FM157 |
| Manufacturer | OLIVINI |
| Year | 1990 |
| Number of colors | 4 |
| Overhaul/renovation | Machine renovates in 2012. Including new PLC Siemens S/, New HMI panel and SW. Video camera |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 2600 |
| Print width (mm) | 2650 |
| Drying | 4 hoods, thermal oil heaters +1x IR heaters |
| Unwinder type | Shaftless, reel lift up from floor, double pneumatic break |
| Max reel diameter unwinder (mm) | 1600 |
| Rewinder type | Surface, 2 drum winder |
| Max reel diameter rewinder (mm) | 1600 |
| Videocamera | BST Handy scan 3000 |
| Web guides | Gama |
| Chamber doctor blades | All 4 units with closed chamber doctor blade and ceramic anilox |
| Anilox | 4 ceramic anilox |
| Print cylinders | sets available |
