** SOLD **
Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
about a similar one
- Machine Code
- FM152
- Manufacturer
- GONDERFLEX
- Year
- 2013
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- Web width (mm)
- 780
- Print width (mm)
- 760
- Min print repeat (mm)
- 220
- Max print repeat (mm)
- 600
- Drying
- There is electric heat in the drying with a heater and blower for every two units. There are I.R. elements built into each station. There are individual blowers for every two stations, infrared heat.
- Unwinder type
- Includes single position shafted
- Max reel diameter unwinder (mm)
- 760
- Rewinder type
- Includes single position shafted
- Max reel diameter rewinder (mm)
- 760
- Corona treatment
- Yes
- Chamber doctor blades
- Reversc angle doctor blades inking system
- Anilox
- 12
- Print Sleeves
- 110
- Note
- -formerly Acquaflex -rated speed is 500ft/min -360 register gear box direct drive (no back gearing mean no oiling requested) -DC motor driven longitudinal register motors AC motor drive for slow rotation anilox roller -
| Machine Code | FM152 |
| Manufacturer | GONDERFLEX |
| Year | 2013 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| Web width (mm) | 780 |
| Print width (mm) | 760 |
| Min print repeat (mm) | 220 |
| Max print repeat (mm) | 600 |
| Drying | There is electric heat in the drying with a heater and blower for every two units. There are I.R. elements built into each station. There are individual blowers for every two stations, infrared heat. |
| Unwinder type | Includes single position shafted |
| Max reel diameter unwinder (mm) | 760 |
| Rewinder type | Includes single position shafted |
| Max reel diameter rewinder (mm) | 760 |
| Corona treatment | Yes |
| Chamber doctor blades | Reversc angle doctor blades inking system |
| Anilox | 12 |
| Print Sleeves | 110 |
| Note | -formerly Acquaflex -rated speed is 500ft/min -360 register gear box direct drive (no back gearing mean no oiling requested) -DC motor driven longitudinal register motors AC motor drive for slow rotation anilox roller - |
OLIVINI
-
Machine Code: FM158
-
Year: 1989
-
Web width (mm): 2600

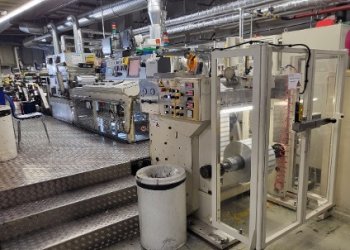

BHS F400-3FUV
-
