** SOLD **

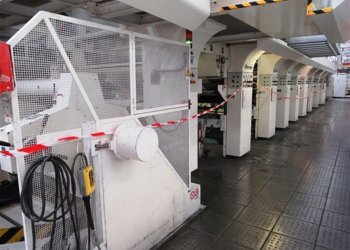

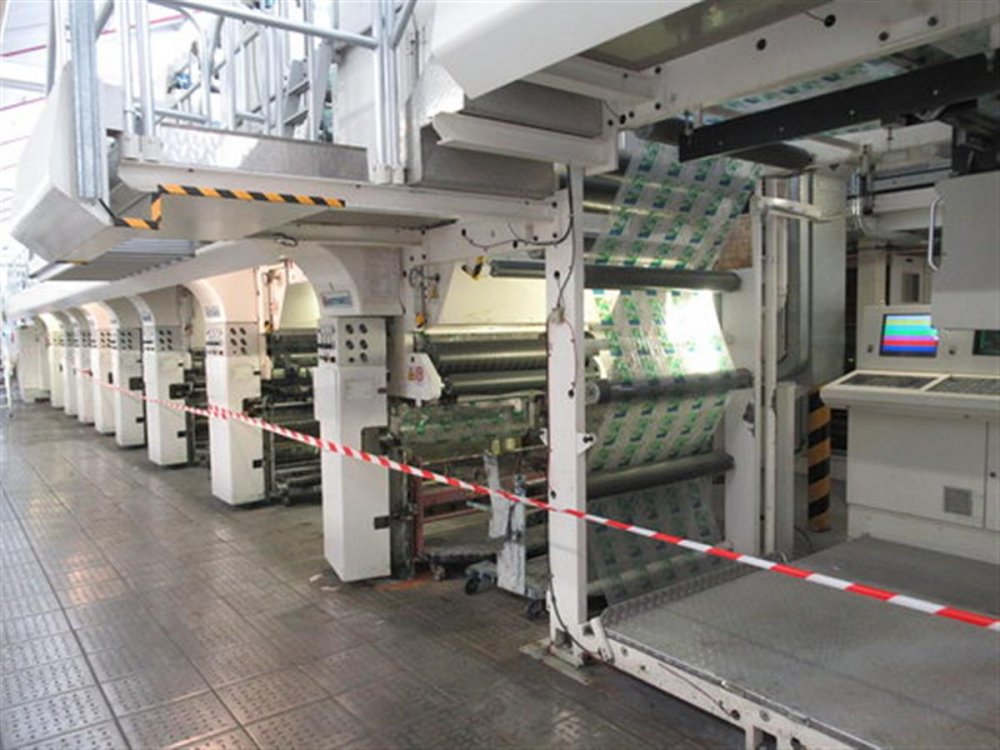

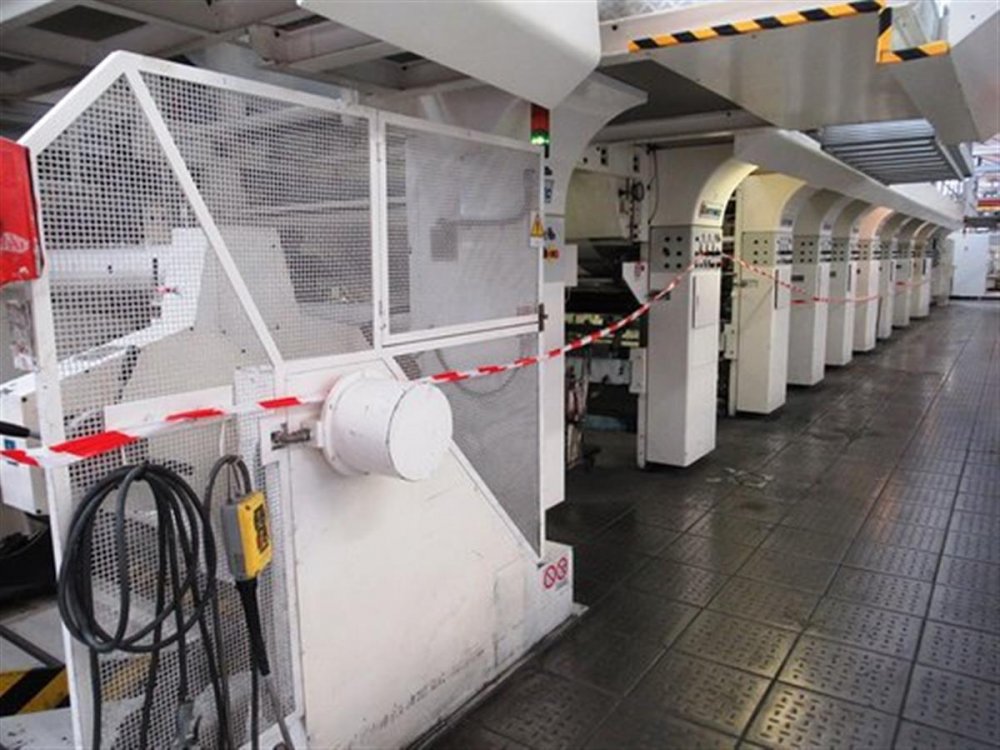

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
about a similar one
- Machine Code
- RO204

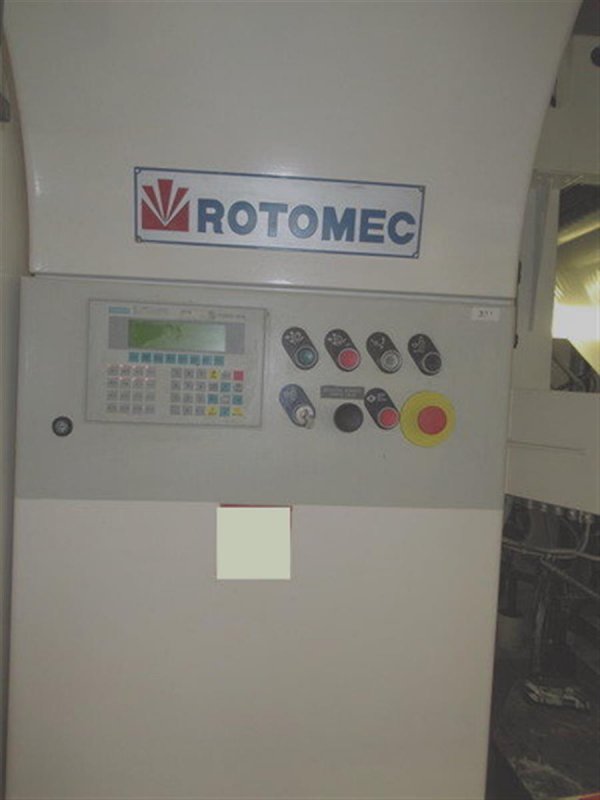

- Manufacturer
- ROTOMEC
- Modello
- Rotopack 3000-3
- Year
- 1997
- Number of colors
- 8
- Print possibilities
- 8+0 ; 7+1, 8 col printing or 7 col printing and 1 unit coating (e.g. cold seal)
- Overhaul/renovation
- Register control and videocamera year 2002

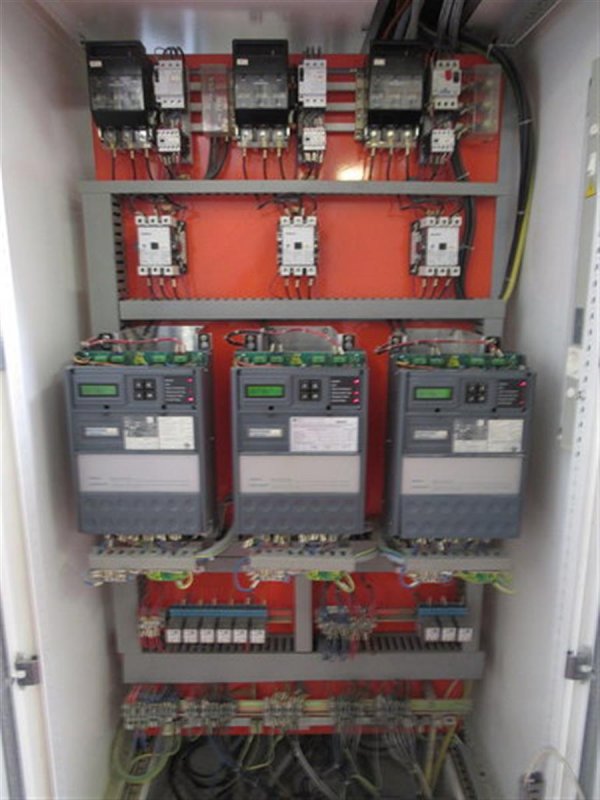

- Drive
- Cardan
- Trolley system
- Yes
- Web width (mm)
- 1020
- Print width (mm)
- 1000
- Print repeat range (mm)
- 500-920mm

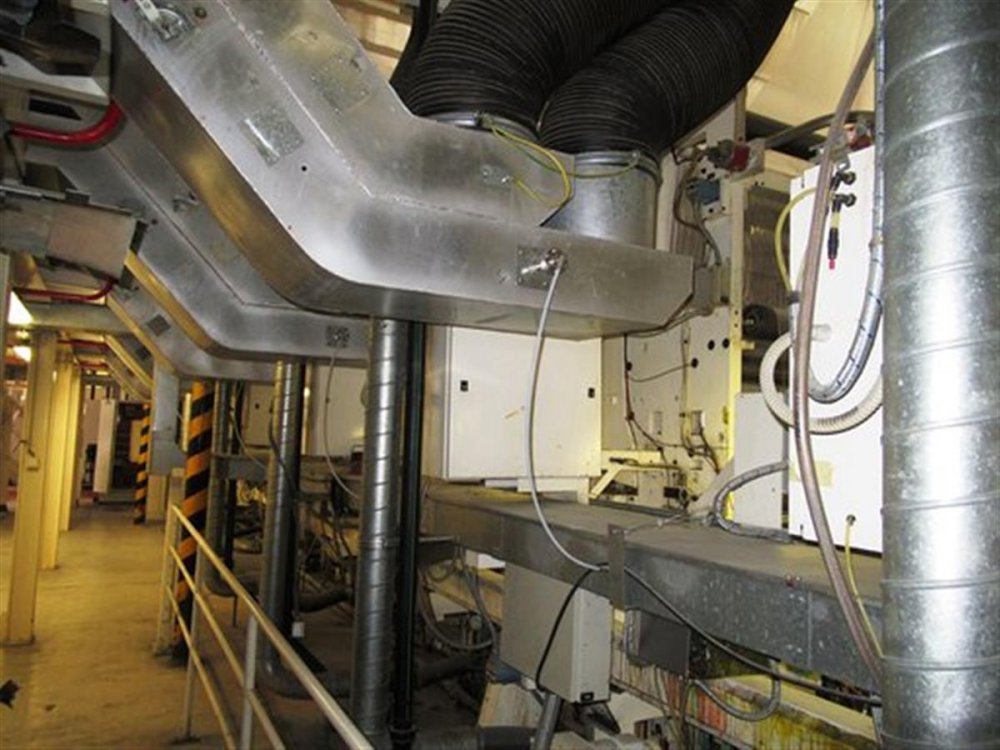

- Drying specifications
- Unit 1-6 single hood, unit 7-8 double hood
- Drying heat surce
- Thermal oil
- Unwinder type
- Turret (cores 76-152mm)
- Rewinder type
- Turret (cores 76-152mm)
- Videocamera
- Eltromat year 2002. with defect control

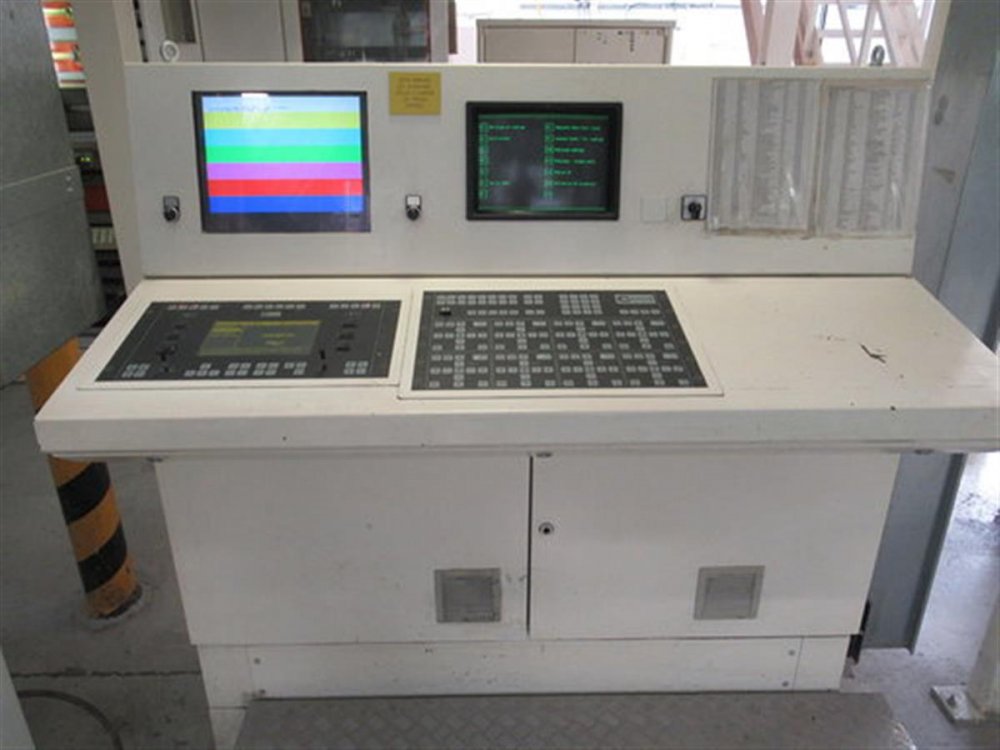

- Register controll
- Eltromat DCG650 year 2002
- Vyscosity control
- FASNACHT FKR-MP2 et Z3337 A

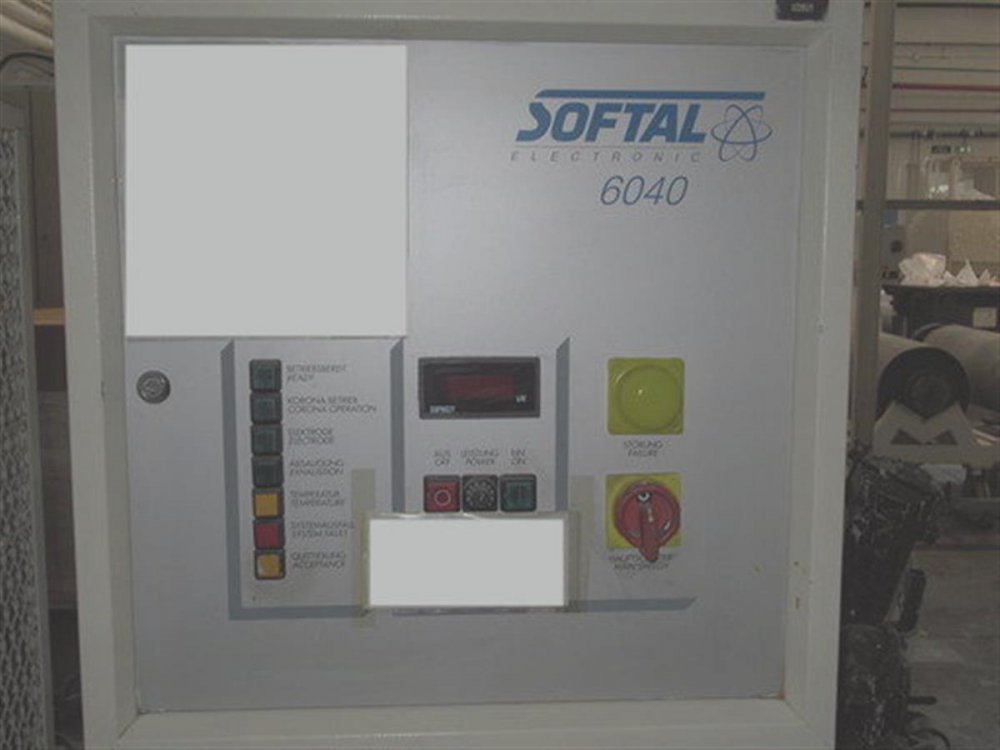

- Corona treatment
- SOftal 6040
- Note
- - Electrostatic help from BADINA - 1 Oxydry system - 1 web alignment sytem from BST with optical cell and ultrasonic sensor - - 1 humidifyer - Pre-conditioning of web with heated calander at 200°C - 16 blade supports - 16 connectors and bearings - 16 ink application units - 8 filters - 12 trolleys - 12 pumps - 9 electrical motors for pumps
| Machine Code | RO204 |
| Manufacturer | ROTOMEC |
| Modello | Rotopack 3000-3 |
| Year | 1997 |
| Number of colors | 8 |
| Print possibilities | 8+0 ; 7+1, 8 col printing or 7 col printing and 1 unit coating (e.g. cold seal) |
| Overhaul/renovation | Register control and videocamera year 2002 |
| Drive | Cardan |
| Trolley system | Yes |
| Web width (mm) | 1020 |
| Print width (mm) | 1000 |
| Print repeat range (mm) | 500-920mm |
| Drying specifications | Unit 1-6 single hood, unit 7-8 double hood |
| Drying heat surce | Thermal oil |
| Unwinder type | Turret (cores 76-152mm) |
| Rewinder type | Turret (cores 76-152mm) |
| Videocamera | Eltromat year 2002. with defect control |
| Register controll | Eltromat DCG650 year 2002 |
| Vyscosity control | FASNACHT FKR-MP2 et Z3337 A |
| Corona treatment | SOftal 6040 |
| Note | - Electrostatic help from BADINA - 1 Oxydry system - 1 web alignment sytem from BST with optical cell and ultrasonic sensor - - 1 humidifyer - Pre-conditioning of web with heated calander at 200°C - 16 blade supports - 16 connectors and bearings - 16 ink application units - 8 filters - 12 trolleys - 12 pumps - 9 electrical motors for pumps |
COMEXI ACOM R2
-
Machine Code: RO197
-
Year: 2017
-
Web width (mm): 1050

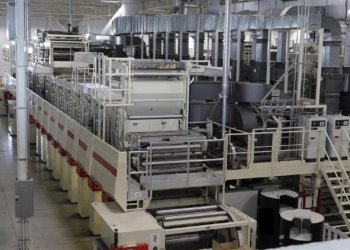

ACOM RG Platinum
-
