Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO197
- Manufacturer

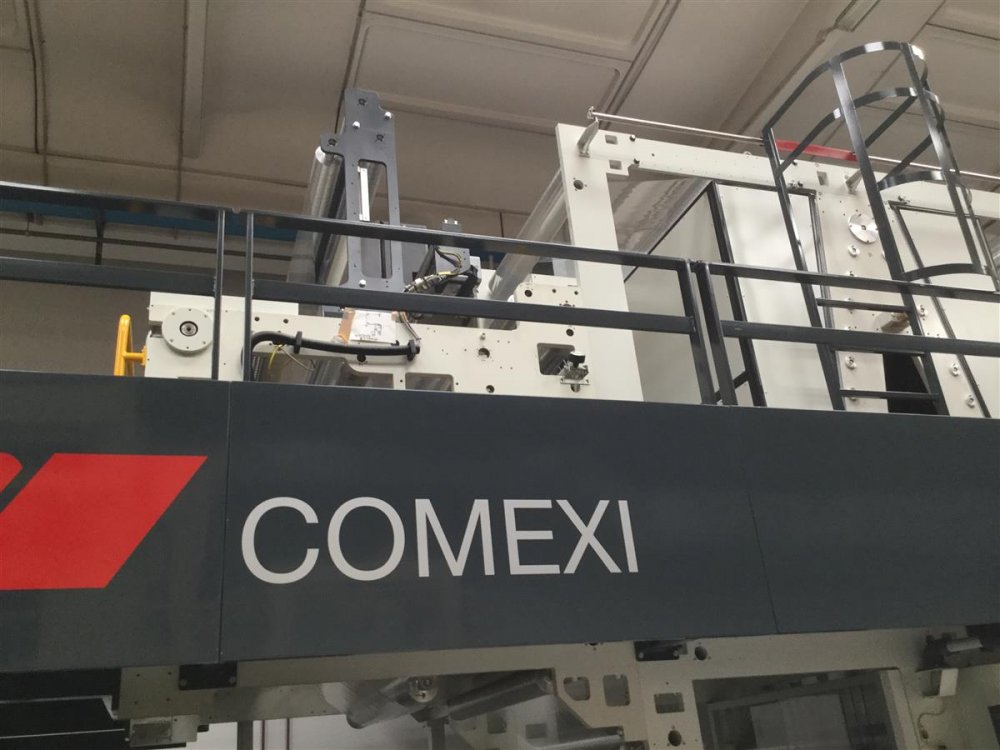

- COMEXI ACOM
- Modello

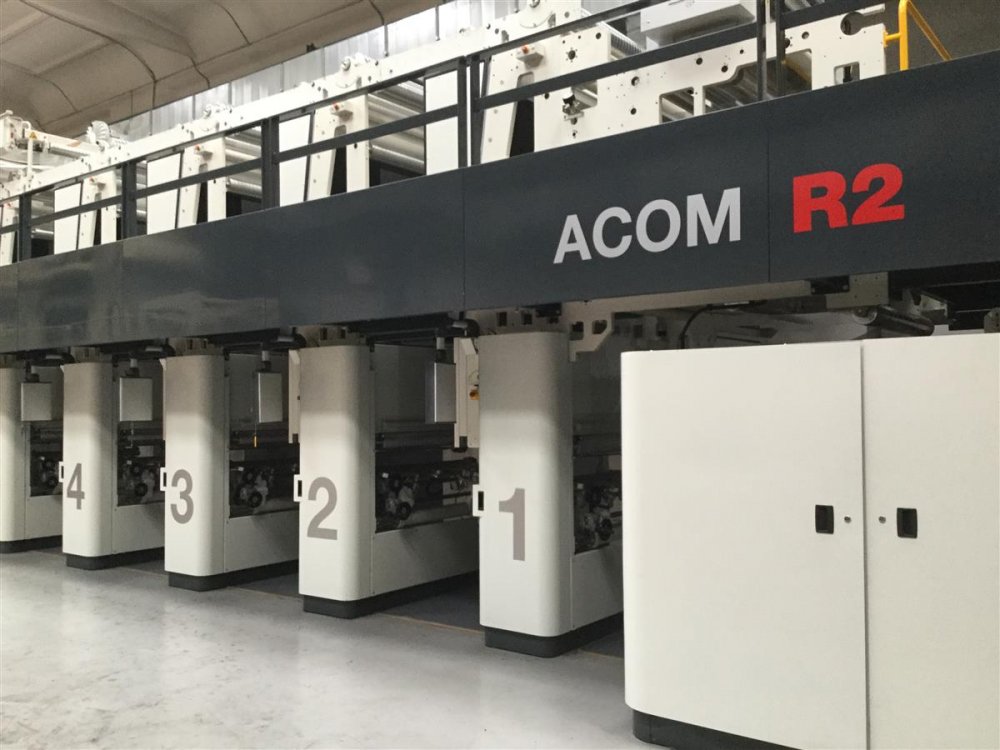

- R2
- Year
- 2017
- Number of colors
- 6
- Print possibilities
- 6+0 , 5+1
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1030
- Print repeat range (mm)
- 450 - 920
- Drying specifications
- Units 1- 5 single hood 1,8 mt , unit 6 double extended hood 2 x 2,2 mt
- Drying heat surce
- Thermo oil heat exchanger

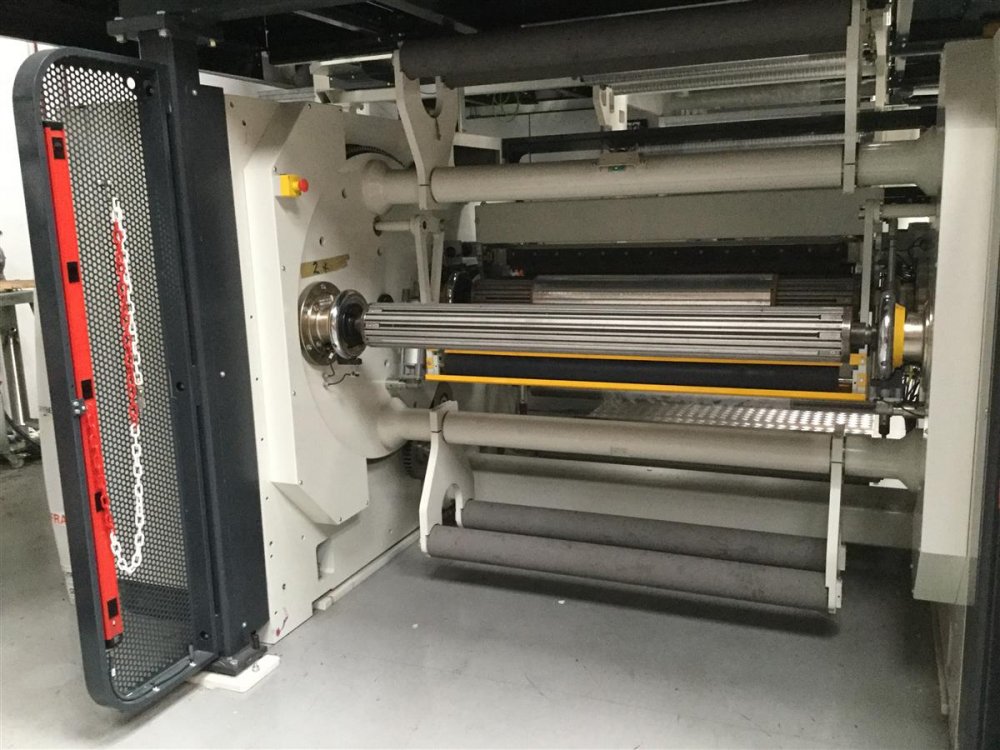

- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- BST ELTROMAT Web video Eltromat 500
- Register controll
- ELTROMAT ( with reading heads with possibility to read triangular marks 10x6)
- Vyscosity control
- YES
- Corona treatment
- AHLBRANDT
- Note
- - Mechanical speed 350 m/min - Max width for print cylinders 1100mm - 2 x 76mm shaft, 4x 152mm shafts - Elecctrostatic assistance Enulec on 6 print units + anti static bars on un and rewind - LEL system make MSA, IR sensors Turning bar before 6th station OPTION Additional gravure coating unit Acom
| Machine Code | RO197 |
| Manufacturer | COMEXI ACOM |
| Modello | R2 |
| Year | 2017 |
| Number of colors | 6 |
| Print possibilities | 6+0 , 5+1 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1030 |
| Print repeat range (mm) | 450 - 920 |
| Drying specifications | Units 1- 5 single hood 1,8 mt , unit 6 double extended hood 2 x 2,2 mt |
| Drying heat surce | Thermo oil heat exchanger |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | BST ELTROMAT Web video Eltromat 500 |
| Register controll | ELTROMAT ( with reading heads with possibility to read triangular marks 10x6) |
| Vyscosity control | YES |
| Corona treatment | AHLBRANDT |
| Note | - Mechanical speed 350 m/min - Max width for print cylinders 1100mm - 2 x 76mm shaft, 4x 152mm shafts - Elecctrostatic assistance Enulec on 6 print units + anti static bars on un and rewind - LEL system make MSA, IR sensors Turning bar before 6th station OPTION Additional gravure coating unit Acom |
