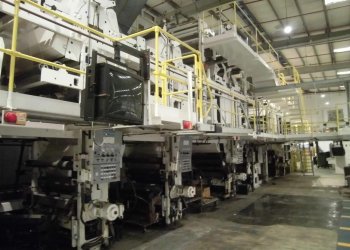

BOBST ROTOMEC G3 Gravure printing machine 8 colors // Rotogravure // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.

Photo Gallery

Machine Code: RO178
Manufacturer: BOBST ROTOMEC
Modello: G3
Year: 1991
Number of colors: 8
Web width (mm): 1020
Print width (mm): 1000
Unwinder type: Turret
Max reel diameter unwinder (mm): 1000
Note: 8 color gravure printing in register . Max mechanical speed 270mpm; Web max/min 1020-500mm Splicer and tension control column Inlet Connection Crossbeam Tension control nip unit Passage on web turn bars Web turn bar Laminator: - a dry bond laminator located on the right hand side of station 9 #station 9 - solvent based or water based coating on the printed side of the main web #station 10 cold seal coating in register Materials: BOPP 40-120my; PET min 12my; LDPE 20-60my; Cellophane 28-45 g/m2 ; Oriented Nylon min 12my; Alu foil 12-40 my; Paper 80-100my E& L web guide system

Machine Code	RO178
Manufacturer	BOBST ROTOMEC
Modello	G3
Year	1991
Number of colors	8
Web width (mm)	1020
Print width (mm)	1000
Unwinder type	Turret
Max reel diameter unwinder (mm)	1000
Note	8 color gravure printing in register . Max mechanical speed 270mpm; Web max/min 1020-500mm Splicer and tension control column Inlet Connection Crossbeam Tension control nip unit Passage on web turn bars Web turn bar Laminator: - a dry bond laminator located on the right hand side of station 9 #station 9 - solvent based or water based coating on the printed side of the main web #station 10 cold seal coating in register Materials: BOPP 40-120my; PET min 12my; LDPE 20-60my; Cellophane 28-45 g/m2 ; Oriented Nylon min 12my; Alu foil 12-40 my; Paper 80-100my E& L web guide system
