Gravure presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
- Machine Code
- RO149
- Manufacturer
- CERUTTI
- Modello
- R 960
- Year
- 2001
- Number of colors
- 10
- Print possibilities
- 10 colors; 3 printing groups with double hood , first group in reverse
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Print repeat range (mm)
- 450-950 mm
- Drying specifications
- Unit 9 and 10 with double hoods 5.7 M Air vol 10.000 m3/h,others with single hoods 2.7m air vol 7700m3/h
- Drying heat surce
- Thermal oil
- Unwinder type
- Flying splice turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Flying splice turret
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- AVT 2 side
- Register controll
- Eltromat
- Vyscosity control
- 10 viscometers GAMA; 20 ink pumps
- Corona treatment
- Mero
- Print cylinders
- Printing cilynders sleeves.Pressure rollers sleeves
- Note
- Gearless rotogravure press 10 colors in register or 9 colors + cold seal in register Speed:350mpm Ink Solvent base Applied Substrates: Paper 50-100 g / m2 BOPP 18-40 microns PET 12-20 mm OPA 12-20 microns PP 12-50 microns CE mark; 20 shaft ; 20 printing trolleys;
| Machine Code | RO149 |
| Manufacturer | CERUTTI |
| Modello | R 960 |
| Year | 2001 |
| Number of colors | 10 |
| Print possibilities | 10 colors; 3 printing groups with double hood , first group in reverse |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Print repeat range (mm) | 450-950 mm |
| Drying specifications | Unit 9 and 10 with double hoods 5.7 M Air vol 10.000 m3/h,others with single hoods 2.7m air vol 7700m3/h |
| Drying heat surce | Thermal oil |
| Unwinder type | Flying splice turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Flying splice turret |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | AVT 2 side |
| Register controll | Eltromat |
| Vyscosity control | 10 viscometers GAMA; 20 ink pumps |
| Corona treatment | Mero |
| Print cylinders | Printing cilynders sleeves.Pressure rollers sleeves |
| Note | Gearless rotogravure press 10 colors in register or 9 colors + cold seal in register Speed:350mpm Ink Solvent base Applied Substrates: Paper 50-100 g / m2 BOPP 18-40 microns PET 12-20 mm OPA 12-20 microns PP 12-50 microns CE mark; 20 shaft ; 20 printing trolleys; |
SungAn SPRINT 250 – D8
-
Machine Code: RO199
-
Year: 2002
-
Web width (mm): 1250
SCHIAVI PATRIOT
-
Machine Code: RO147
-
Year: 1995
-
Web width (mm): 1430
COMEXI ACOM R2
-
Machine Code: RO197
-
Year: 2017
-
Web width (mm): 1050
S.A.M. SPRINTER 300
-
Machine Code: RO222
-
Year: 2006
-
Web width (mm): 1250

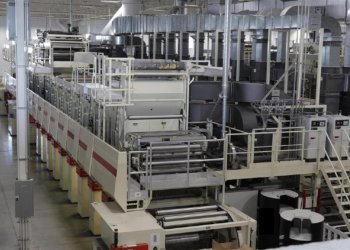

ACOM RG Platinum
-
