** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL488
- Manufacturer
- WINDMÖLLER & HÖLSCHER

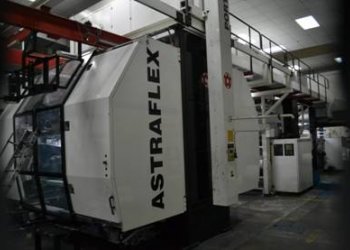

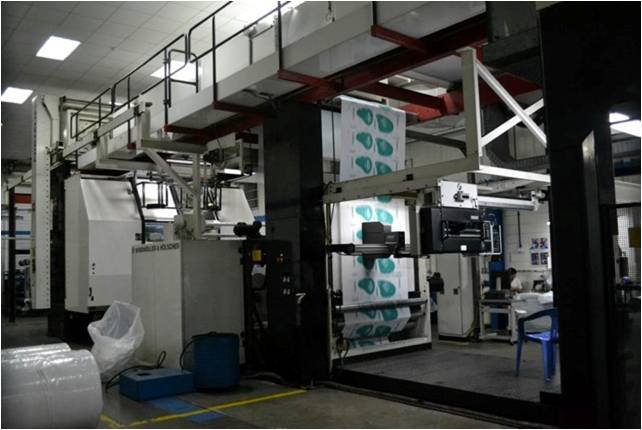

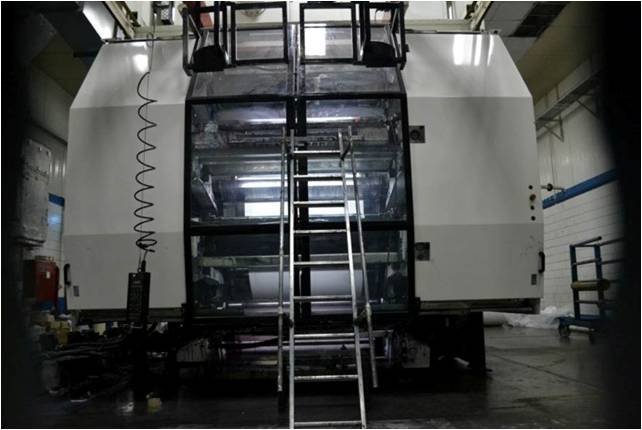

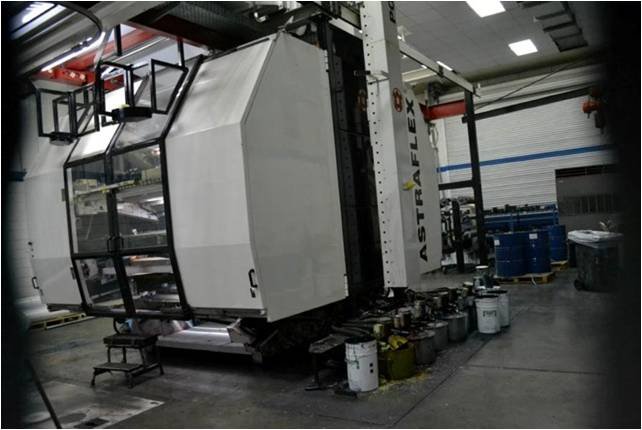

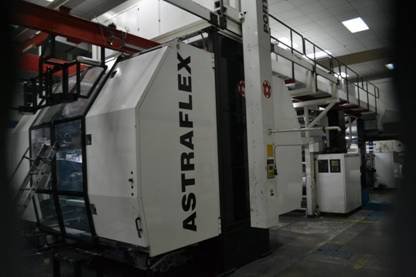

- Modello
- ASTRAFLEX
- Year
- 2000
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1010
- Unwinder type
- TURRET AUTOMATIC
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- TURRET AUTOMATIC
- Max reel diameter rewinder (mm)
- 1000
- Drying
- electric
- Videocamera
- BST
- Corona treatment
- YES
- Web guides
- BST
- Vyscosity control
- No
- Inking system
- Closed chamber Doctor blades
- Anilox
- 13 pcs from 80L/cm to 340L/cm
- Print Sleeves
- 296 - sleeve change out of the machine

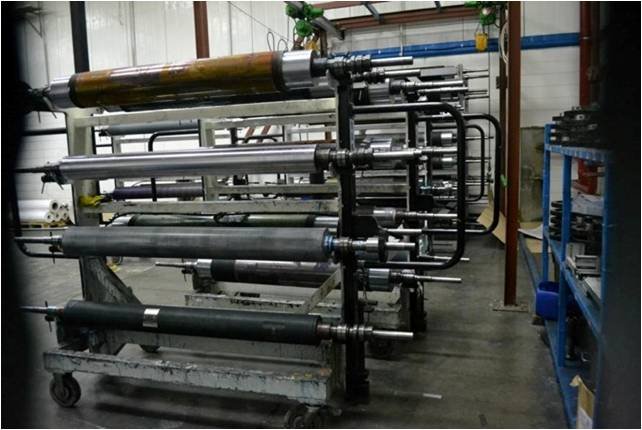

- Print cylinders
- Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine
- Note
- Output : 364m/min ; Material PE , LDPE, PP, Polyamide, Hdpe, OPP, Paper.Include all parts & accessories.
| Machine Code | FL488 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 2000 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1010 |
| Unwinder type | TURRET AUTOMATIC |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET AUTOMATIC |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | electric |
| Videocamera | BST |
| Corona treatment | YES |
| Web guides | BST |
| Vyscosity control | No |
| Inking system | Closed chamber Doctor blades |
| Anilox | 13 pcs from 80L/cm to 340L/cm |
| Print Sleeves | 296 - sleeve change out of the machine |
| Print cylinders | Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine |
| Note | Output : 364m/min ; Material PE , LDPE, PP, Polyamide, Hdpe, OPP, Paper.Include all parts & accessories. |
