Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1153
- Manufacturer
- UTECO
- Modello

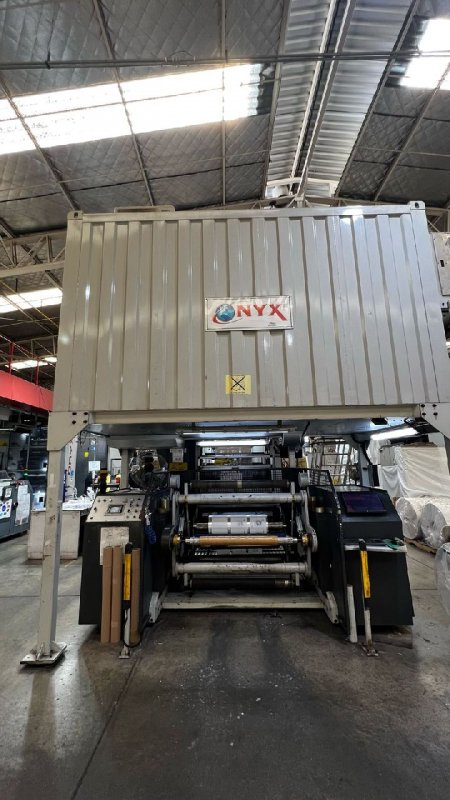

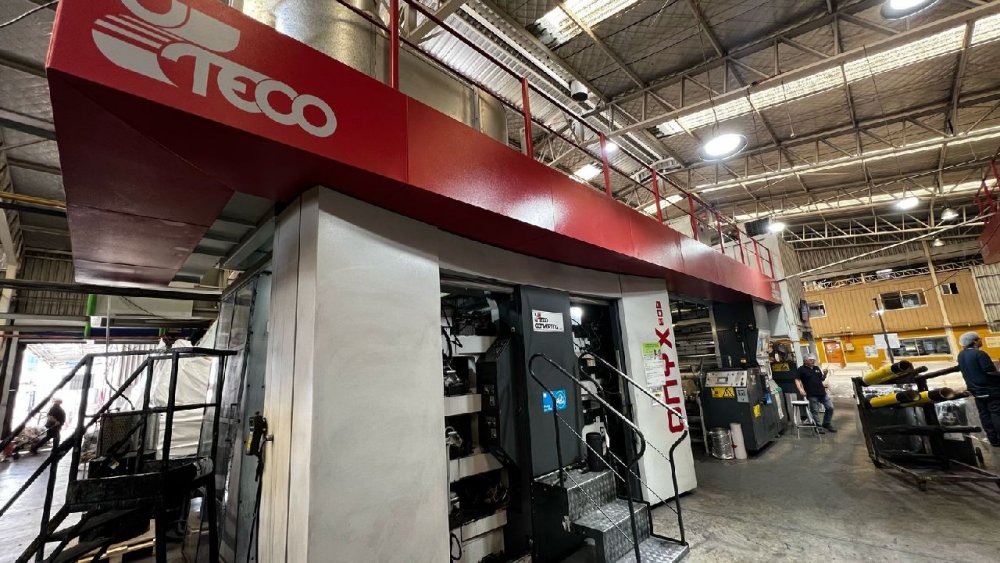

- ONYX 808
- Year
- 2013
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Automatic Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 gas burners, 2 zones with independent ventilation
- Videocamera
- Yes Grafikontrol with defect control
- Corona treatment
- No
- Web guides
- FIFE
- Vyscosity control
- yes Inkspec
- Washing system
- yes automatic
- Inking system
- Chamber doctor blades - pneumatic pumps
- Anilox
- 11 approx.
| Machine Code | FL1153 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2013 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Automatic Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 gas burners, 2 zones with independent ventilation |
| Videocamera | Yes Grafikontrol with defect control |
| Corona treatment | No |
| Web guides | FIFE |
| Vyscosity control | yes Inkspec |
| Washing system | yes automatic |
| Inking system | Chamber doctor blades - pneumatic pumps |
| Anilox | 11 approx. |
UTECO CRYSTAL
-
Machine Code: FL1117
-
Year: 2018
-
Web width (mm): 1050
CARINT Discovery
-
Machine Code: FL1133
-
Year: 1999
-
Web width (mm): 1500
OFEM Colombus 7/806
-
Machine Code: FL1099
-
Year: 1998
-
Web width (mm): 1270
TCM Midi 50 - 114
-
Machine Code: FL0965
-
Year: 1998
-
Web width (mm): 1350
COMEXI FW2110
-
Machine Code: FL1148
-
Year: 2009
-
Web width (mm): 1220

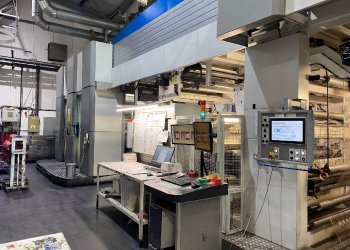

SOMA FLEX MIDI-127-8-EG
-
