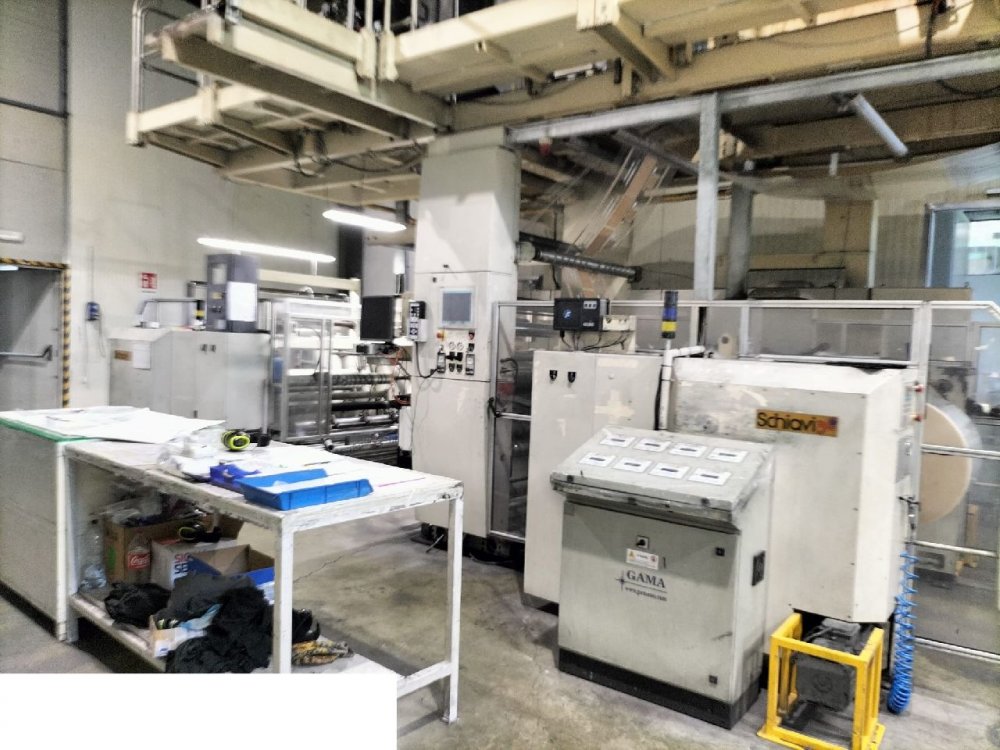

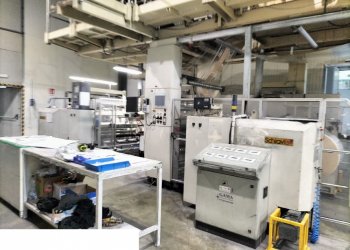

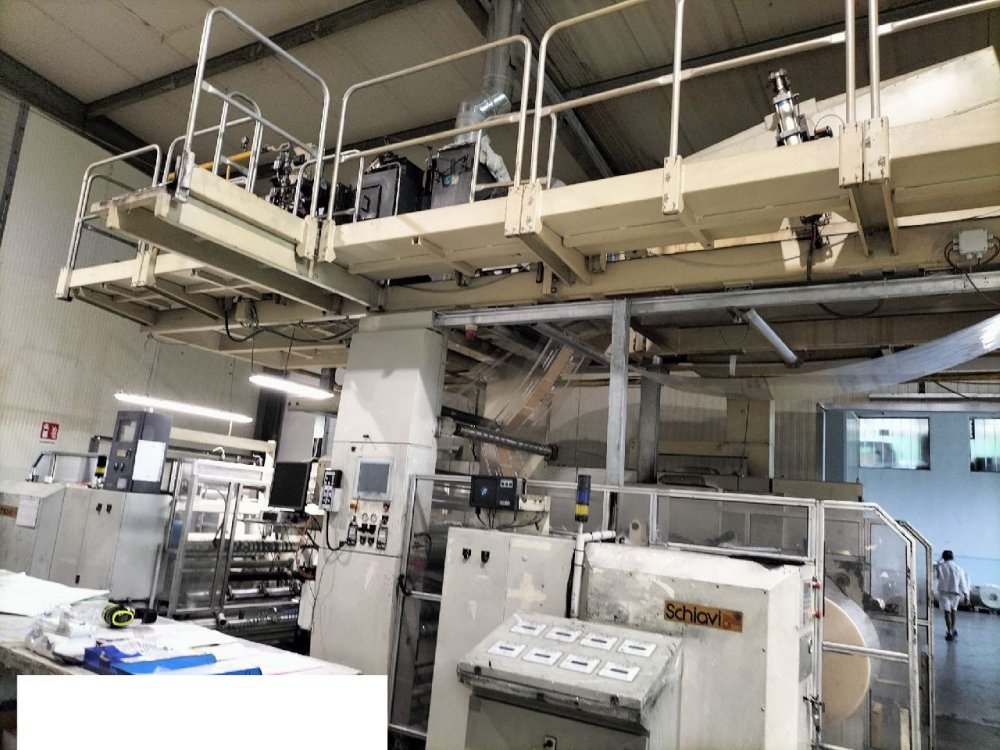

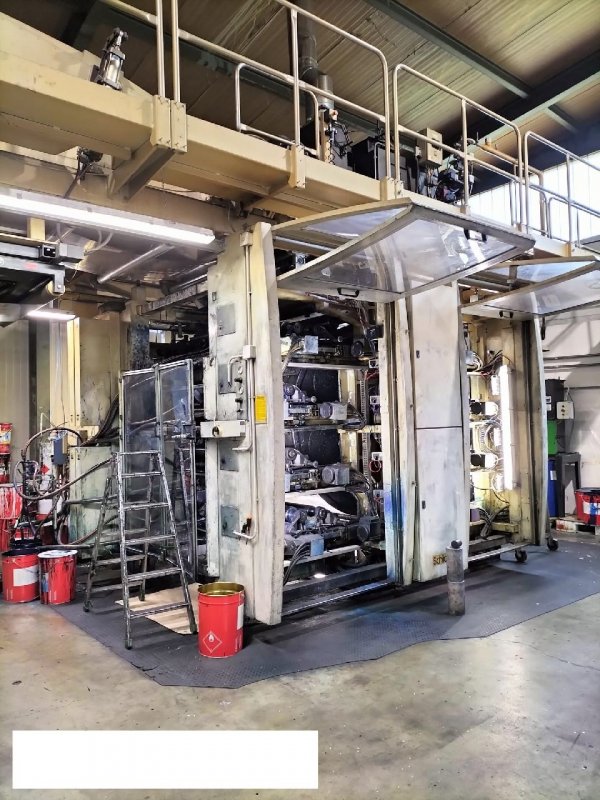

SCHIAVI SIGMA flexographic printing machine 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL1105
Manufacturer
SCHIAVI
Modello
SIGMA
Year
2002
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
320
Max print repeat (mm)
700
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800

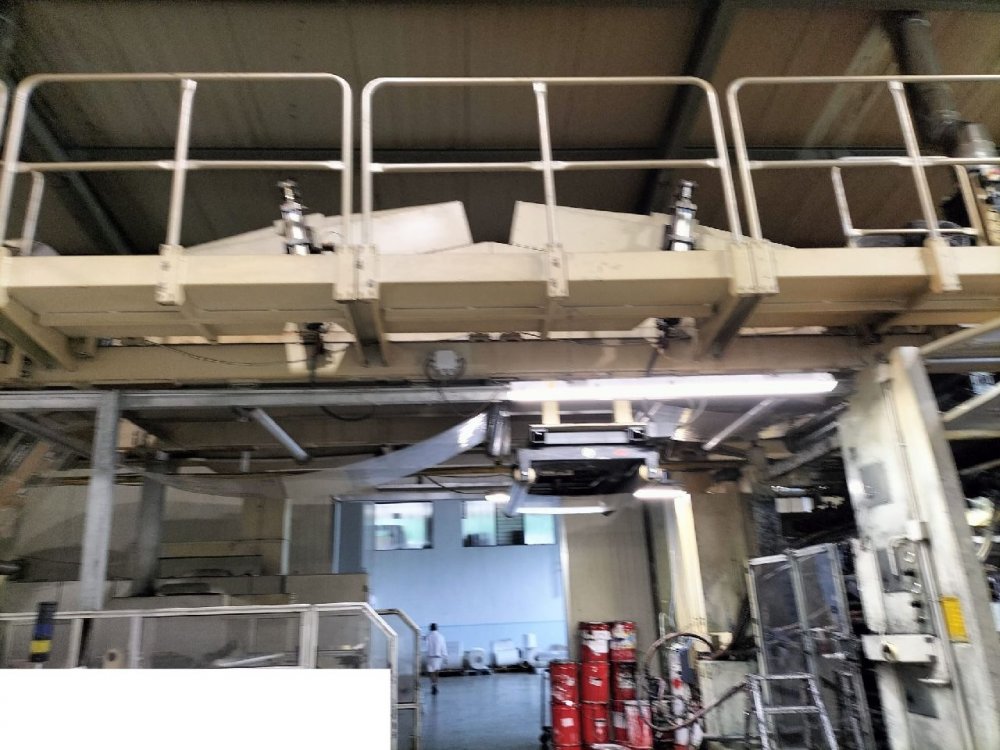

Drying
2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control

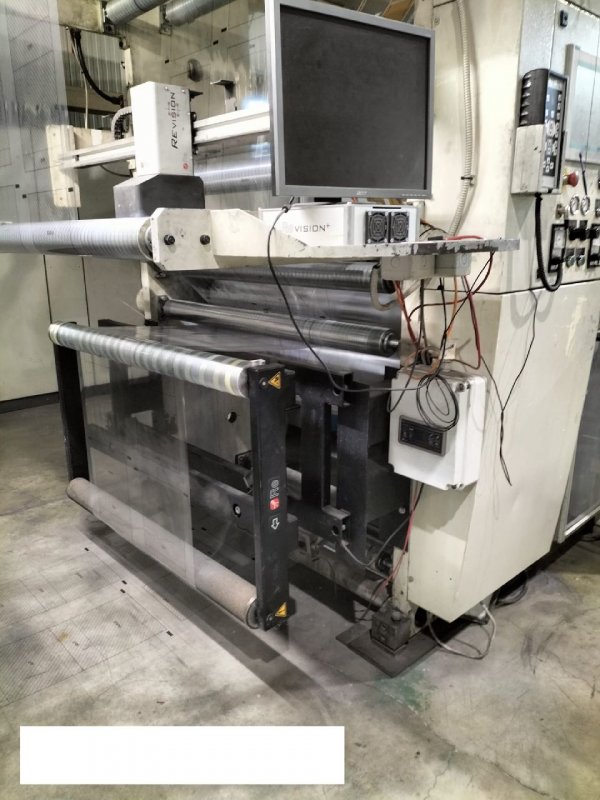

Videocamera
yes by RE
Web guides
Yes FIFE OPG in and out
Vyscosity control
Yes Automatic by Gama
Inking system
Closed chamber doctor blades
Anilox
12 ceramic anilox sleeves
Print Sleeves
4 sets
Machine Code FL1105
Manufacturer SCHIAVI
Modello SIGMA
Year 2002
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 320
Max print repeat (mm) 700
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control
Videocamera yes by RE
Web guides Yes FIFE OPG in and out
Vyscosity control Yes Automatic by Gama
Inking system Closed chamber doctor blades
Anilox 12 ceramic anilox sleeves
Print Sleeves 4 sets
