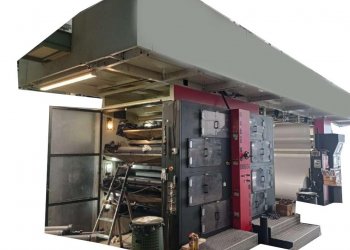

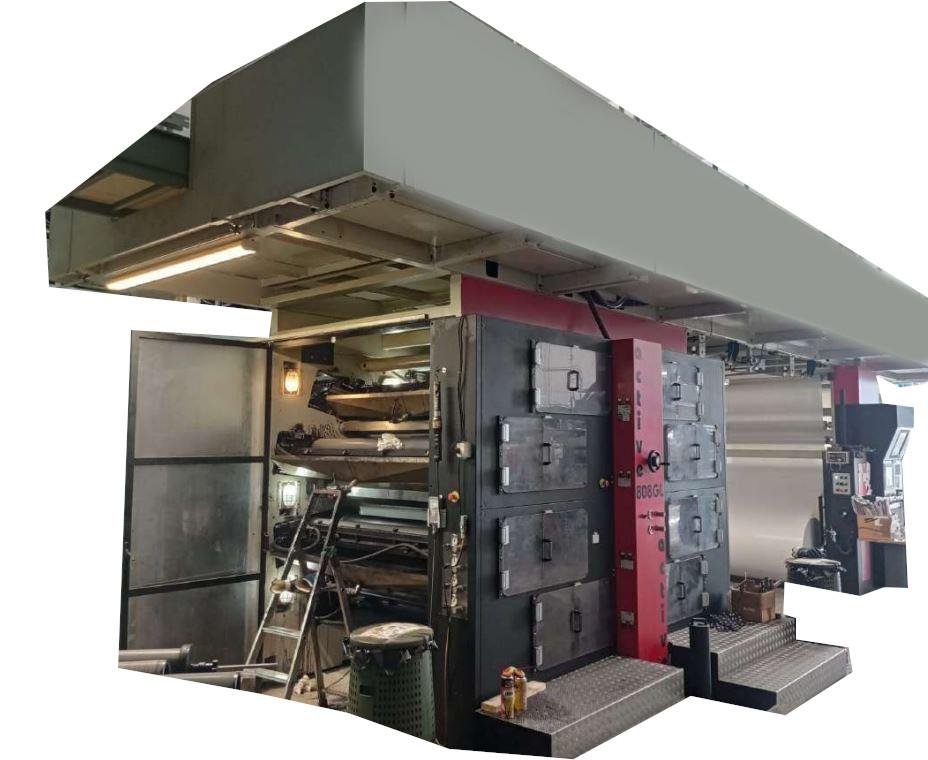

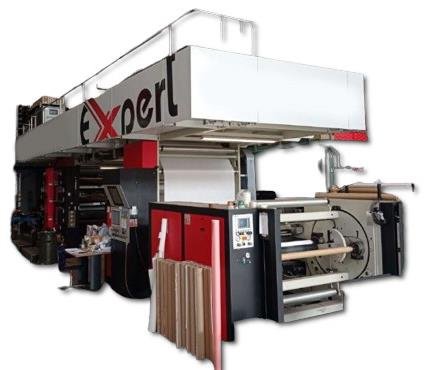

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1147
- Manufacturer
- EXPERT
- Modello
- ACTIVE 808-GL
- Year
- 2012
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

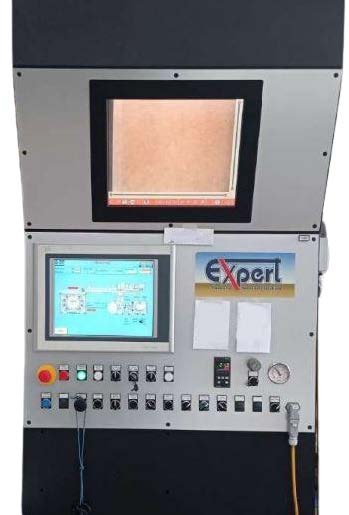

- Computer supervision
- Yes
- Web width (mm)
- 1650
- Print width (mm)
- 1600
- Min print repeat (mm)
- 440
- Max print repeat (mm)
- 850

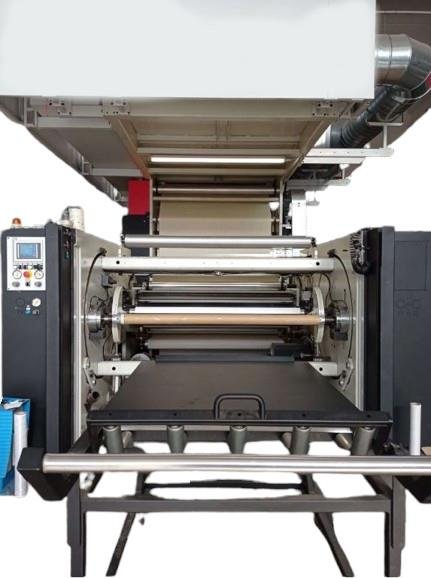

- Unwinder type
- Single position
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , four fans , Gas burner
- Videocamera
- BST
- Washing system
- Yes semiiautomatic
- Inking system
- Water Based
- Anilox
- 8x 160L/cm -vol5, 2x 140L/cm -vol8, 2x 120L/cm -vol9,2
- Note
- Mechanical speed max. 250 m/min Web tension 50 to 600 N Materials : Paper 20 g/m2 upto 50 g/m2, Transfer paper
| Machine Code | FL1147 |
| Manufacturer | EXPERT |
| Modello | ACTIVE 808-GL |
| Year | 2012 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1650 |
| Print width (mm) | 1600 |
| Min print repeat (mm) | 440 |
| Max print repeat (mm) | 850 |
| Unwinder type | Single position |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , four fans , Gas burner |
| Videocamera | BST |
| Washing system | Yes semiiautomatic |
| Inking system | Water Based |
| Anilox | 8x 160L/cm -vol5, 2x 140L/cm -vol8, 2x 120L/cm -vol9,2 |
| Note | Mechanical speed max. 250 m/min Web tension 50 to 600 N Materials : Paper 20 g/m2 upto 50 g/m2, Transfer paper |
