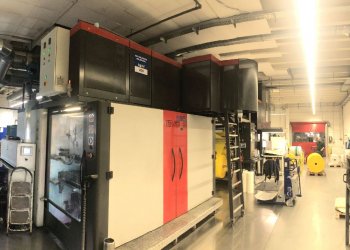

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1146
- Manufacturer
- KBA FLEXOTECNICA
- Modello
- EVO XDS 100
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8 + 0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 280
- Max print repeat (mm)
- 800
- Unwinder type
- Single
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones - 4 fans final drying tunnwl -electric heaters
- Videocamera
- BST
- Corona treatment
- AFS
- Web guides
- yes in and out
- Vyscosity control
- NO
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades and ceramic anilox sleeves
- Anilox
- 19
- Print Sleeves
- 218 ( 179 for plates 1.14 mm and 39 for plates 2.54 mm )
- Note
- Materials : OPP 20 - 40 my HDPE 30 - 150 my LDPE 30 - 200 my CPP 30 - 90 my OPTION : DESBA TEC - destillation unit for the waste liquids from the cleaning unit of the press Machine is well maintained and in a good condition , average printing speed 280 - 300 m/min.
| Machine Code | FL1146 |
| Manufacturer | KBA FLEXOTECNICA |
| Modello | EVO XDS 100 |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8 + 0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 280 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones - 4 fans final drying tunnwl -electric heaters |
| Videocamera | BST |
| Corona treatment | AFS |
| Web guides | yes in and out |
| Vyscosity control | NO |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades and ceramic anilox sleeves |
| Anilox | 19 |
| Print Sleeves | 218 ( 179 for plates 1.14 mm and 39 for plates 2.54 mm ) |
| Note | Materials : OPP 20 - 40 my HDPE 30 - 150 my LDPE 30 - 200 my CPP 30 - 90 my OPTION : DESBA TEC - destillation unit for the waste liquids from the cleaning unit of the press Machine is well maintained and in a good condition , average printing speed 280 - 300 m/min. |
