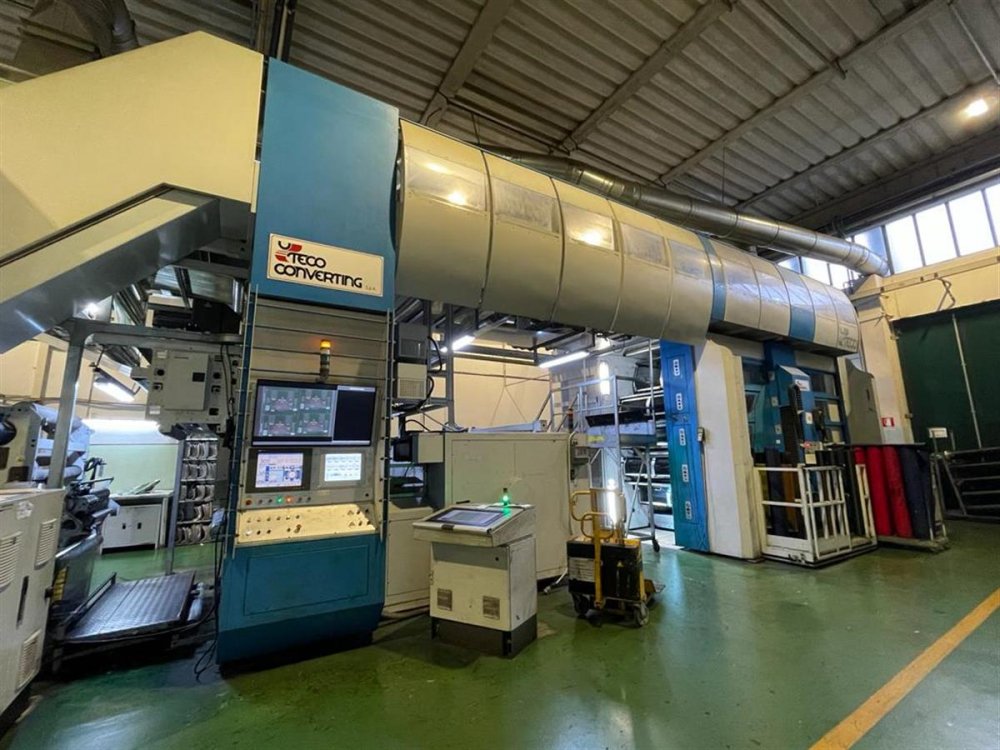

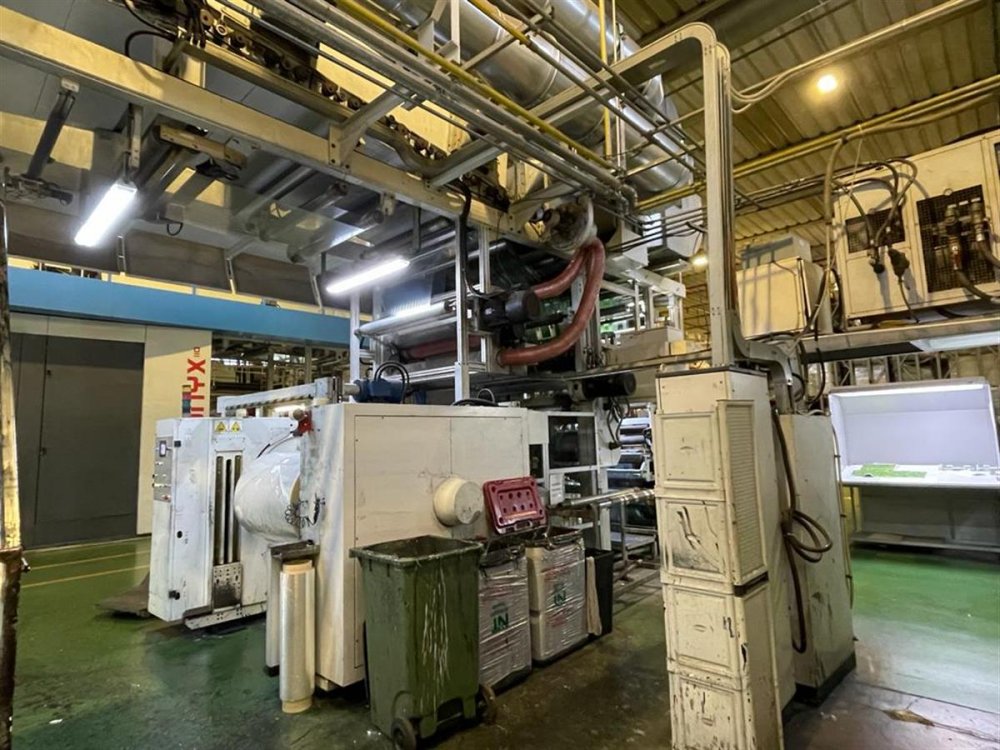

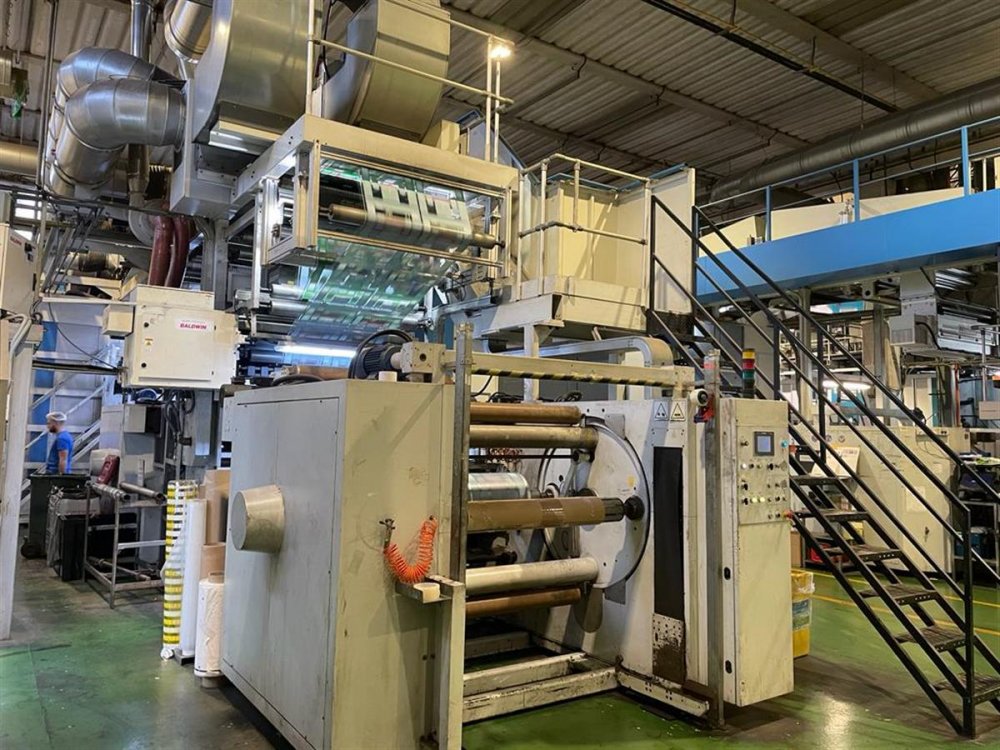

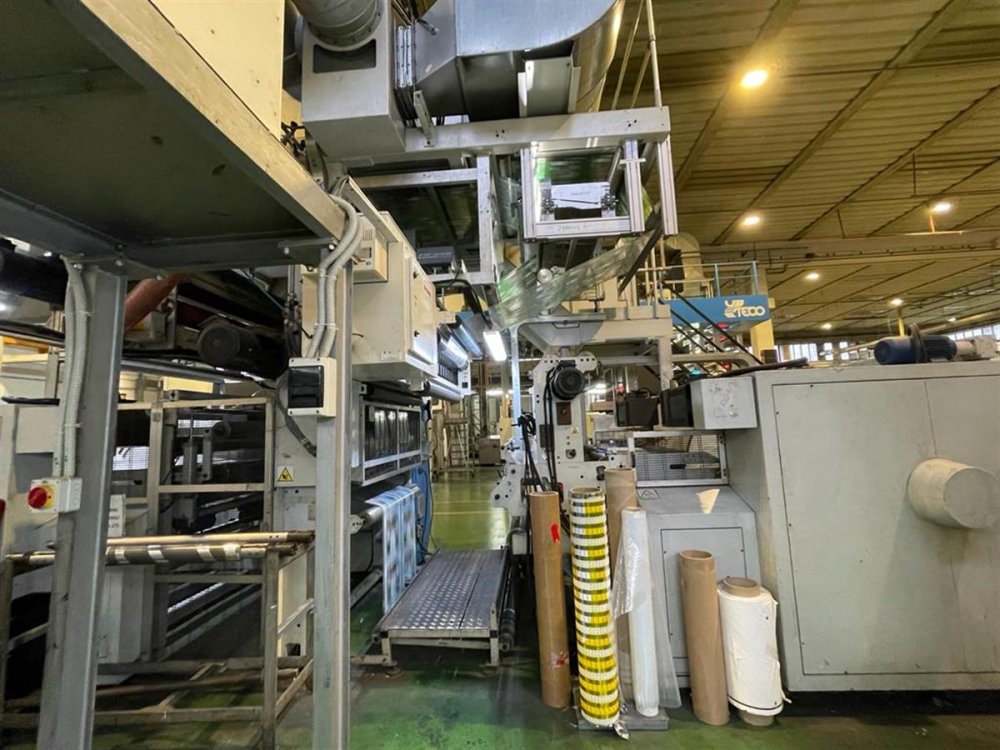

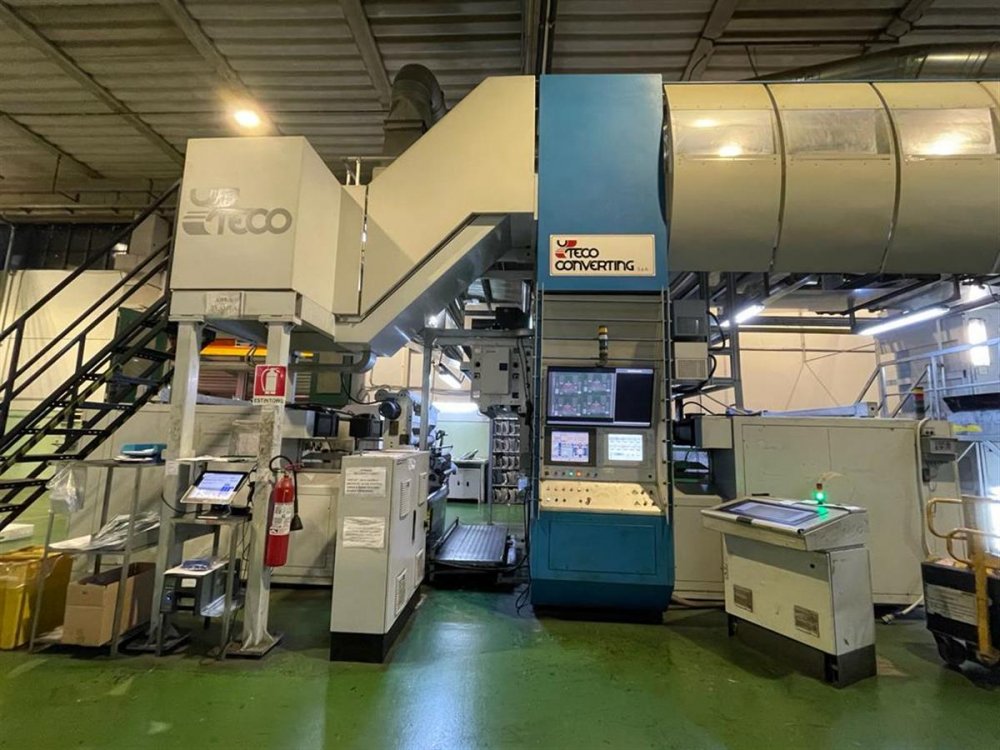

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1012
- Manufacturer
- UTECO
- Modello
- DIAMOND HP 108
- Year
- 2009
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 850
- Unwinder type
- Turret Automatic non stop
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic non stop
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , double tunnel 2x 3 mt , 2 gas burners . Automatic air recirculation system with LEL control
- Videocamera
- Yes BST
- Corona treatment
- Yes driven
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- YES
- Inking system
- Closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
| Machine Code | FL1012 |
| Manufacturer | UTECO |
| Modello | DIAMOND HP 108 |
| Year | 2009 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret Automatic non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , double tunnel 2x 3 mt , 2 gas burners . Automatic air recirculation system with LEL control |
| Videocamera | Yes BST |
| Corona treatment | Yes driven |
| Web guides | Yes in and out |
| Vyscosity control | Yes |
| Washing system | YES |
| Inking system | Closed chamber doctor blades |
| Anilox | 15 ceramic anilox sleeves |
